EngineMaintenance
ServicingtheAirCleaner
Note:Checktheltersmorefrequentlyifoperating
conditionsareextremelydustyorsandy.
RemovingtheAirFilter
ServiceInterval:Every250hours
1.DisengagethePTO,movethemotioncontrollevers
totheneutrallockedpositionandsettheparking
brake.
2.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Releasethelatchesontheaircleanerandpulltheair
cleanercoveroffoftheaircleanerbody(Figure32).
4.Cleantheinsideoftheaircleanercoverwith
compressedair.
5.Gentlyslidethelteroutoftheaircleanerbody
(Figure32).Avoidknockingthelterintotheside
ofthebody.
6.Inspectthelterfordamagebylookingintothe
lterwhileshiningabrightlightontheoutsideof
thelter.Holesinthelterwillappearasbright
spots.Ifthelterisdamageddiscardit.

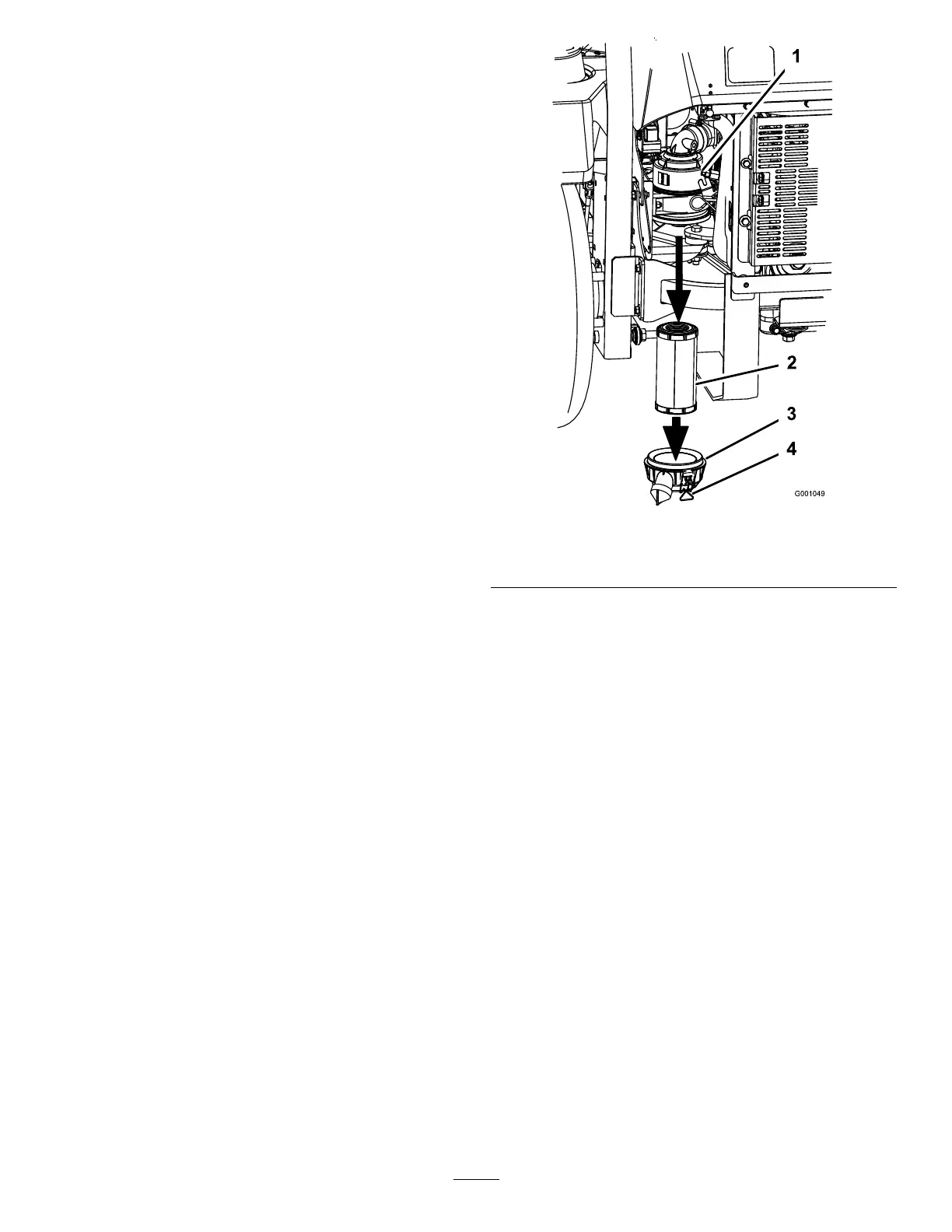

Figure32
1.Airlterbody
3.Aircleanercover
2.Airlter
4.Latches
InstallingtheAirFilter
1.Ifinstallinganewlter,checkthelterforshipping
damage.Donotuseadamagedlter.
2.Carefullyslidethelterintothelterbody
(Figure33).Ensurethatitisfullyseatedbypushing
ontheouterrimofthelterwhileinstallingit.
Important:Donotpressonthesoftinsidearea
ofthelter.
3.Installtheaircleanercoverandsecurethelatches
(Figure33).
