Toro 74264TE - Mower Deck Maintenance; Leveling the Mower at Three Positions

MowerDeck
Maintenance
LevelingtheMoweratThree
Positions
SettingUptheMachine
1.Positionmoweronaatsurface.
2.DisengagethePTO,movethemotioncontrollevers
totheneutrallockedpositionandsettheparking
brake.
3.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
4.Checktirepressureofallfourtires.Ifneeded,adjust
to13psi(90kPa)
5.Lowerthemowertothe3inch(76mm)height-of-cut
position.
6.Inspectthefourchains.Thechainsneedtohave
tension.
•Ifonerearchainisloose,lower(loosen)thefront
supportarmonthesameside.RefertoAdjusting
theFront-to-RearMowerPitch.
•Ifonefrontchainisloose,raise(tighten)thefront
supportarmforthatchain.RefertoAdjustingthe
Front-to-RearMowerPitch.
LevelingtheMowerSide-to-Side
1.Positiontherightbladeside-to-side(Figure73).

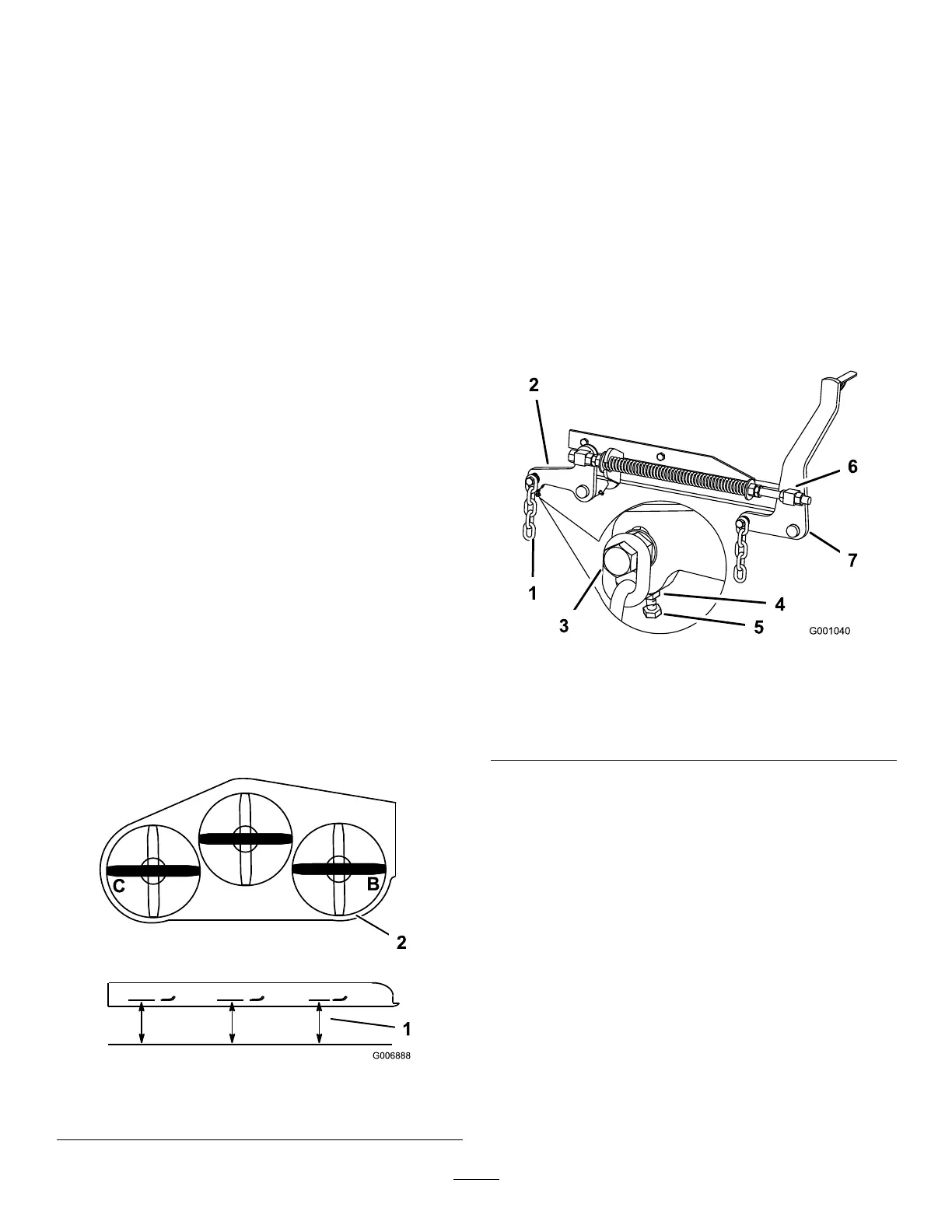

Figure73
1.Measureherefromblade
tohardsurface
2.MeasureatBandC
2.MeasuretherightbladeattheBlocation,froma
levelsurfacetothecuttingedgeofthebladetip
(Figure73).
3.Recordthismeasurement.Thismeasurementneeds
tobe3-1/8to3-1/4inches.
4.Positiontheleftbladeside-to-side(Figure73).
5.MeasuretheleftbladeattheClocation(Figure73),
fromalevelsurfacetothecuttingedgeoftheblade
tip.
6.Recordthismeasurement.Thismeasurementneeds
tobe3-1/8to3-1/4inches(80to83mm).
7.IfthemeasurementsatpositionsBorCarenot
correct,loosentheboltattachingtherearchainto
therearsupportarm(Figure74).
Figure74
1.Rearchain5.Adjustmentbolt
2.Rearsupportarm6.Frontswivel
3.Bolt7.Frontsupportarm
4.JamNut
8.Loosenthejamnutundertherearsupportarmand
adjusttheadjustmentbolttogetameasurementof
3-1/8to3-1/4inches(80to83mm)(Figure74).
Note:Itisrecommendedthatbothsidesofthe
mowerareadjustedthesamedistance.
9.Tightenthejamnutundertherearsupportarm
andtightentheboltsecuringthechaintotherear
supportarm.
10.Adjusttheoppositesideifneeded.
AdjustingtheFront-to-RearMower
Pitch
1.Positiontherightbladefront-to-rear(Figure75).
2.MeasuretherightbladeattheAlocation,from
alevelsurfacetothecuttingedgeoftheblade
tip(Figure75).
53
