Greensmaster 3150Hydraulic System Page 4 -- 78
Cutting Reel Motor Service
1. Rear cover
2. Drive gear
3. Seal
4. Tab washer
5. Pressure seal
6. Back--up ring
7. O--ring
8. Body
9. Idler gear
10. Cap screw
11. Front flange
12. Washer (if equipped)

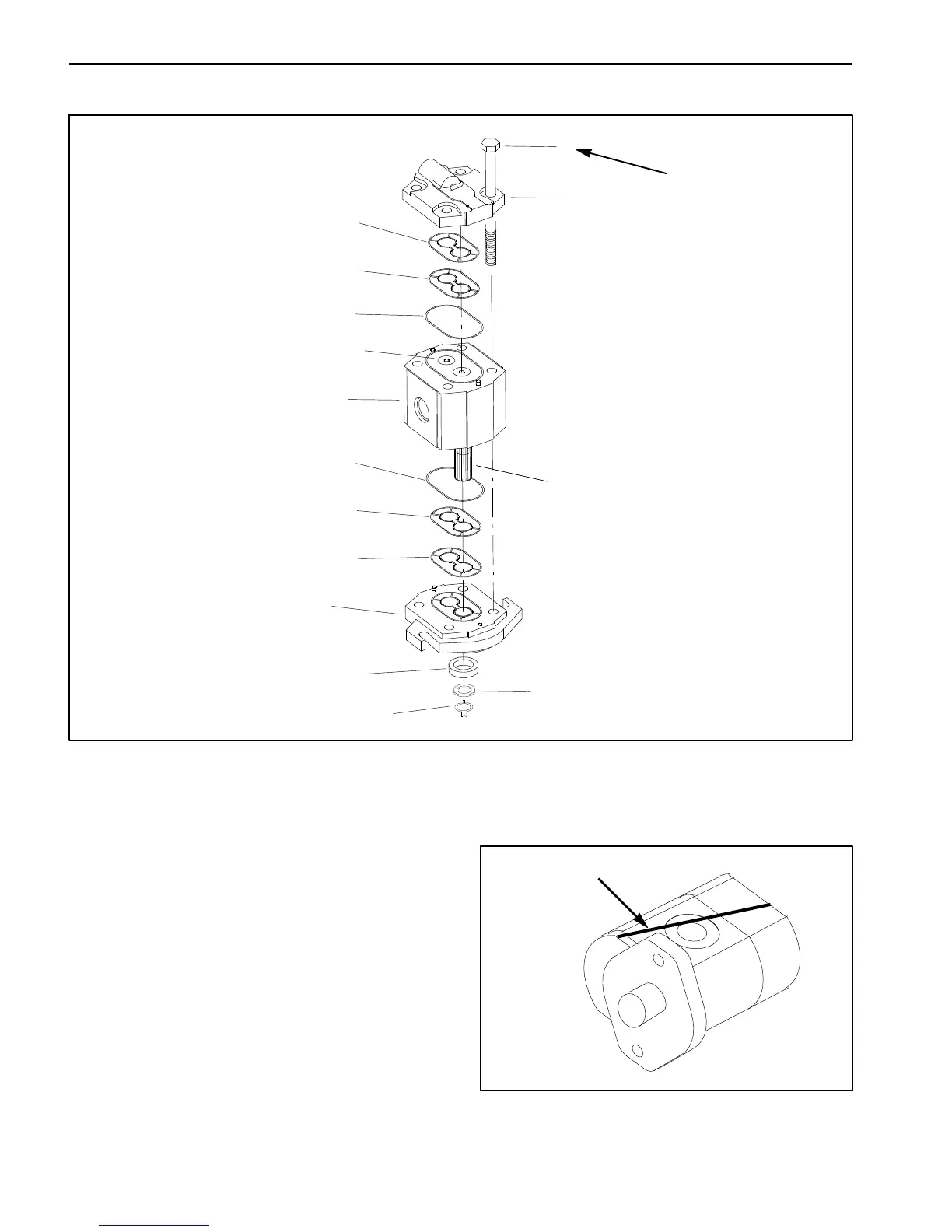

Figure 57
(24to32N--m)
215 to 280 in--lb
7
4
3
1
2
5
6
9
10
11
8
5
6
7
12
Disassembly
1. Plug motor ports and clean the outside of the motor
thoroughly. After cleaning, remove plugs and drain any
oil out of the motor.
2. Useamarkerorscribetomakeadiagonal mark
across the front flange, body and rear cover for reas-
sembly purposes (Fig. 58).
Figure 58
DIAGONAL MARK
