Greensmaster 3150Hydraulic System Page 4 -- 102

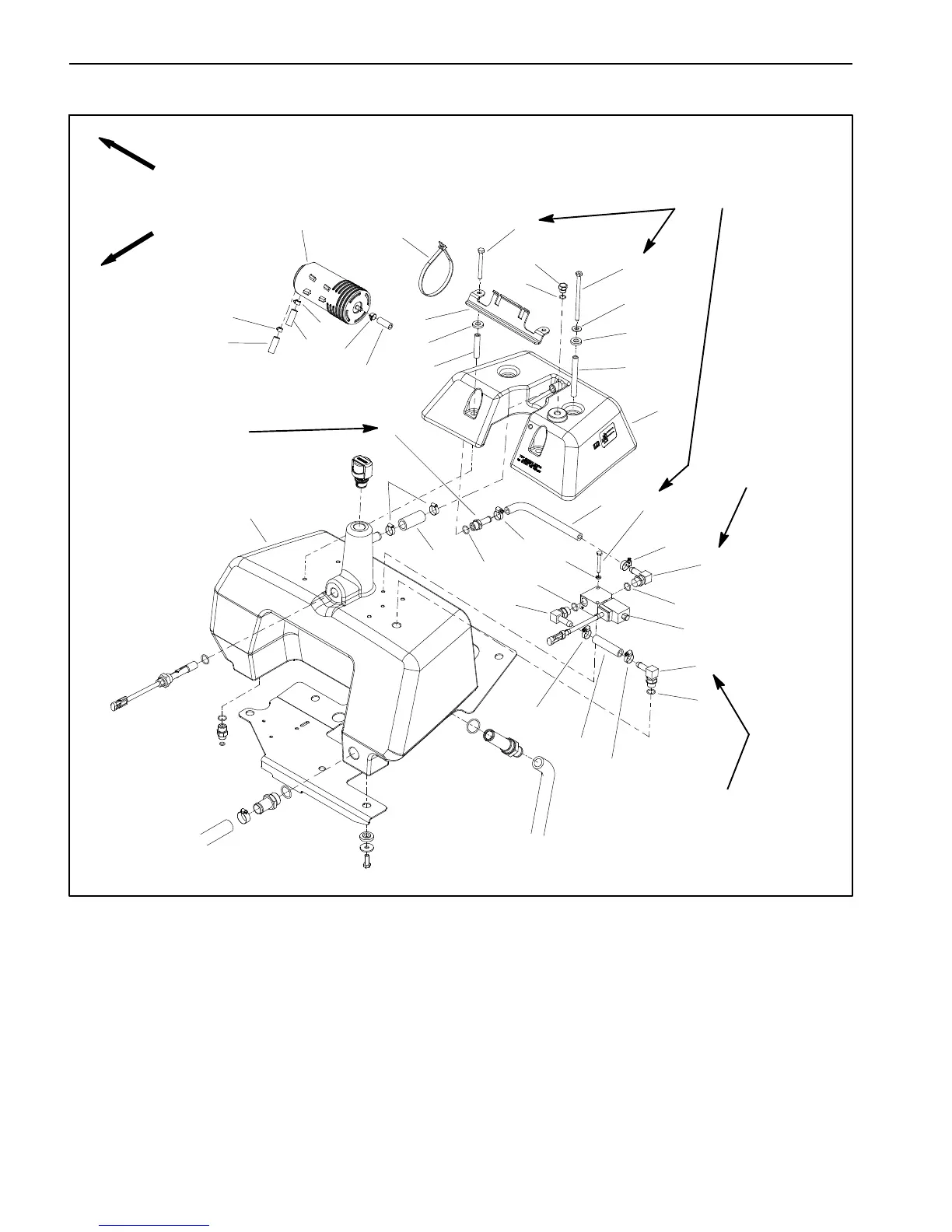

Leak Detector
1. Hose clamp (4 used)
2. O--ring
3. O--ring
4. Hydraulic reservoir
5. Hose (to tee fitting)
6. Straight barb fitting
7. Hose clamp
8. Canister bracket
9. Hose clamp (2 used)
10. Valve hose
11. Short spacer (2 used)
12. Neoprene washer (4 used)
13. Flat washer (2 used)
14. Cap screw (2 used)
15. Leak detector tank
16. Plug
17. Cap screw (2 used)
18. Long spacer (2 used)
19. Carbon canister
20. Cable tie (2 used)
21. 90
o
barb fitting
22. Cap screw (2 used)
23. Lock washer (2 used)
24. Solenoid valve assembly
25. Overflow hose
26. Tank valve hose
27. Hose clamp
28. Purge hose assembly
29. Hose clamp
30. Vent hose (to fuel tank vent)
31. 90
o
barb fitting (2 use d)
Figure 76
17 to 21 ft--lb
(23to28N--m)
30 to 60 in--lb
(3.4 to 6.7 N--m)
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
4
21
22
23
24
25
26
27
28
29
30
12
31
31
1
1
1
2
2
2
Antiseize
Lubricant
17 to 21 ft--lb
(23to28N--m)
40 to 50 ft--lb
(55 to 67 N--m)
FRONT
RIGHT
NOTE: See Turf Guardiant Leak Detector System in
Chapter 5 -- Electrical System for leak detector opera-
tion information.
