AxleShafts(4-WheelDriveAxle)

Thefollowingproceduresassumethe4-wheeldriverearaxleassemblyhas

beenremovedfromthemachine.

RemovingtheAxleShaft(4-WheelDriveAxle)

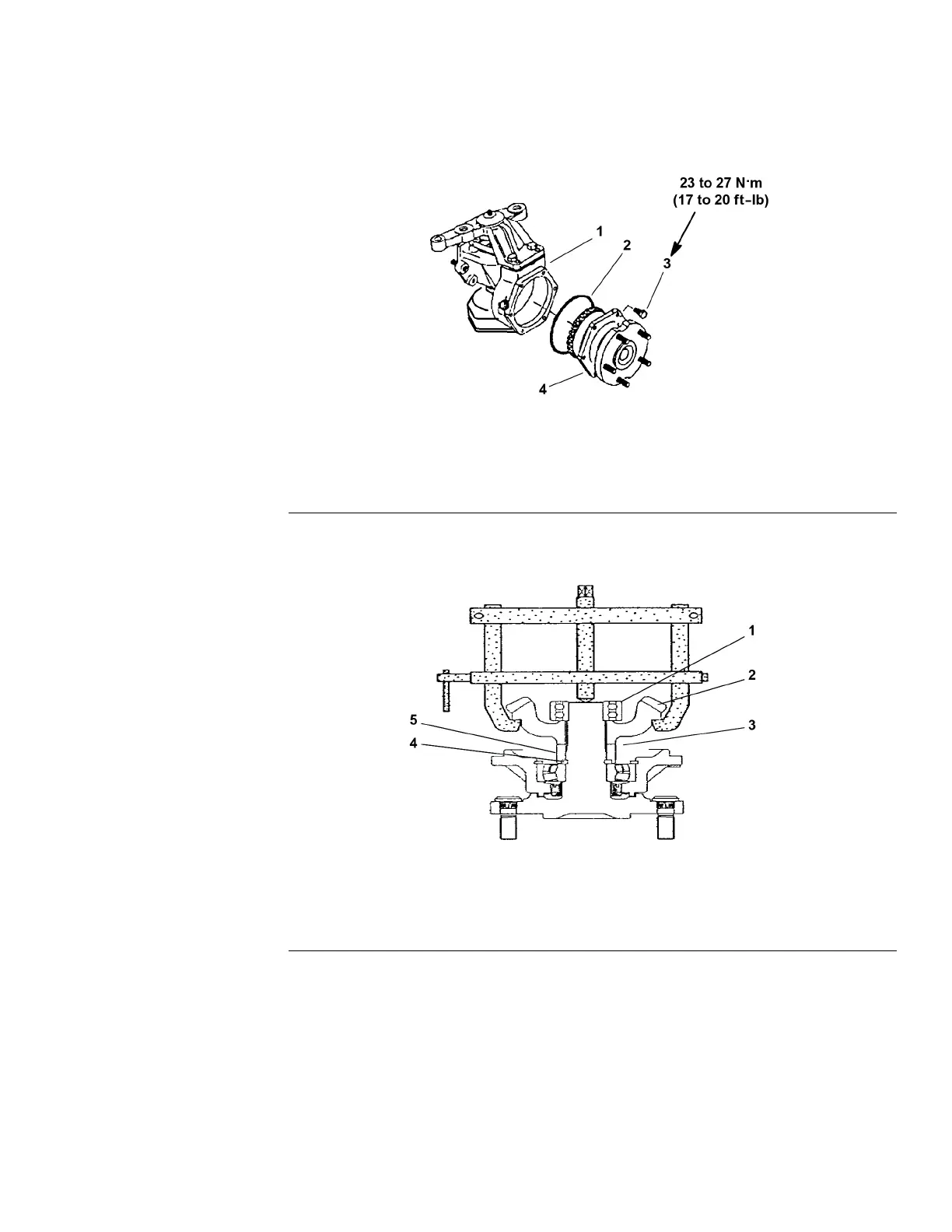

g226470

Figure268

1.Axlecase3.Mountingscrew

2.O-ring

4.Axlecoverassembly

1.Removetheaxlecovermountingscrews,andremovetheaxlecoverfrom

theaxlecaseasanassembly(Figure268).

g226471

Figure269

1.Bearing

3.Shims5.Spacer

2.Bevelgear4.Retainingring

2.Useabearingpullertoremovethebearingandbevelgear(Figure269).

3.Removetheshims,spacer,andretainingring.Drivetheaxleoutofthe

bearingandcover.Removeanddiscardtheaxleshaftseal.

4.Inspectallgears,shafts,bearings,spacers,andcasesfordamageandwear.

Replacethecomponentsasnecessary.

Groundsmaster

3280-D/3320

Page8–59

DriveAxles:ServiceandRepairs

05138SLRevB
