UsingtheCylinderLock
InstallingtheCylinderLock
1.Parkthemachineonalevelsurface,move
themotion-controlleverstotheNEUTRAL-LOCK
position,engagetheparkingbrake,andfully
raisethehopper.
2.Removethe2cotterlesspinssecuringthe
cylinderlocktothemachine.

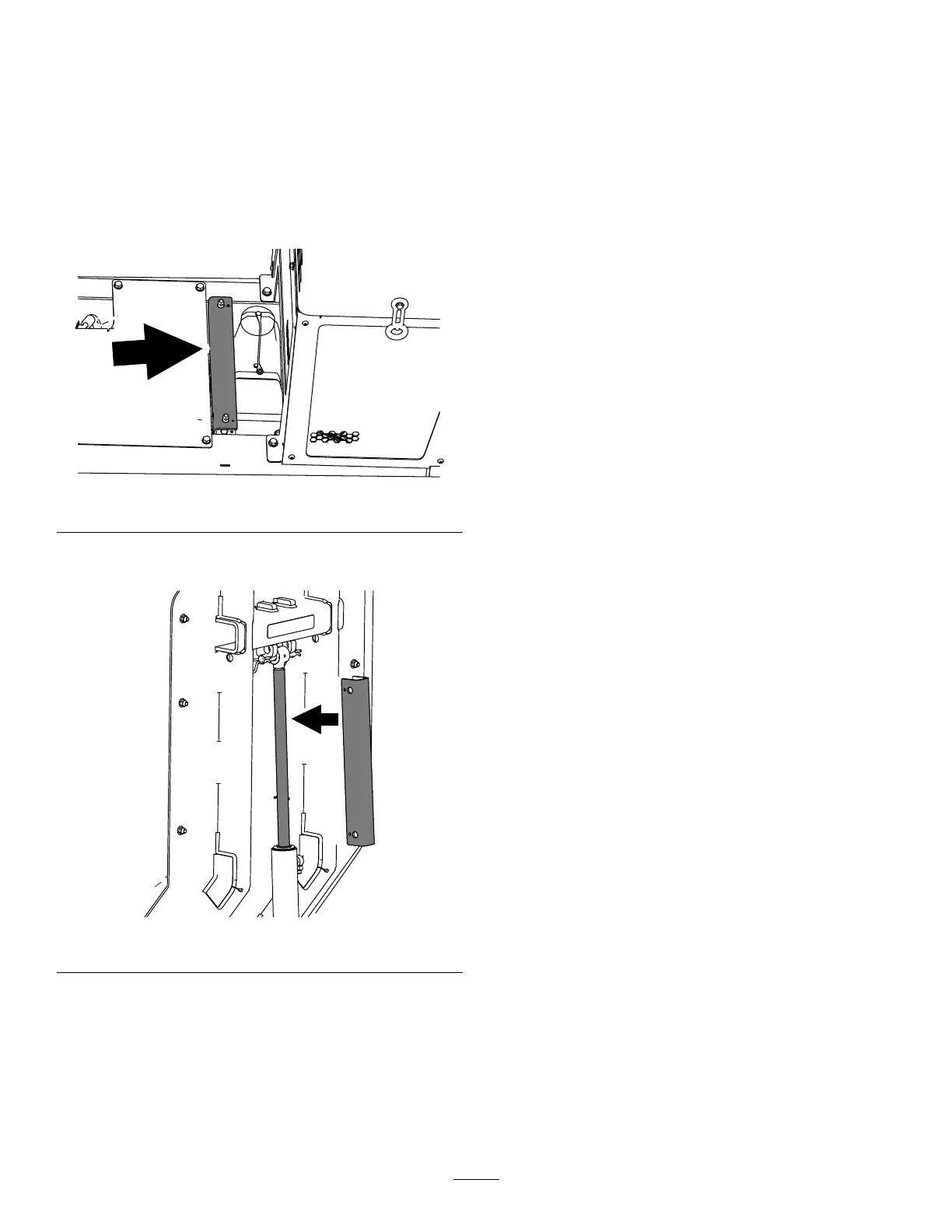

g324733
Figure19
3.Slidethecylinderlockoverthelift-cylinderrod
andsecurewiththecotterlesspins.
g324856
Figure20
RemovingandStoringthe
CylinderLock
Important:Removethecylinderlockfromthe
lift-cylinderrodandfullysecureitinthestorage
positionbeforeoperatingthemachine.
1.Startthemachine.
2.Fullyraisethehopper.
3.Shutofftheengine.
4.Removethecotterlesspinssecuringthecylinder
lock.
5.Placethecylinderlockonthepostsinsidethe
machineframeandsecurewiththecotterless
pins.
6.Lowerthehopper.
