Toro MB TX 2500S User Manual

g189559

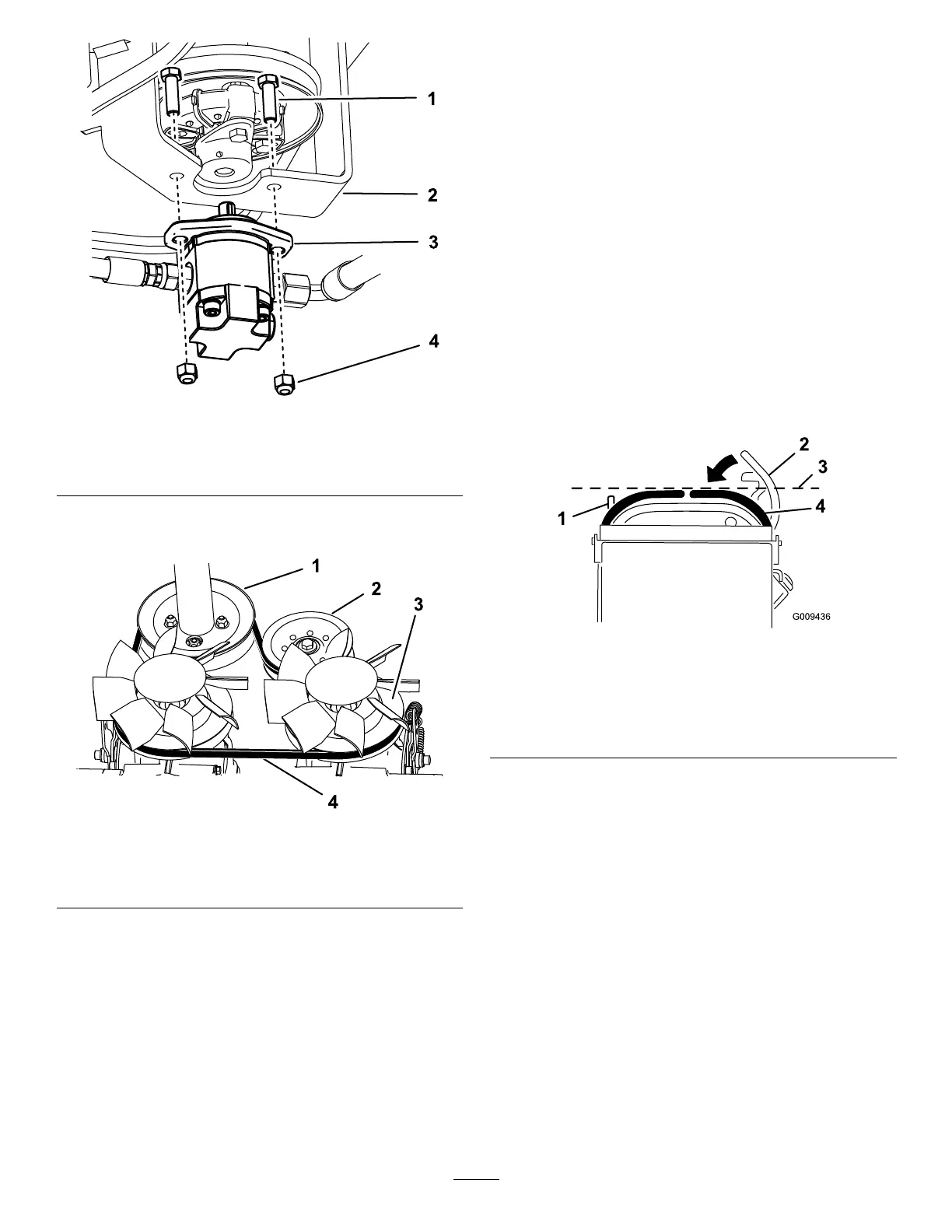

Figure44
1.Bolt(2)3.Gearpump
2.Pumpmount
4.Nut(2)
8.Removethedrivebeltfromtheenginepulley
and2transmissionpulleys.
g189571
Figure45
1.Enginepulley
3.Transmissionpulley(2)
2.Idlerpulley
4.Belt
9.Routethenewbeltaroundtheenginepulleyand
2transmissionpulleys(Figure45).
10.Installthegearpump(Figure44).
11.Installtheextensionspring(Figure42).
12.Installthefueltank;refertoRemovingtheFuel
Tank(page27).
13.Raisethecushion.
ControlsSystem
Maintenance
Adjustingthe
Motion-ControlLevers
Ifthemotion-controlleversdonotalignhorizontally,
adjusttherightsidemotion-controllever.
1.Parkthemachineonalevelsurface,lowerthe
hopper,engagetheparkingbrake,shutoffthe
engine,andremovethekey.
2.Pushthemotion-controlleversdownoutofthe
NEUTRAL-LOCKposition(Figure46).
3.Checkiftherightmotion-controlleveraligns
horizontallywiththeleftmotion-controllever
(Figure46).
g009436
Figure46
1.Leftmotion-controllever3.Checkthehorizontal
alignmenthere
2.Rightmotion-controllever
intheNeutral-lockposition
4.Rightmotion-controllever
4.Toadjustthemotion-controllevershorizontally,
youmustadjustthecam.
5.Releasethecushionfromtherearofthe
machine.
6.Loosenthenutholdingthecam(Figure47).
32
