Toro MB TX 2500S User Manual

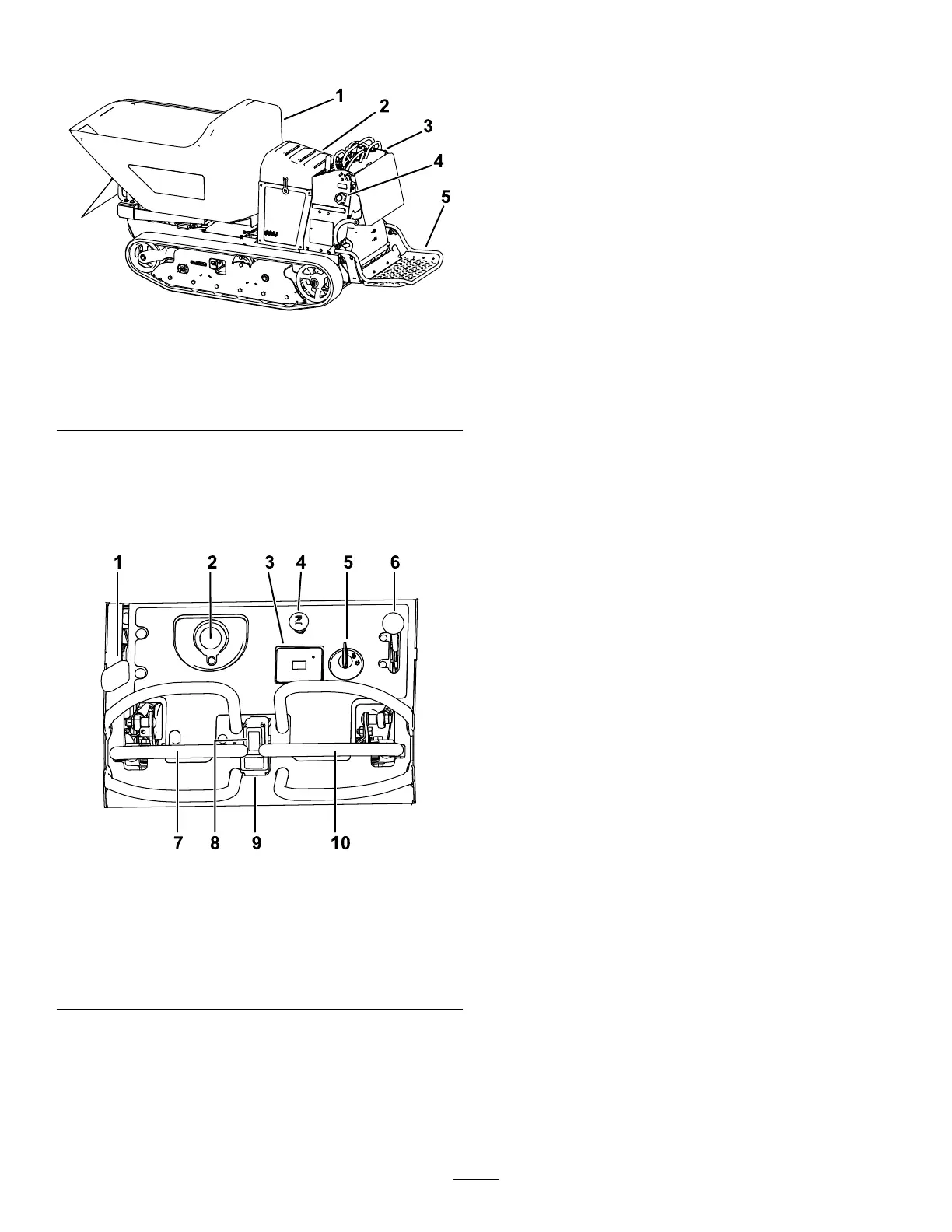

ProductOverview
g322676
Figure3
1.Hopper4.Fuel-tankcap
2.Hood
5.Operatorplatform
3.Controlpanel
Controls
Becomefamiliarwithallthecontrols(Figure4)before
youstarttheengineandoperatethemachine.
g322670
Figure4
1.Parking-brakelever6.Throttlelever
2.Hydraulic-tankcap
7.Leftmotion-controllever
3.Hourmeter8.Dumpswitch
4.Chokecontrol9.Swivelswitch
5.Keyswitch10.Rightmotion-controllever
ParkingBrakeLever
Toengagetheparkingbrake,pullbackthelever.
(Figure4).
Todisengagetheparkingbrake,pushthelever
forward.
HourMeter
Thehourmeterrecordsthenumberofhoursthe
enginehasoperated.Itoperateswhentheengine
isrunning.Usethesetimesforschedulingregular
maintenance(Figure4).
ChokeControl
Usethechoketostartacoldengine.Pullthechoke
knobuptoengageit.Pushthechokeknobdownto
disengageit(Figure4).
KeySwitch
Usethekeyswitchtostarttheengine(Figure4).The
switchhas3positions:OFF,RUN,andSTART.
ThrottleLever
ThethrottleleverisvariablebetweentheFASTand
SLOWpositions(Figure4).
Motion-ControlLevers
Usethemotion-controlleverstodrivethemachine
forwardandreverseandtoturneitherdirection
(Figure4).
DumpSwitch
Usetheverticalswitchtodumpandlowerthehopper.
Ifyouholdtheswitchdown0.2to1.3seconds,the
hopperfullylowersautomatically.
SwivelSwitch
Usethehorizontalswitchtoswivelthehoppertothe
leftandright.
8
