Toro TimeMaster 20200 - Adjusting the Self-Propel Drive Cable; Servicing the Blade-Drive System

AdjustingtheSelf-propelDrive
Cable
Wheneveryouinstallanewself-propelcableorifthe
self-propeldriveisoutofadjustment,adjusttheself-propel
drivecable.

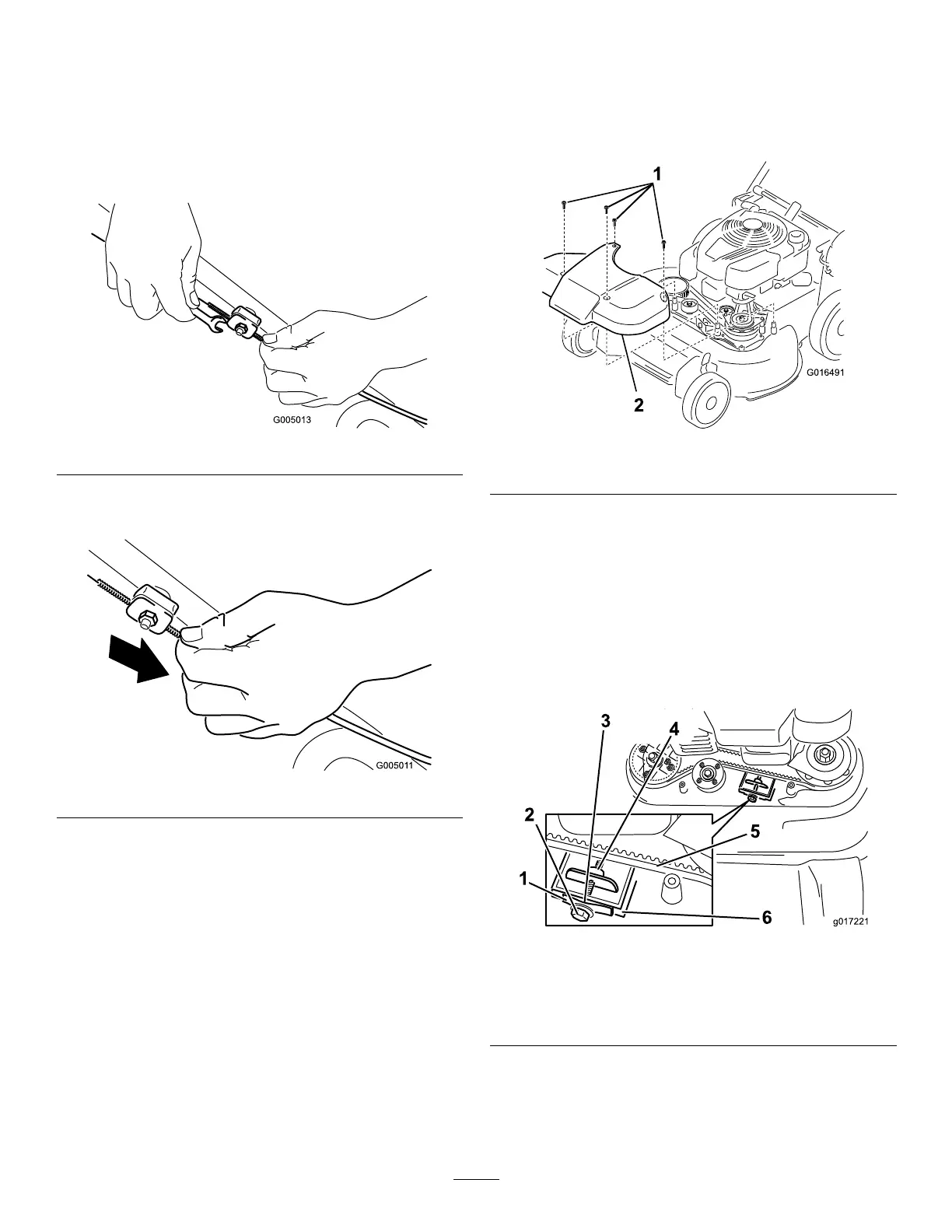

1.Loosenthecable-supportnut(Figure36).
Figure36
2.Pulldownthecablejacket(towardthemachine)until
thereisnoslackinthecable(Figure37).
Figure37
3.Tightenthenutonthecablesupport.
ServicingtheBlade-drive
System
ServiceInterval:Every50hours
1.Removetheblade-drivesystemcover(Figure38).
G016491
1
2
Figure38
1.Bolts
2.Cover
2.Brushorblowoutdebrisfromtheinsideoftheshield
andaroundalltheparts.
3.Holda0.010-inchfeelergauge,apieceofpaper,ora
notecardagainstthewallandslideitdownbehindthe
belttensionspring.
Note:Ifthereisavisiblegapbetweenthegaugeand
thespring,tightentheadjustingboltandthenutuntil
thepaperbarelyslidesfreelyinandoutofthegap
(Figure39).
g017221
2
1
3
4
5
6
Figure39
1.Belt-tensionspring4.Adjustingnut
2.Adjustingbolt5.Blade-drivebelt
3.Gap
6.Wall
Important:Donotovertightentheadjustingbolt.
Thiscoulddamagetheblade-drivebelt.
4.Installtheblade-drivesystemcoverthatyoupreviously
removed.
19
