11
7
Step
Parts needed for this step:
1 Left side bagger bracket
1 Right side bagger bracket
1 Bagger mounting bracket
10 Bolts, 3/8 x 1 inch
10 Flange nuts, 3/8 inch
8 Belleville washers, 3/8 inch
Installing the Bagger Brackets
Installing the Side Brackets
Important Do not tighten any bolts until both side
brackets and bagger mounting bracket are fit loose on the
machine. Refer to Tightening the Mounting Bolts, on
page 12.
1. Using the existing holes, install the side bagger bracket
to the side of the machine frame with 2 bolts
(3/8 x 1 inch), 2 flat washers (3/8 inch) and 2 flange
nuts (3/8 inch) (Fig. 11).
1
3
m–6742
6
2
5
4
1
2

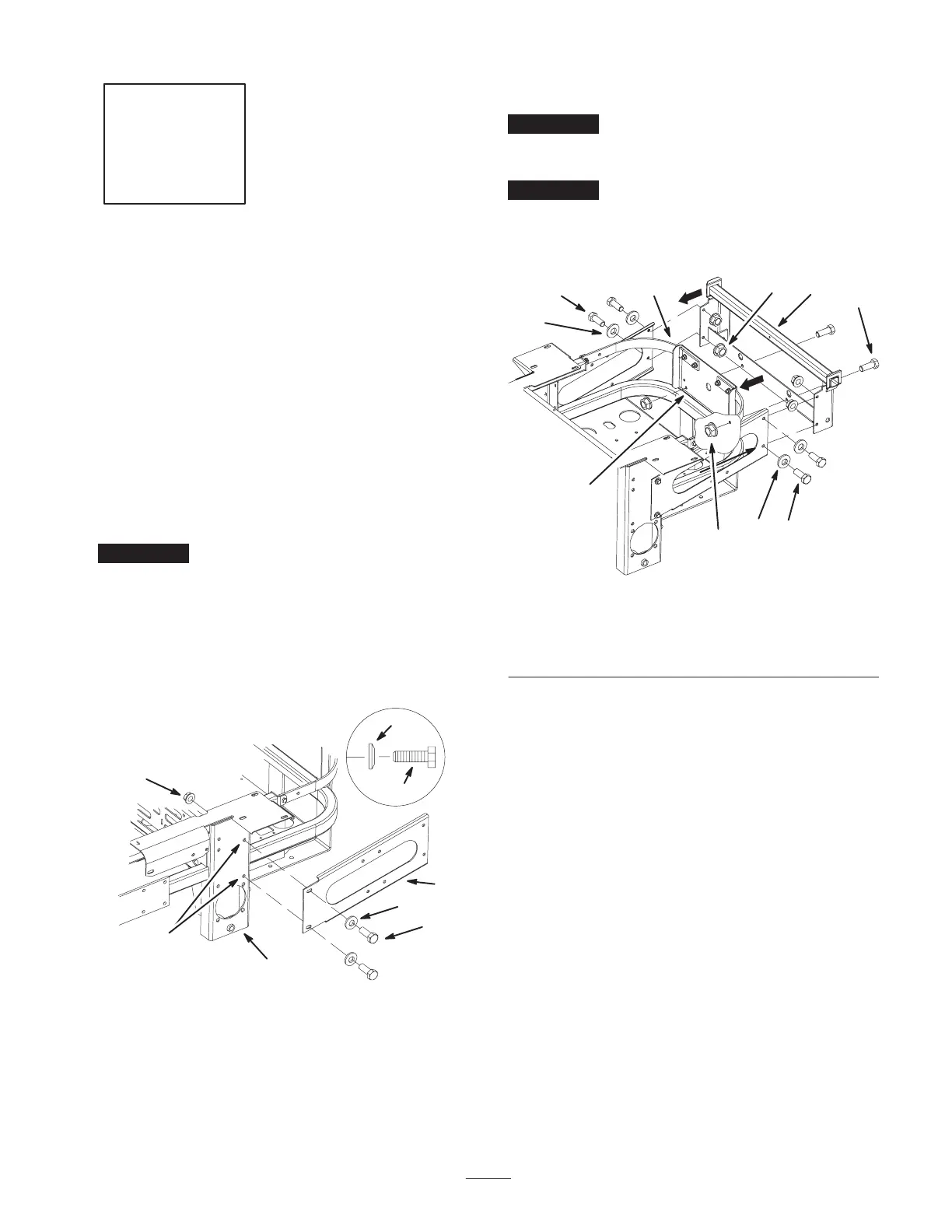

Figure 11
1. Bagger bracket-left side
shown
2. Bolt, 3/8 x 1 inch
3. Flange nut, 3/8 inch
4. Machine side frame
5. Existing hole
6. Belleville washer, 3/8 inch
2. Repeat the previous step for the opposite side.
Installing the Bagger Mounting Bracket
Important Do not tighten any bolts until both side
brackets and bagger mounting bracket are fit loose on the
machine.
Important Make sure the bagger mounting bracket is
installed in the position shown in Figure 12.
1. Remove the existing two bolts in the bottom of the
rear frame (Fig. 12).
6
2
2
1
2
m–6743
4
3
4
3
5
6
Figure 12
1. Bagger mounting bracket
2. Bolt, 3/8 x 1 inch
3. Flange nut, 3/8 inch
4. Belleville washer, 3/8 inch
5. Rear frame
6. Existing bolts located here
2. Install the bagger mounting bracket to the left and
right side bagger brackets with 4 bolts (3/8 x 1 inch),
4 Belleville washers (3/8 inch) and 4 flange nuts
(3/8 inch) (Fig. 12).
3. Install the bagger mounting bracket to the rear frame
of the machine with 2 bolts (3/8 x 1 inch) and 2 flange
nuts (3/8 in.) (Fig. 12).
