Step
Parts needed for this step:
• 1 Blower assembly

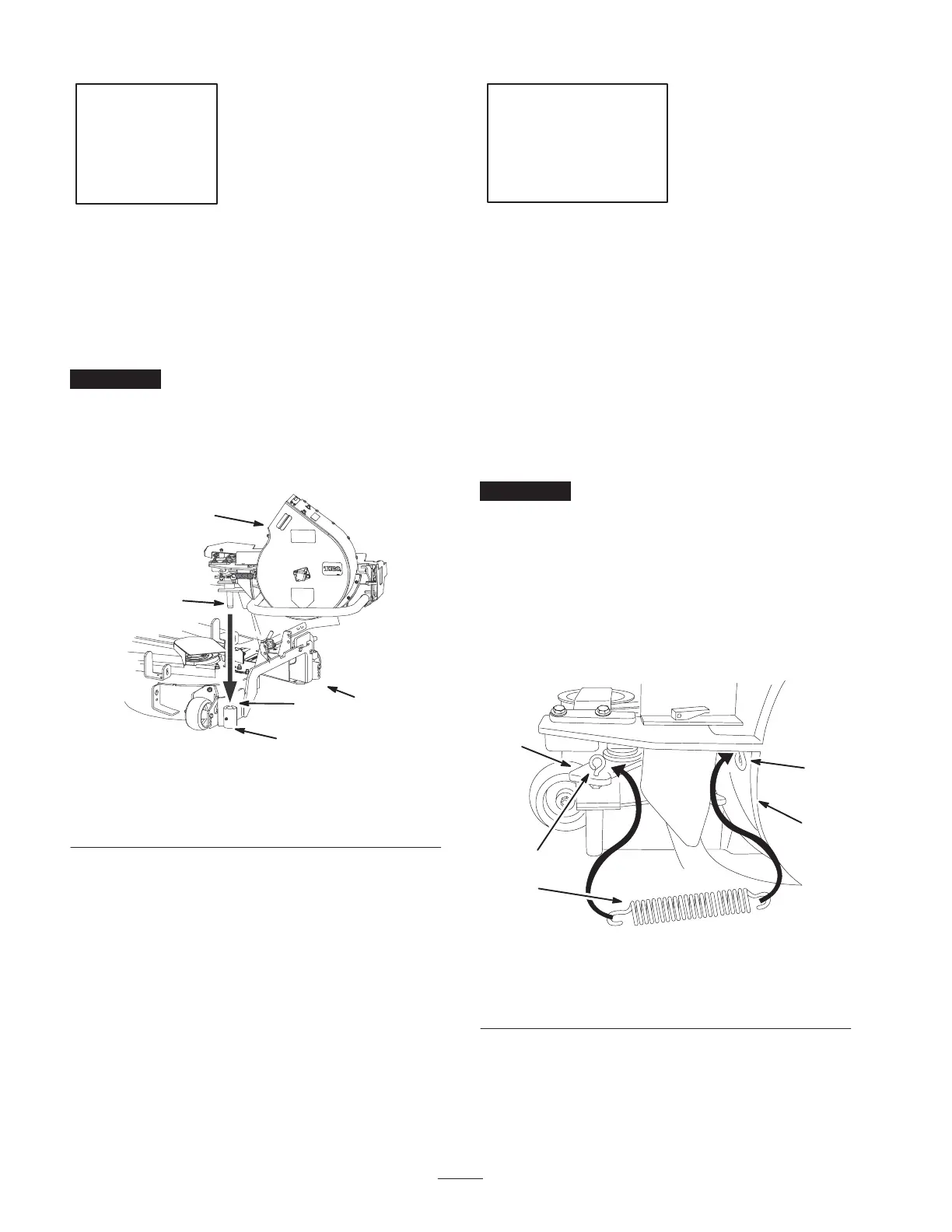

Installing the Blower Assembly
Important Make sure the mounting plate is installed
to the mower.
1. Move the grass deflector into the upright position.
2. Slide the blower assembly peg into the hole on the
bracket (Fig. 18).
m–7006
3
2
4
1
5
Figure 18
1. Mower deck
2. Blower assembly
3. Blower assembly peg
4. Mounting plate hole
5. Mounting plate
3. Close the blower assembly. (Fig. 21).
4. Check if the latch fully engages the front latch peg.
Refer to Checking and Adjusting the Blower Latch on
page 24.
Note: There needs to be a little or no gap between the
blower assembly and the mounting plate.
10
Step
Parts needed for this step:
• 1 Blower belt cover
• 1 Idler spring
• 1 Bagger belt
• 1 Pulley cover
Installing the Bagger Belt and
Idler Spring
Important The idler spring and bagger belt need to be
installed together.
This will create slight tension on both the spring and belt
while installing them.
1. Check that the blower assembly is closed and ensure
the blower front latch is engaged on the front peg.
2. Slide the spring into the blower eyebolt (Fig. 19).
3. Install the spring into the idler arm eyebolt (Fig. 19).
3
2
4
1
5
m–6276
Figure 19
1. Idler spring
2. Blower assembly
3. Idler arm eyebolt
4. Blower eyebolt
5. Idler arm
