26
7. Remove the bagger belt from the blower assembly
pulley (Fig. 38).
m–7007
2
3
1
4
6
5
7

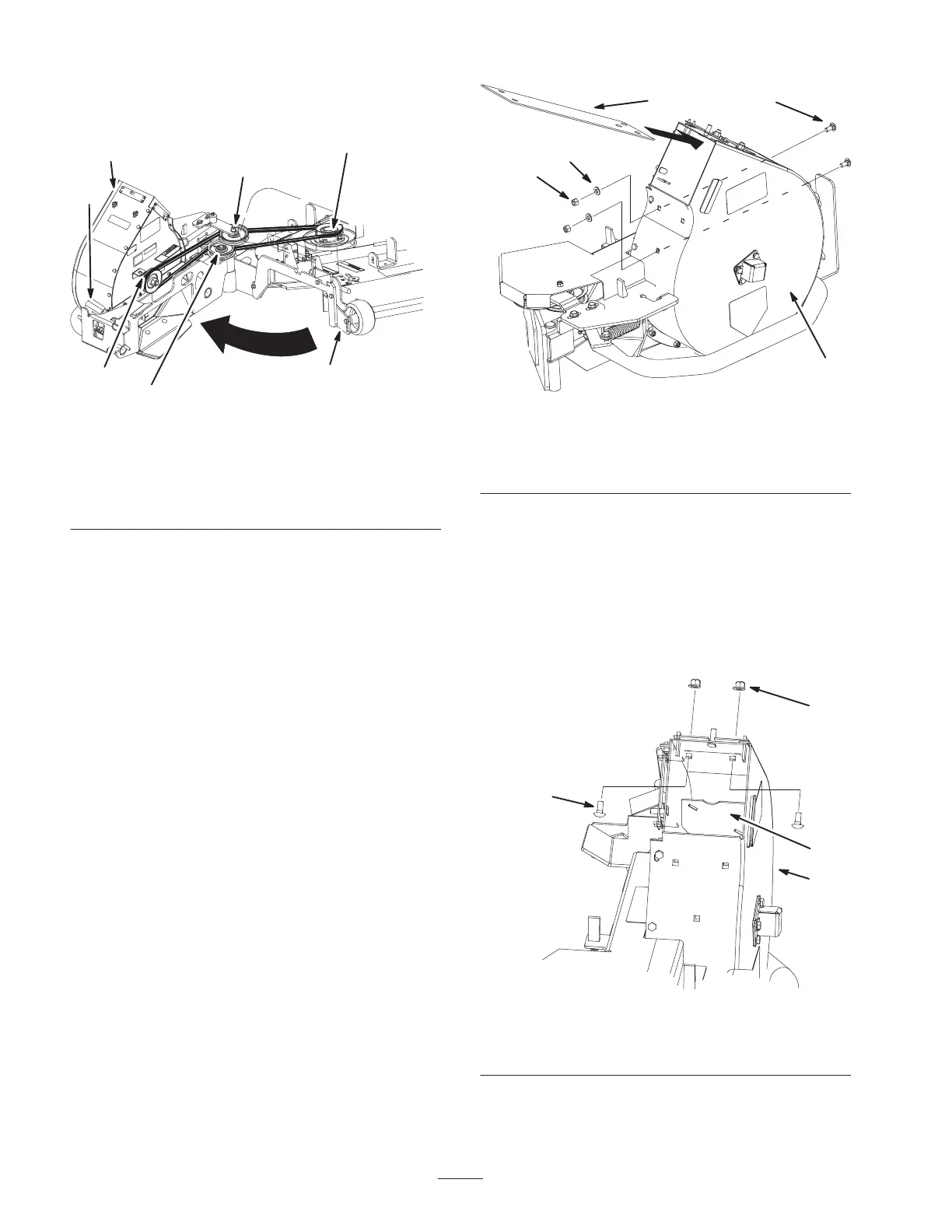

Figure 38
1. Blower pulley
2. Mower
3. Blower assembly
4. Top mower pulley
5. Spring loaded idler pulley
6. Fixed idler pulley
7. Front latch
8. Install the new bagger belt. Refer to Installing the
Bagger Belt and Idler Spring on page 14.
Checking the Blower Liner
Check the blower liner inside the blower every 40 hours
and more often in extreme mowing and bagging
conditions.
1. Remove the blower adapter and tube from the blower
(Fig. 25).
2. Inspect the liner for any excessive wear. Do not use
your hands to check the liner or remove debris.
3. Replace the liner if any excessive wear is noticed.
Replacing the Blower Liner
1. Disengage the PTO and set the parking brake.
2. Turn off the engine, remove the key, and wait for all
moving parts to stop before leaving the operating
position.
3. Remove the blower adapter and tube from the blower
(Fig. 25).
4. Remove the five bolts that hold the blower liner to the
blower (Figures 39 and 40).
5. Pull the liner out of the blower (Fig. 39).
2
m–6244
3
1
4
5
Figure 39
1. Blower
2. Liner
3. Bolt
4. Washer
5. Nut
6. Remove any debris from the blower. Do not use your
hands to remove the debris.
7. Slide the new liner around the blower impeller.
8. Install 3 bolts into the rear of the blower and the liner
(Fig. 39).
9. Loosely install 2 bolts into the liner and the blower
(Fig. 40).
3
2
m–6243
1
4
Figure 40
1. Blower
2. Bolt
3. Nut
4. Impeller
