Parts needed for this step:
• 1 Bagger tube
• 1 Clamp
• 2 Knobs
• 1 Blower adapter
Installing the Bagger Tube
Note: To ease assembly of the bagger tube to the blower
adapter, apply a little soapy water to both the bagger tube
and the adapter.

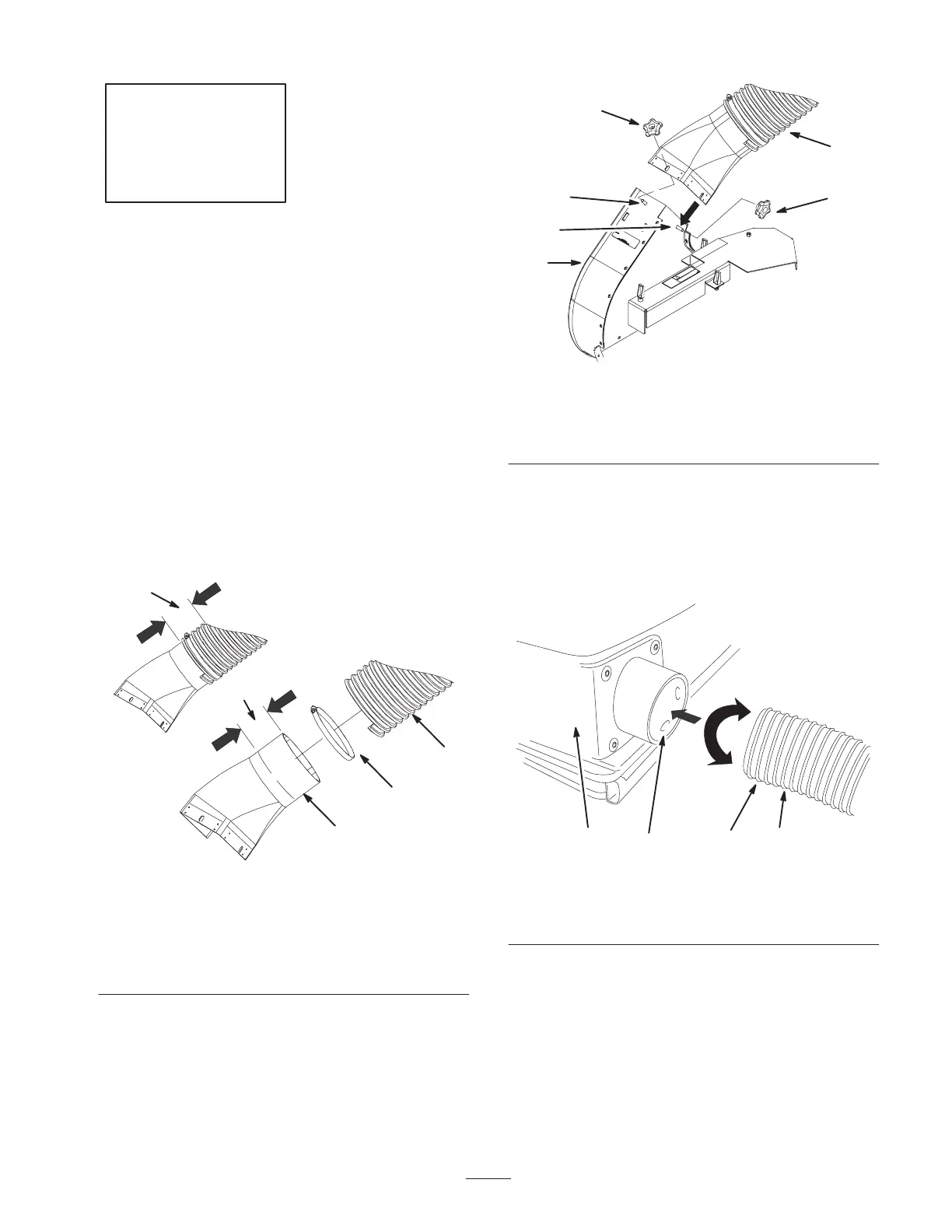

1. Install one end of the tube, 4 to 4–1/2 inches (102 to
114 mm) onto the blower adapter and secure it with a
clamp (Fig. 24).
1
3
2
m–6815
4
5
Figure 24
1. Tube
2. Blower adapter
3. Clamp
4. 4 to 4–1/2 inches (102 to
114 mm)
5. Tube installed onto the
adapter 4 to 4–1/2 inches
(102 to 114 mm)
2. Place the blower adapter over the top blower stud and
slide it into the side stud (Fig. 25).
3. Install the knobs onto the top and side stud (Fig. 25).
This will secure the lower tube end to the blower
assembly.
4
3
4
5
m–6252
1
2
Figure 25
1. Tube
2. Blower assembly
3. Top blower stud
4. Knob
5. Side blower stud
Note: There are nubs on the inside of the bagger hood that
hold the upper end of the bagger tube (Fig. 26).
4. Place the upper tube into the bagger hood (Fig. 26).
5. Move the upper tube back and forth, until at least two
ribs engage into the nubs inside the bagger hood
1
2
3
4
m–6263
Figure 26
1. Tube
2. Bagger hood
3. Nubs
4. Ribs
