Toro TURBO FORCE - Installing the Belt Cover

16

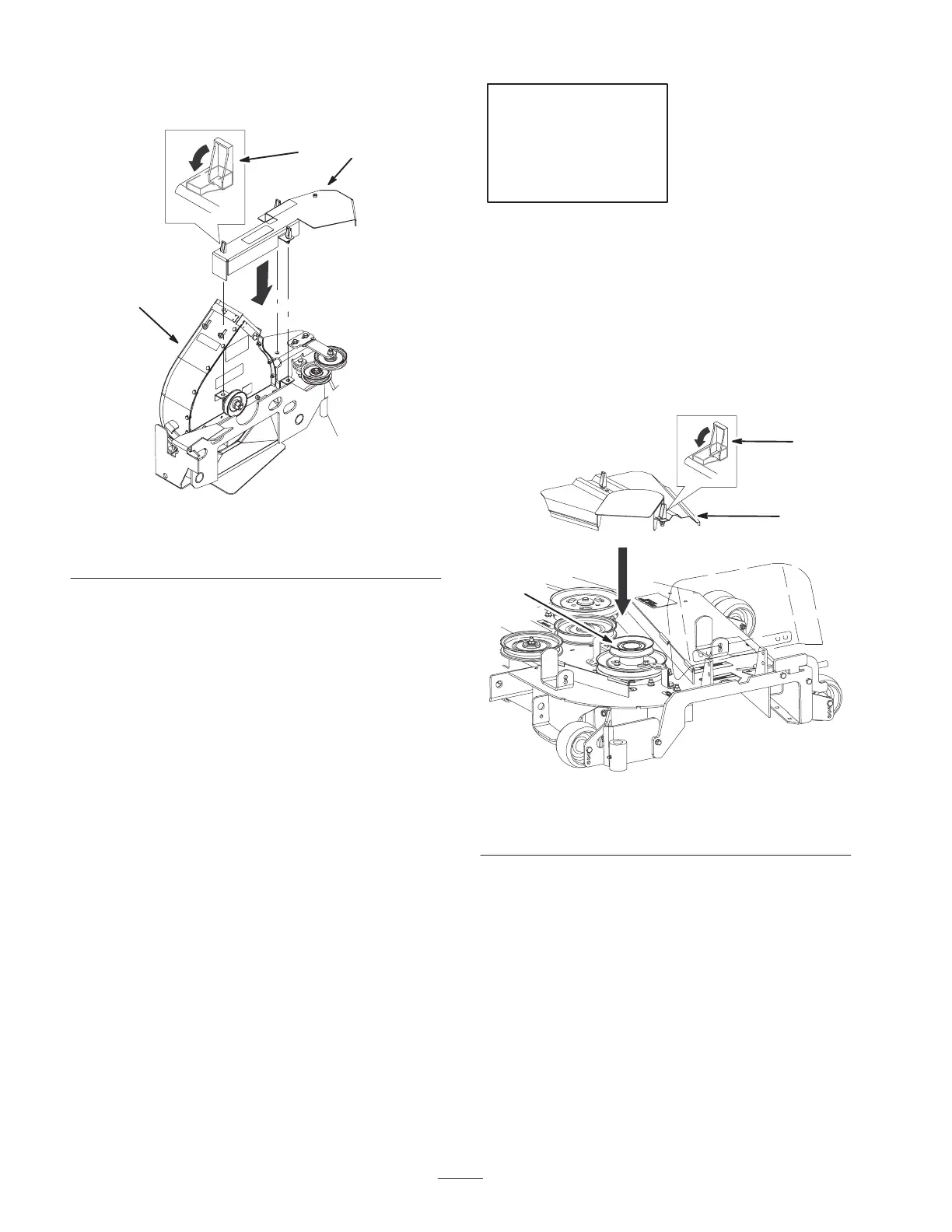

13. Install the belt cover over the pulley assembly and
secure the 3 cover latches into the blower (Fig. 22).
m–6236
3 2
1
Figure 22
1. Blower assembly
2. Blower belt cover
3. Latch
11
Step
Parts needed for this step:
• 1 Belt cover
Installing the Belt Cover
1. Install the new belt cover over the pulley assembly and
secure the latches (Fig. 23).
m–7020
2
1
3
Figure 23
1. Pulley assembly
2. Belt cover
3. Latch
