13
3. Install the bag tab into the notch in the hood assembly
(Fig. 15). Do this for both bags.
Note: The bag will rest on the bagger frame (Fig. 15).
m–6760
1
3
3
4
5
2

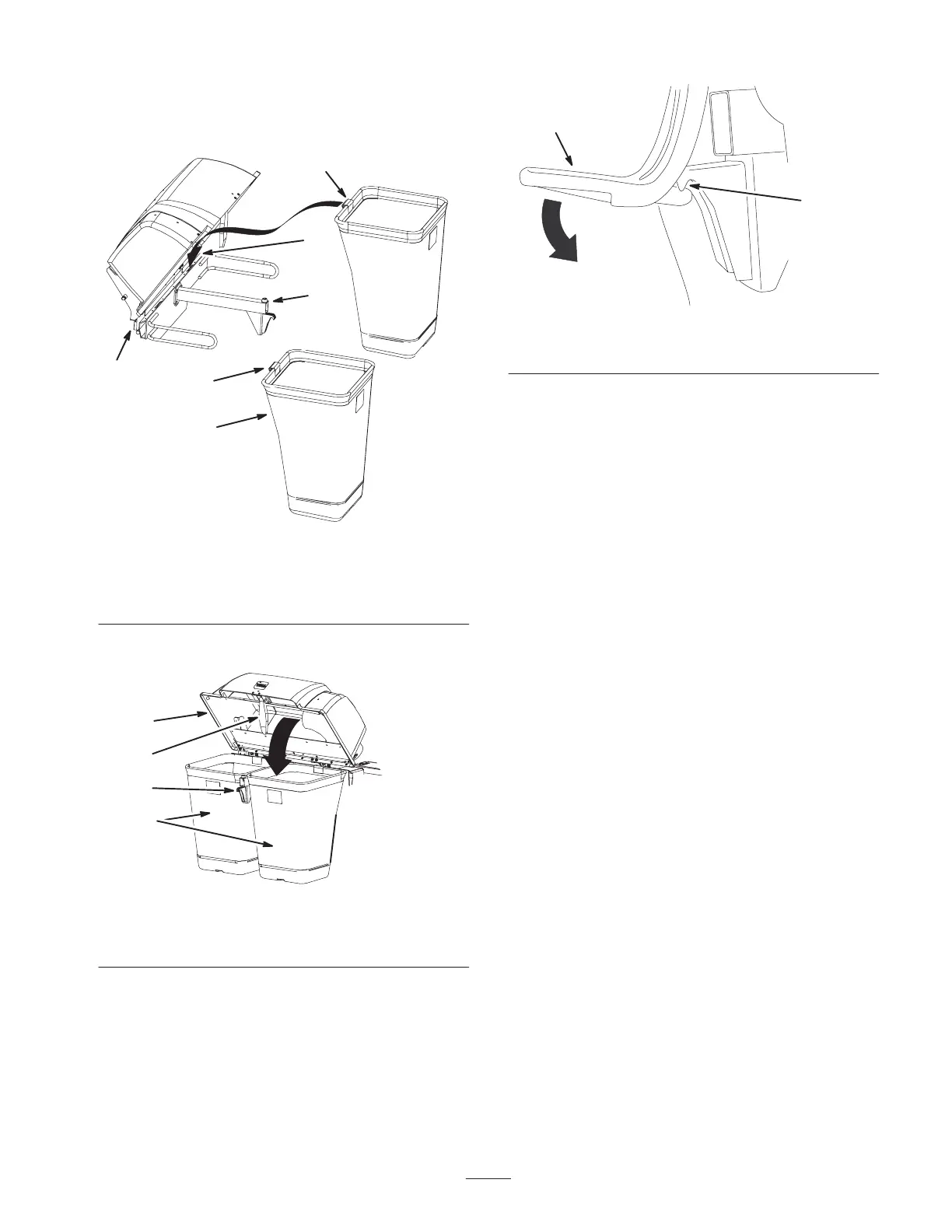

Figure 15
1. Hood assembly
2. Bag
3. Bag tab
4. Notch
5. Bagger frame
4. Lower the bagger hood over the bags (Fig. 16).
1
2
3
4
m–6761
Figure 16
1. Hood
2. Bags
3. Bagger latch
4. Latch hook
5. Position the bagger latch under the latch hook
(Figures 16 and 17).
6. Push down on bagger latch until it locks into place
(Fig. 17).
1
2
m–6264
Figure 17
1. Bagger latch 2. Latch hook
