Toshiba B-EP2DL Series Maintenance Manual

2. MAJOR UNIT REPLACEMENT EO18-33024
2.1 Replacing the CPU PC Board
2-6

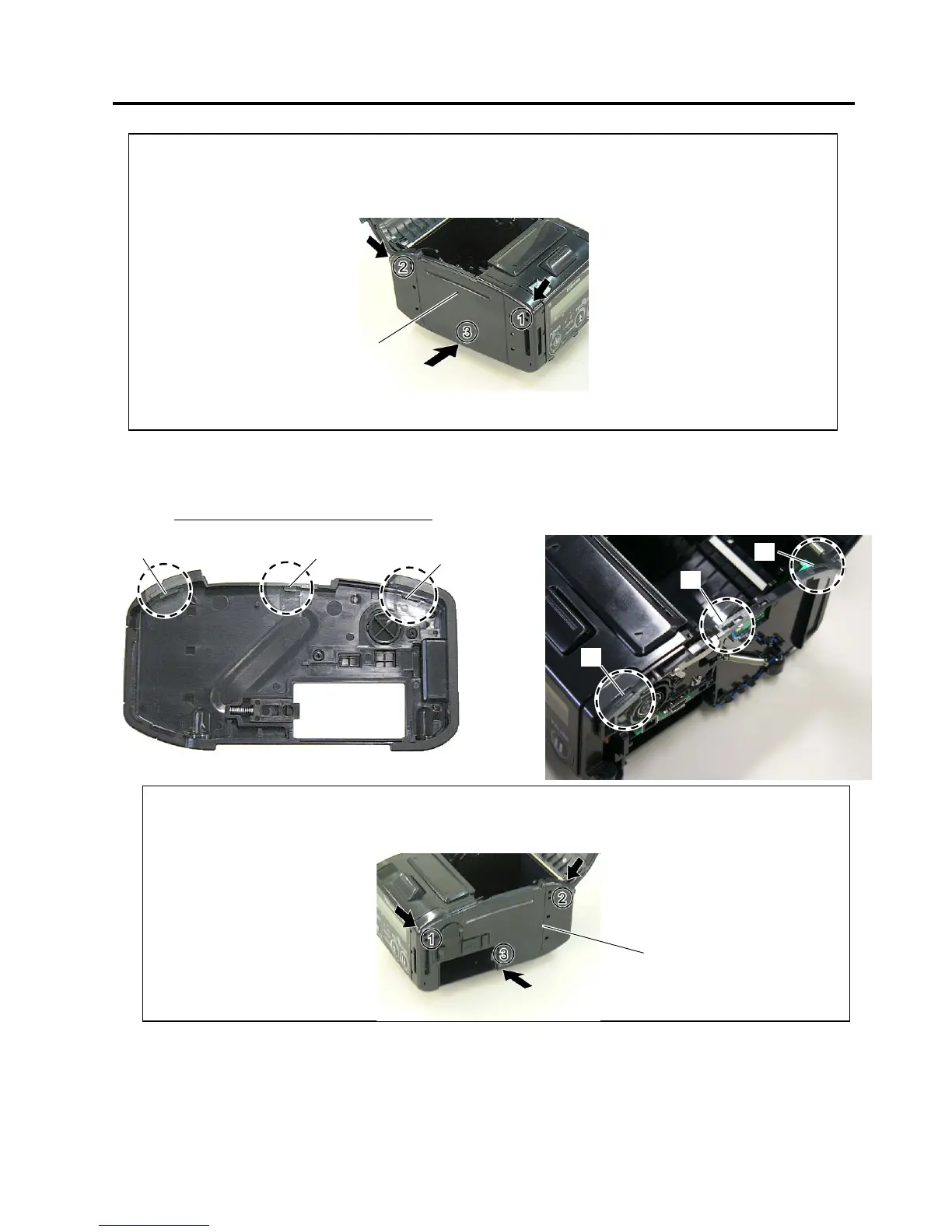

13) Mount the right side cover to the printer while fitting the tabs on the right side cover into the slots of the
printer enclosure.
Fit the tabs A to C into the slots A’ to C’.
NOTE:
It is easy to mount the left side cover if you fit the tabs from the LCD side in order, then secure the bottom
side. Be careful not to catch the cable by the cover while reassembling.
NOTE:
It is easy to mount the right side cover if you fit the tabs from the LCD side in order, then secure the
bottom side. Be careful not to catch the cable by the cover while reassembling.
Right Side Cover
Left Side Cove
r
Tab
A
Tab B
Tab C
A
’
B’
C’
