APPENDIX 1 SPECIFICATIONS ENGLISH VERSION EO1-33087
A1.3 Media
EA1- 4
A1.3.1 Media Type (Cont.)
Unit: mm (inch)
Issue mode
Item
Batch mode Strip mode Cut mode
c Width including backing paper 25.4 to 112 (1.0 to 4.41)
d Media width 22.4 to 109 (0.88 to 4.29)
203 dpi
10 to 999
(0.39 to 39.3)
25.4 to 152.4
(1.0 to 6)
25.4 to 999
(1.0 to 39.3)
Label
300 dpi
10 to 457.2
(0.39 to 18.0)
25.4 to 152.4
(1.0 to 6)
25.4 to 457.2
(1.0 to 18.0)
203 dpi
10 to 999
(0.39 to 39.3)
-----
25.4 to 999
(1.0 to 39.3)
e Media pitch
Tag
300 dpi
10 to 457.2
(0.39 to 18.0)
-----
25.4 to 457.2
(1.0 to 18.0)
203 dpi
8 to 997
(0.31 to 39.25)
23.4 to 150.4
(0.92 to 5.92)
19.4 to 993
(1.0 to 39.1)
f Media length
300 dpi 8 to 455.2 (0.31 to 17.9)
23.4 to 150.4
(0.92 to 5.92)
19.4 to 451.2
(1.0 to 17.76)
g Gap/black mark length 2.0 to 10.0 (0.08 to 0.39)
6.0 to 10.0
(0.24 to 0.39)
h Black mark width Min. 8.0 (0.31)
Thickness 0.06 to 0.19 (0.0024 to 0.0075)
Max. outer roll diameter
Ø127 (5)
Ø214 (8.42): When the optional External Media Roll Hanger is used.
Roll direction Outside (standard), Inside
Inner core diameter 25.4 to 38.1, or 76.2 (1 to 1.5, or 3)
(See NOTE 2.)

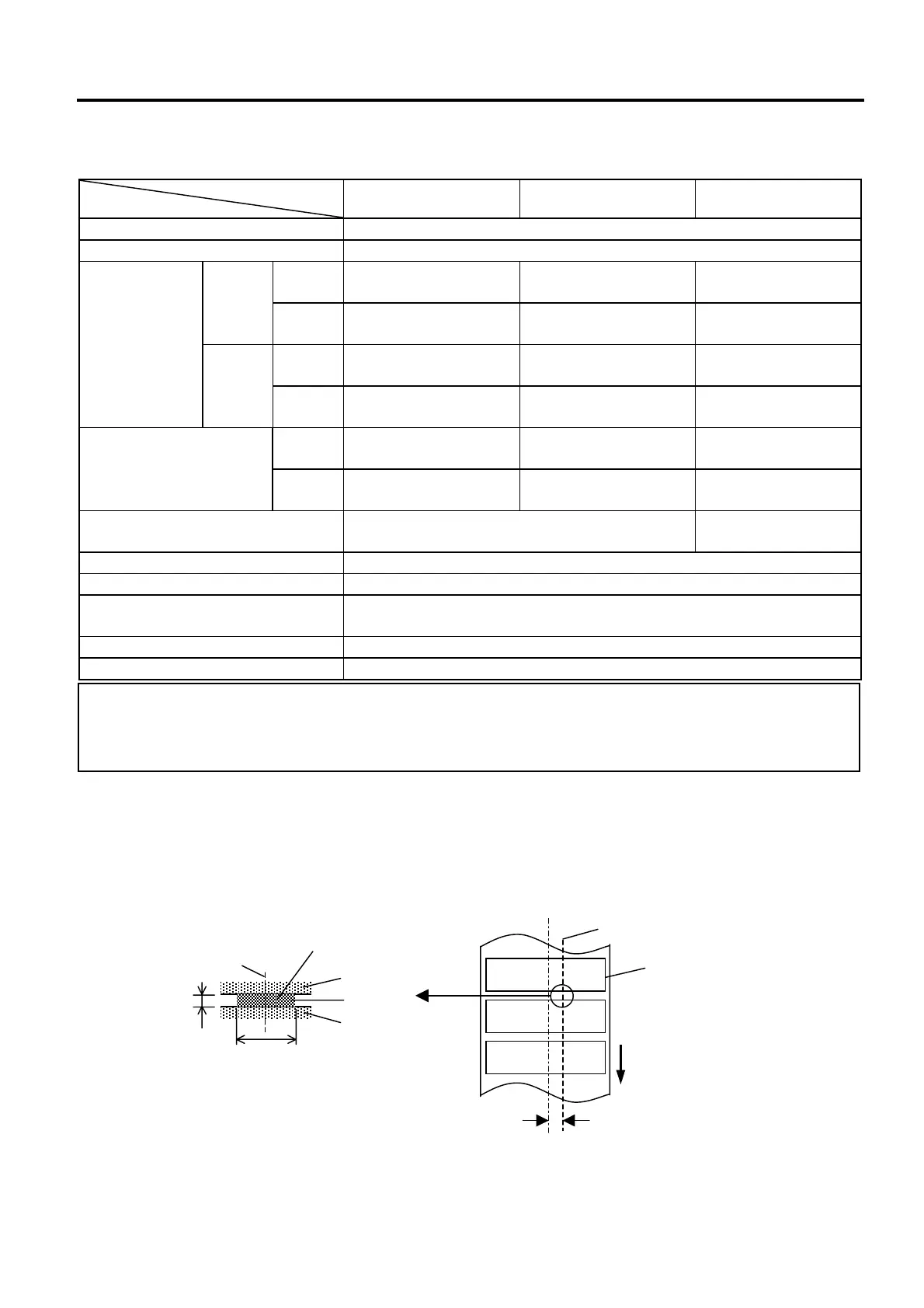

A1.3.2 Detection Area of the Transmissive Sensor
The Transmissive sensor is fixed and positioned at 6.35 mm right of the center of the media path.
The Transmissive Sensor detects a gap between labels, as illustrated below.
OTES:
1. To ensure print quality and print head life use only TOSHIBA TEC approved media.
2. When using a media roll of 76.2-mm (3”) inner core diameter, the 3”-Diameter Media Shaft included in the
optional External Media Roll Hanger is required.
Min. 2 mm
(Min. 6 mm:
cut mode)
Min. 8 mm
Sensor position
rea to be detected.
Label
Gap
Label
Sensor position
Media feed direction
Print side
6.35mm
