INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
3. Wireless LAN Module: B-SA704-WLAN-QM
3- 5

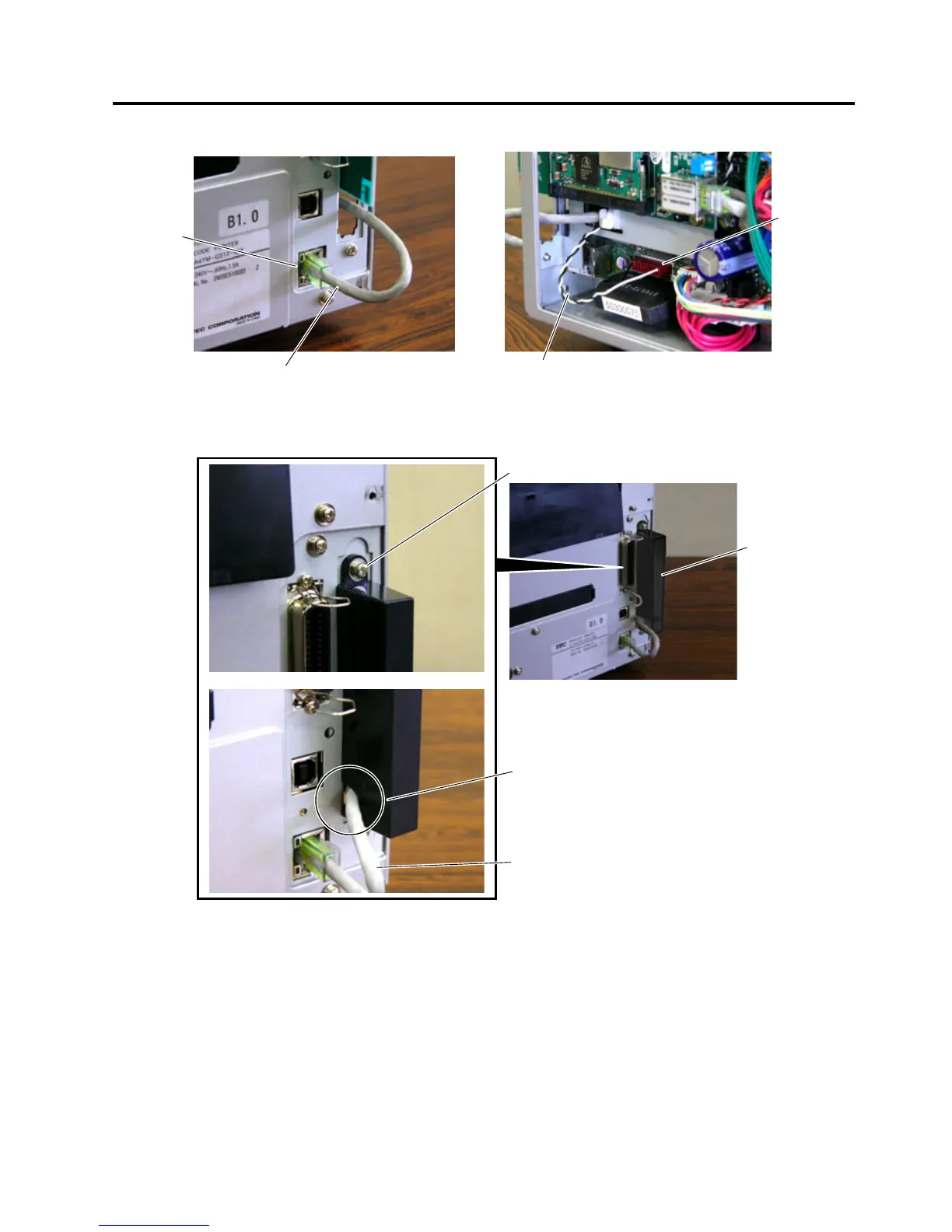

8. Connect the Wireless LAN Power Cable and the LAN Cable as shown below.
9. Fit the Antenna Cover to the back of the printer. Secure it with the SMW-3x6 screw.
10. Re-attach the Side Panel to the printer.
LAN Cable
Wireless LAN Power Cable
CN12
CN17
A
ntenna Cove
r
LAN Cable
Pass the LAN Cable through the
cut of the Antenna Cover.
SMW-3x6 Screw
