Toshiba B-SA4T Option Installation Manual

INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
(Revision Date: Feb. 25, 2008)
8. RFID Module: B-SA704-RFID-U2-EU-R
8- 7

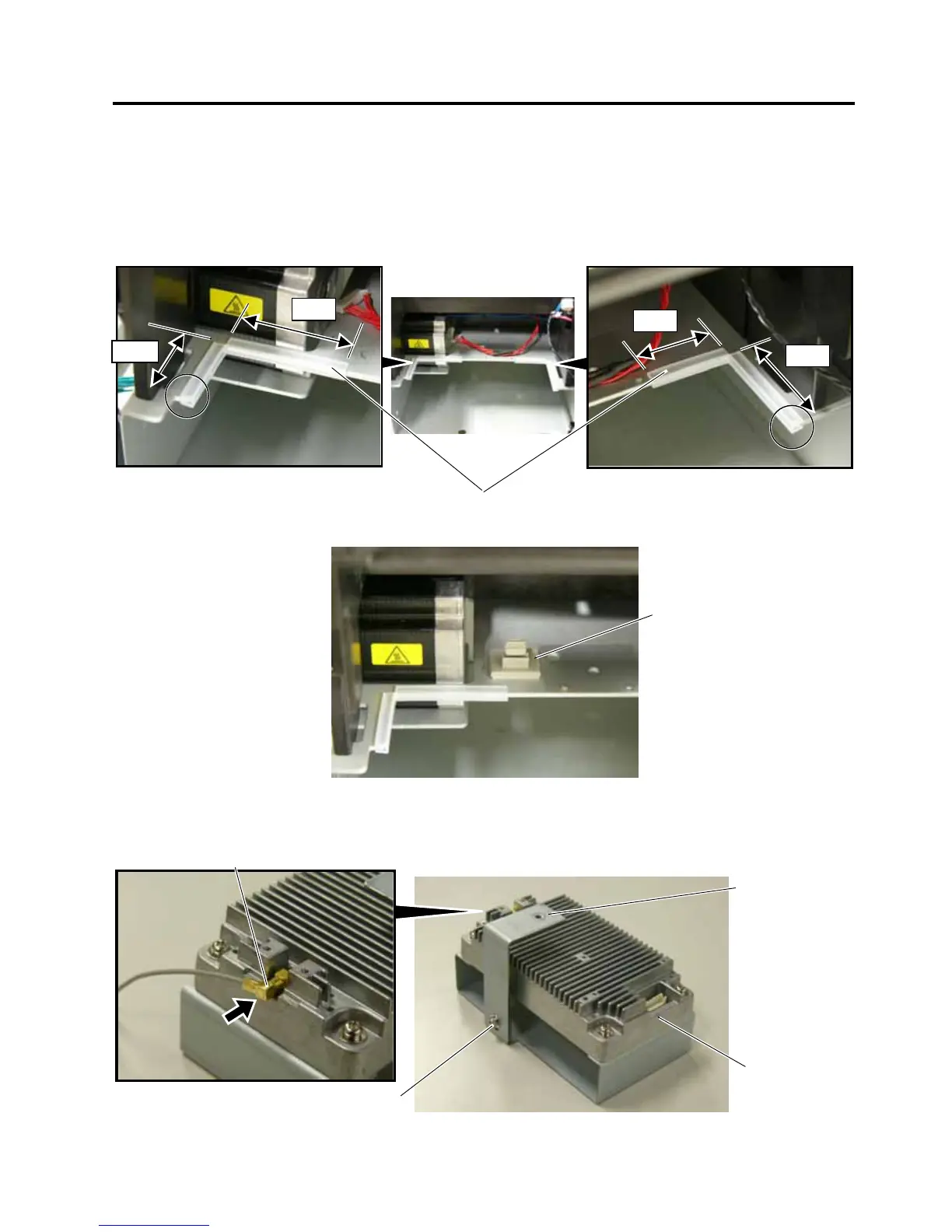

9. Fit the supplied Edge Guards on the metal plate all the way to their bottoms.
• Please be careful not to injure your hands while fitting the Edge Guards.
• Fit the long Edge Guards and short ones on the correct positions respectively, as indicated in the
pictures below.
• The Edge Guards should not protrude from the edge of the metal plate (portions enclosed with
circles).
10. Attach the Cable Clamp to the position shown below.
11. Temporarily secure the RFID Module Attaching Plate to the RFID Module with a supplied Double
Sems Screw. Connect the Antenna Cable to the RFID Module until it clicks.
Edge Guard
Short
Long
Short
Long
Cable Clamp
RFID Module
RFID Module
Attaching Plate
Double Sems Screw M-3x6
A
ntenna Cable

Toshiba B-SA4T Specifications

General

Print Method	Thermal transfer and direct thermal
Resolution	203 dpi
Print Width	104 mm
Interfaces	Serial, Parallel, USB
Optional Interfaces	Ethernet, Wireless
Barcodes	Code 39, Code 128
2D Codes	PDF417, Data Matrix, QR Code, MaxiCode
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20 - 60 °C (-4 - 140 °F)
Humidity	20% to 85% (non-condensing)
Interface	USB, Serial (RS-232), Parallel, Ethernet, Wireless
