INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
(Revision Date: Feb. 25, 2008)
8. RFID Module: B-SA704-RFID-U2-EU-R
8- 8

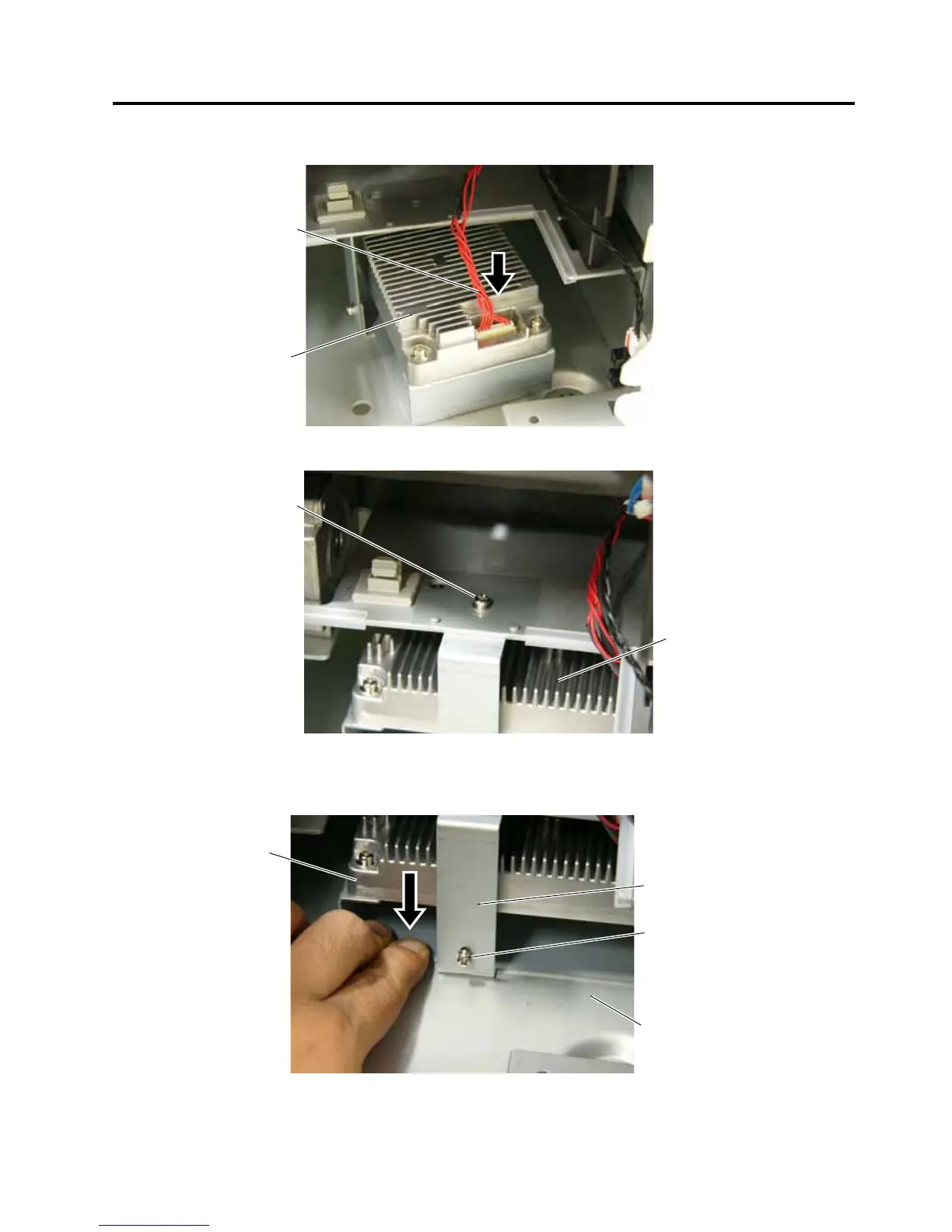

12. Connect the Interface Cable to the RFID Module.
13. Secure the RFID Module to the printer with a supplied Double Sems Screw.
14. While pushing down the RFID Module, tighten the Double Sems Screw, which was temporarily
tightened in Step 10, so that there is no clearance between the RFID Module and the Bottom Plate
of the printer.
Interface Cable
RFID Module
RFID Module
Double Sems Screw
M-3x6
Double Sems Screw
M-3x6
RFID Module
RFID Module Attaching Plate
Bottom Plate
To Next Page
