Toshiba B-SA4T Option Installation Manual

INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO15-33001A
(Revision Date: Feb. 25, 2008)
8. RFID Module: B-SA704-RFID-U2-EU-R
8- 14
Continued from the
previous page

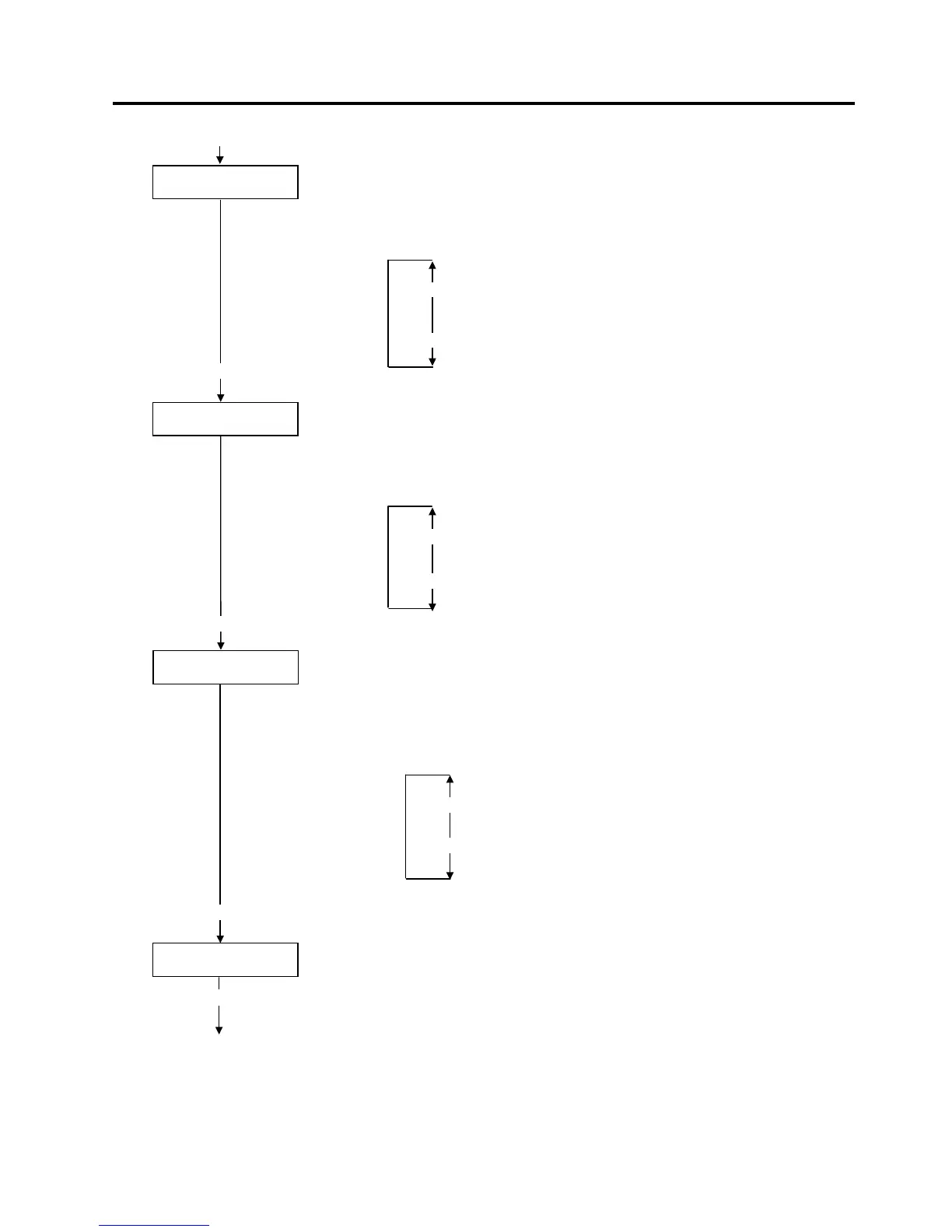

<10>RFID
A
DJ RETRY +00
RFID adjustment for retry menu is displayed.
If writing data on a tag failed, the printer feeds the RFID tag forward or backward for
specified length in order to retry writing data. When “0” is set for this parameter, this
function and a retry are not performed.
Only the value of –3mm or less or +3mm or more becomes effective.
Set a value to move the RFID tag position with the [FEED] or [RESTAT] key.
[RESTART]
[FEED]
+99 (99mm) Reverse feed
•
•
•
+00 (Default)
•
•
-99 (-99mm) Forward feed
[PAUSE]
Press the [PAUSE] key.
<10>RFID
POWER LEVEL 18
Radio output power level setting menu is displayed.
When the value is “9”, the power is the weakest, and when “18”, the power is the
strongest. The factory default setting is “18”. The optimum value differs depending on the
tag types. Usually, it is not necessary to change this value but changing the value may be
able to increase the number of successful read/write times.
Set the power level with the [FEED] or [RESTART] key.
[RESTART]
[FEED]
18 (Default, Strongest)
•
•
•
•
•
9 (Weakest)
[PAUSE]
Press the [PAUSE] key.
[RESTART]
[FEED]
<10>RFID
RF CHANNEL AUTO
RFID channel setting menu is not available to the B-SA704-RFID-U2-EU-R.
[PAUSE]
Press the [PAUSE] key to skip this menu.
<10>RFID
A
GC THRESHOLD 0
[PAUSE]
Press the [PAUSE] key.
Continued to the next page.
15
•
•
•
•
•
0 (Default)
AGC threshold setting menu is displayed.
When the obtained gain of an RFID tag is lower than the AGC threshold, the tag is
considered as an error tag even if a data write succeeds.
When the AGC threshold is set to “0”, all tags are writable.
When set to “8”, for example, only tags with the AGC threshold level of 9 or greater are
writable. The optimum value is different depending on the tag types. The factory default is 0.
Set an AGC threshold with the [FEED] or [RESTART] key.

Toshiba B-SA4T Specifications

General

Print Method	Thermal transfer and direct thermal
Resolution	203 dpi
Print Width	104 mm
Interfaces	Serial, Parallel, USB
Optional Interfaces	Ethernet, Wireless
Barcodes	Code 39, Code 128
2D Codes	PDF417, Data Matrix, QR Code, MaxiCode
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20 - 60 °C (-4 - 140 °F)
Humidity	20% to 85% (non-condensing)
Interface	USB, Serial (RS-232), Parallel, Ethernet, Wireless
