Toshiba MW24F11 Service Manual

DISASSEMBLY INSTRUCTIONS
B1-2
1-6: DVD BLOCK/OPERATION PCB (Refer to Fig. 1-6)
1.
2.
3.
4.
Remove the 4 screws 1.
Remove the DVD Block in the direction of arrow (A).
Remove the 2 screws 2.
Remove the Operation PCB in the direction of arrow (B).

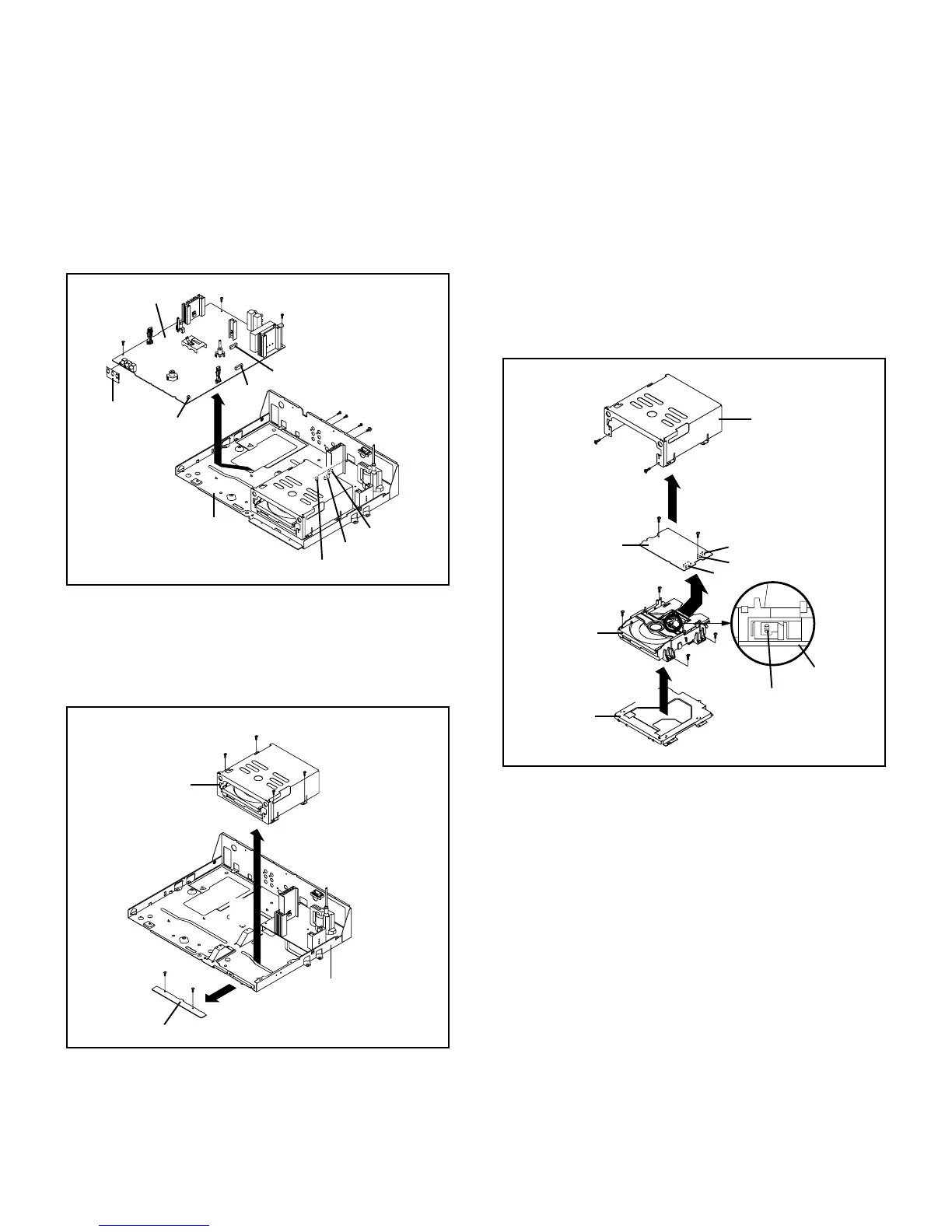

Fig. 1-6
1-7: DVD PCB/DVD DECK (Refer to Fig. 1-7)
1.
2.
3.
4.
5.
6.
7.
8.
Short circuit the position shown in Fig. 1-7 using a
soldering iron. If you remove the DVD Deck with no
soldering, the Laser may be damaged.
Remove the 2 screws 1.
Remove the DVD Top in the direction of arrow (A).
Remove the 4 screws 2.
Remove the DVD Deck in the direction of arrow (B).
Disconnect the following connectors:
(CP2601, CP2602 and CP2603).
Remove the 2 screws 3.
Remove the DVD PCB in the direction of arrow (C).
DVD Block
1
1
1
1
(A)
2
2
(B)
Operation PCB
Bottom Plate
Fig. 1-7
1
(A)
Angle Deck
2
(B)
(C)
3
DVD PCB
Pick Up PCB
1
DVD Top
2
2
2
Short circuit using a
soldering iron.
3
DVD Deck
1-5: VCR PCB (Refer to Fig. 1-5)
1.
2.
3.
4.
5.
Remove the 6 screws 1.
Remove the screw 2.
Remove the AV Jack Shield.
Disconnect the following connectors:
(CP001, CP602B, CP604, CP2201, CP8001 and CP8002).
Remove the VCR PCB in the direction of arrow.
Fig. 1-5
1
1
1
1
1
1
2
VCR PCB
Bottom Plate
AV Jack Shield
CP2201
CP8001
CP8002
CP602B
CP604
NOTE
Before your operation, please read “PREPARATION OF
SERVICING”.
Use the Lead Free solder.
Manual soldering conditions
• Soldering temperature: 320 ± 20˚C
• Soldering time: Within 3 seconds
• Soldering combination: Sn-3.0Ag-0.5Cu
When Soldering/Removing of solder, use the drawing
equipment over the Pick Up Unit to keep the Flux smoke
away from it.
When installing the DVD Deck, remove all the soldering on
the short circuit position after the connection of Pick Up
PCB and DVD PCB connector.
1.
2.
3.
4.
5.
CP2601
CP2602
CP2603
CP001
