Toshiba MW24F11 Service Manual

DISASSEMBLY INSTRUCTIONS
B2-2

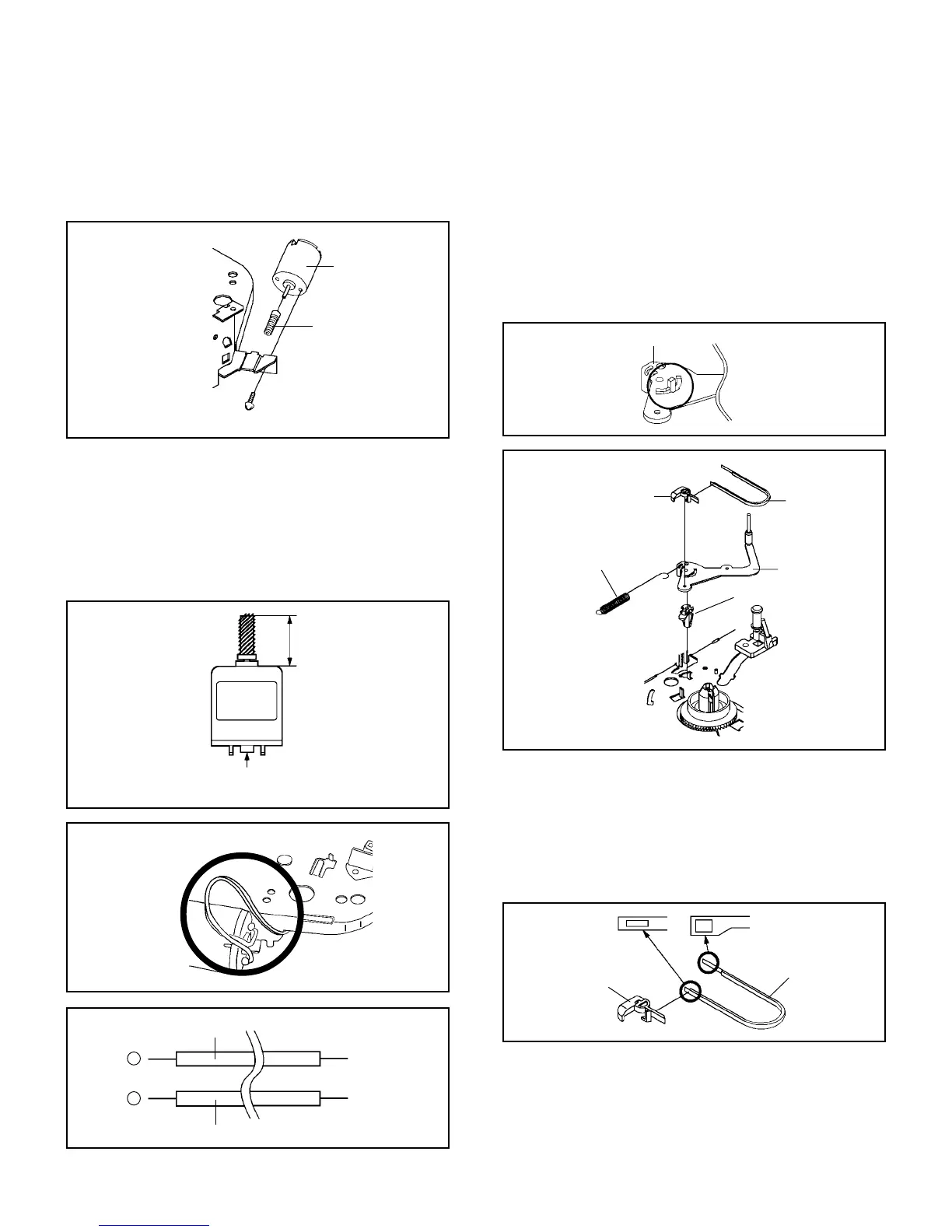

2-5: LOADING MOTOR/WORM (Refer to Fig. 2-5-A)
1.
2.
3.
Remove the screw 1.
Remove the Loading Motor.
Remove the Worm.
Fig. 2-5-A
Loading Motor
Worm
• Screw Torque: 3 ± 0.5kgf•cm
Main Chassis
1
2-6: TENSION ASS’Y (Refer to Fig. 2-6-B)
1.
2.
3.
4.
5.
6.
Turn the Pinch Roller Cam clockwise so that the Tension
Holder hook is set to the position of Fig. 2-6-A to move
the Tension Arm Ass’y.
Remove the Tension Spring.
Unlock the 2 supports 1 and remove the Tension Band.
Unlock the support 2 and remove the Tension Arm Ass’y.
Unlock the support 3 and remove the Tension Connect.
Float the hook 4 and turn it clockwise then remove the
Tension Holder.
Fig. 2-6-B
Tension Band
Tension Connect
Tension Spring
Tension Arm Ass’y
Tension Holder
1
1
3
2
4
NOTE
1.
2.
3.
In case of the Tension Band installation, note the direc-
tion of the installation. (Refer to Fig. 2-6-C)
In case of the Tension Band installation, install correctly
as Fig. 2-6-D.
In case of the Tension Connect installation, install as the
circled section of Fig. 2-6-E.
Fig. 2-6-C
Tension Band
Tension Connect
Tension Arm Ass’y
Fig. 2-6-A
NOTE
1.
2.
3.
In case of the Worm installation, check if the value of the
Fig. 2-5-B is correct.
In case of the Loading Motor installation, slacken the wire
as shown Fig. 2-5-C.
When installing the wires between Capstan DD Unit and
Loading Motor, connect them correctly as shown Fig. 2-5-
D.
Loading Motor Capstan DD Unit
-
+
L2
L1
Pink
Fig. 2-5-D
White
Fig. 2-5-B
19.2 ± 0.1mm
Safety surface for pressing
of the insert.
Fig. 2-5-C
Loading Motor
Slacken the wire.
