Toshiba MW24F11 Service Manual

DISASSEMBLY INSTRUCTIONS
B2-3

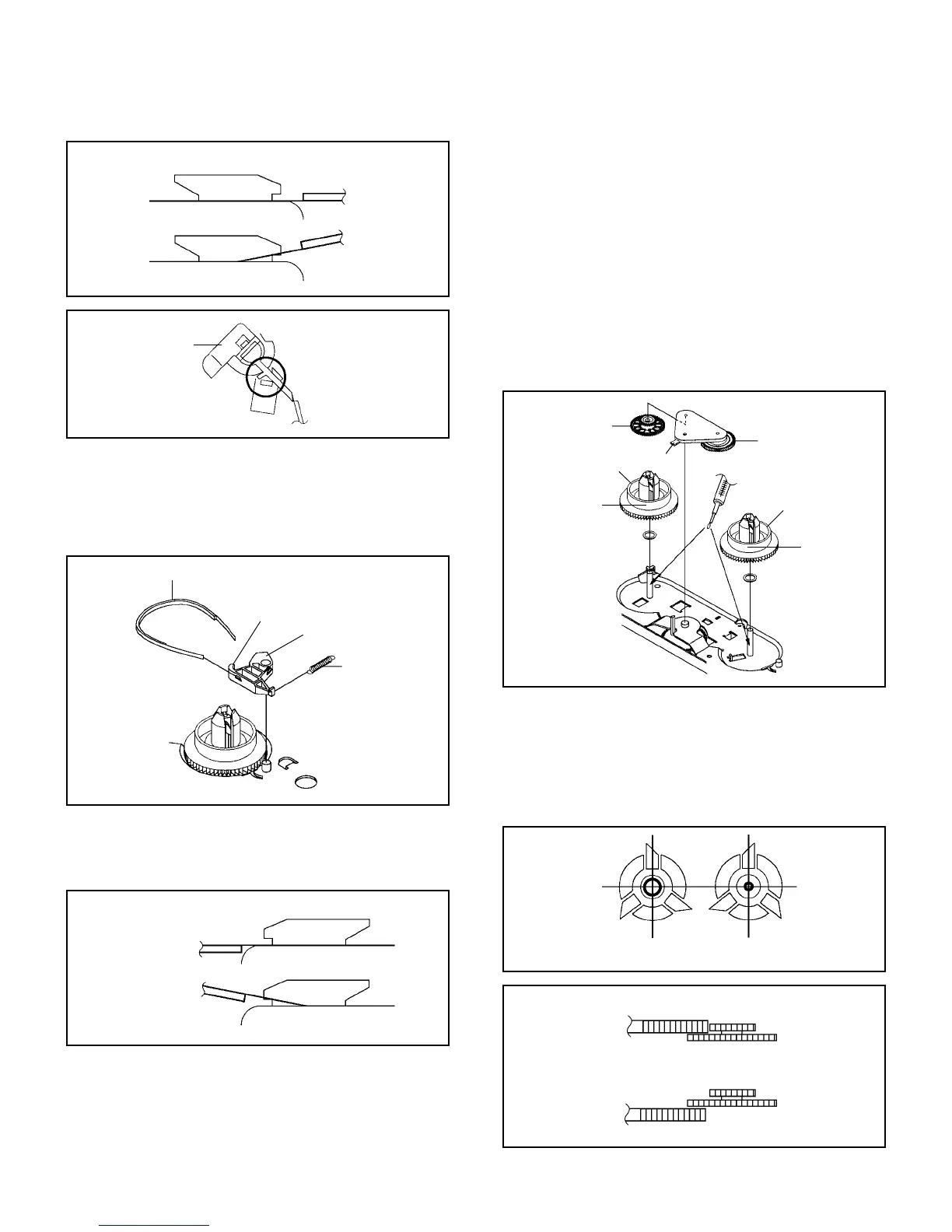

Fig. 2-6-D
[OK]
[NG]
Tension Connect
Tension Band
Tension Connect
Tension Band
Fig. 2-6-E
Tension Connect
Main Chassis
2-7: T BRAKE ARM/T BRAKE BAND (Refer to Fig. 2-7-A)
Remove the T Brake Spring.
Turn the T Brake Arm clockwise and bend the hook
section to remove it.
Unlock the 2 supports 1 and remove the T Brake Band.
1.
2.
3.
Fig. 2-7-A
T Brake Band
Hook section
T Brake Arm
T Brake Spring
1
1
NOTE
1. In case of the T Brake Band installation, install correctly
as Fig. 2-7-B.
Fig. 2-7-B
[OK]
[NG]
T Brake Arm
T Brake Band
T Brake Arm
T Brake Band
2-8: S REEL/T REEL/IDLER ARM ASS’Y/IDLER GEAR
(Refer to Fig. 2-8-A)
1.
2.
3.
Remove the S Reel and T Reel.
Remove the 2 Polyslider Washers 1.
Remove the Idler Arm Ass’y and Idler Gear.
NOTE
1.
2.
3.
4.
5.
6.
Take care not to damage the gears of the S Reel and T
Reel.
The Polyslider Washer may be remained on the back of
the reel.
Take care not to damage the shaft.
Do not touch the section “A” of S Reel and T Reel. (Use
gloves.) (Refer to Fig. 2-8-A) Do not adhere the stains
on it.
When you install the reel, clean the shaft and grease it. (If
you do not grease, noise may be heard in FF/REW
mode.)
After installing the reel, adjust the height of the reel.
(Refer to MECHANICAL ADJUSTMENT)
Fig. 2-8-A
Idler Gear
Idler Arm Ass’y
S Reel
T Reel
(A)
1
1
(A)
NOTE
1.
2.
In case of the S Reel and T Reel installation, check if the
correct parts are installed. (Refer to Fig. 2-8-B)
In case of the Idler Arm Ass’y installation, install correctly
as Fig. 2-8-C. And also set it so that the section “B” of
Fig. 2-8-A is placed under the Main Chassis tab.
Fig. 2-8-B
Big Hole
(S Reel)
Small Hole
(T Reel)
Fig. 2-8-C
[OK]
[NG]
Clutch Gear
Idler Arm Ass’y
Idler Arm Ass’y
Clutch Gear
(B)
