Toshiba Satellite A350 User Manual

4 Replacement Procedures Error! Style not defined. Error! Style not defined.
Installing the VGA Board and VGA Thermal Module
Install the VGA board and thermal Module according to the following procedures.
1. Reapply Shinetsu 7762 grease on the VGA thermal module as shown in Figure 4.30. If
you use one new VGA thermal module, remove the release papers on the thermal pads
first.

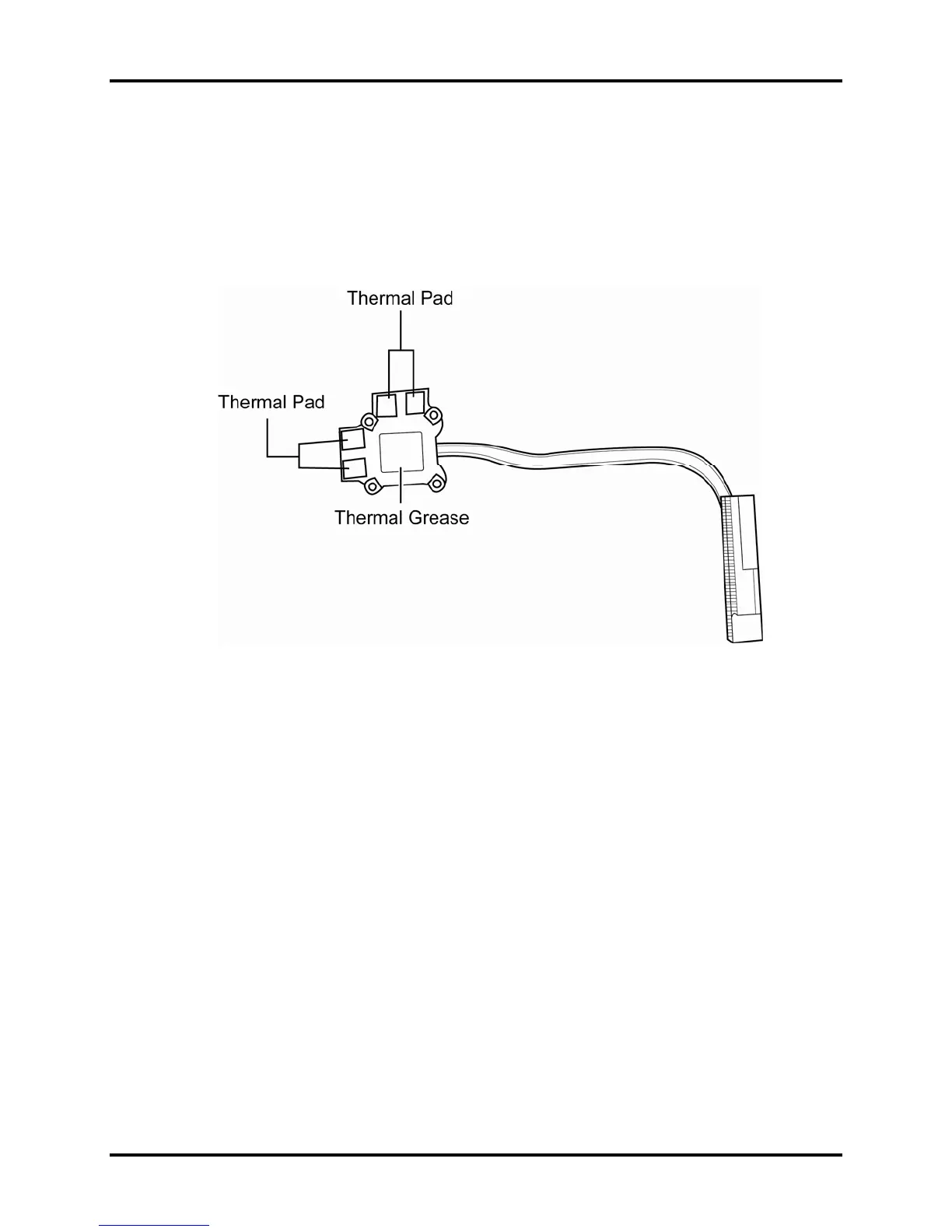

Figure 4 . 30 Reapply the Shinetsu 7726 grease on the thermal module and remove the release
papers
2. Seat the VGA thermal module on the VGA board and secure it with four spring screws
according to the number sequence sealed on the thermal module.
3. Seat the VGA board in the correct position on the motherboard and secure it with three
M2.5x4 screws.
Satellite A350 Maintenance Manual 4-42
