4.26 FM Jack
Removing the FM Jack

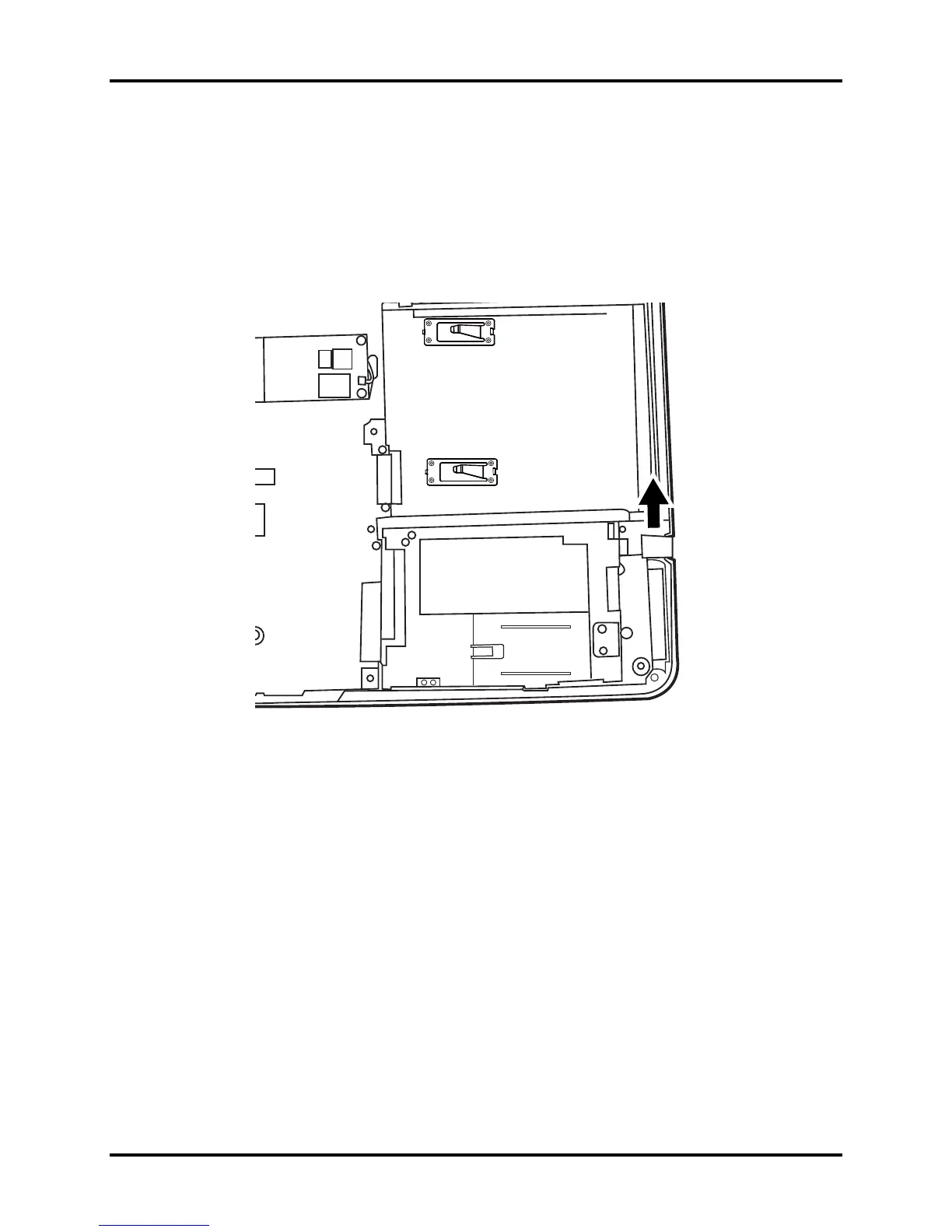

Remove the FM jack according to the following procedures and Figure 4.46.
1. Remove the FM jack from the logic lower assembly.
Figure
4
.
46 Removing the FM Jack
Installing the FM Jack
Install the FM Jack according to the following procedures.
1. Seat the FM jack in the correct position on the logic lower assembly.
2. Align the cable to the groove on the logic lower assembly.
Satellite A350 Maintenance Manual 4-61
