Media Application Server Installation
R3 MAS Installation Instructions
Strata CIX MAS Installation 06/09 1-9
R3 MAS Installation Instructions
The R3 platform uses the same programming instructions as the previous 2U MAS system. It also
shares the same side rail mounting instructions to install the system in a 19-inch rack. Refer to “2U
MAS Cabinet Mount” on page 1-4.
There are some minor differences with the front panel connections as well as the instructions for
installing optional PCI cards in the system.
PCI Board Installation Instructions
To install PCI boards into the 2 MAS system please follow these instructions;
1. Remove the top cover of the 2U MAS. Retaining screws can be found on the top front of the
cover and on the side of the chassis.
2. Locate and remove the seven retaining screws, as indicated below.
3. Carefully remove the card cage from the system.
4. Remove the blank panels for the card slot(s) that will be populated with PCI boards.
5. Install the PCI boards as required. Make sure that they are properly seated in their respective
board connectors.

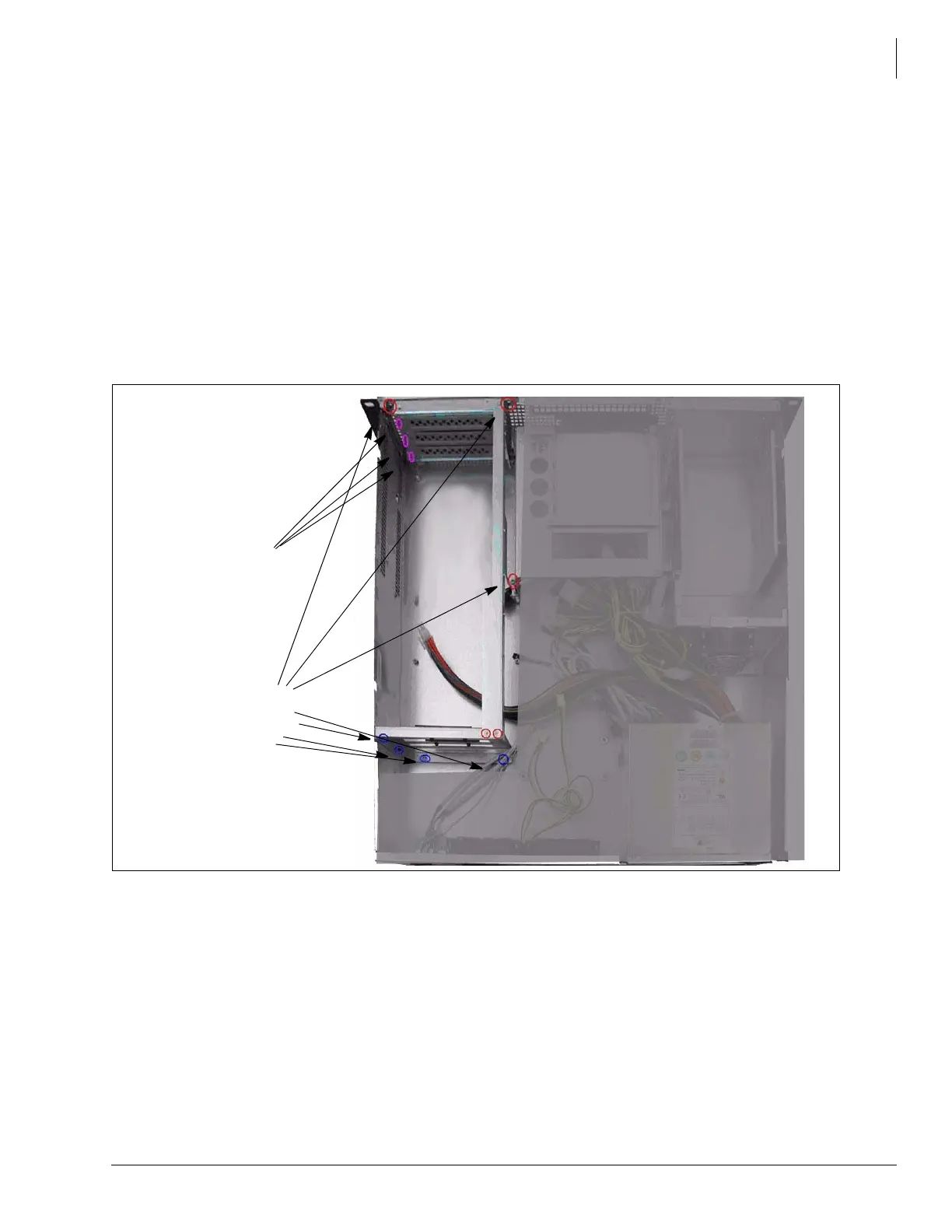

Card cage
Blank panel screws (4)
screws (7)
