Media Application Server Installation
2U MAS Physical Installation
1-4 STRATA CIX MAS INSTALLATION 06/09
Assemble the MAS
Fax Modem Board Installation
The 2U MAS supports up to two fax modem boards per system for a maximum of 16 fax modem
ports. If you are installing a fax modem board refer to “Fax Modem Board Installation” on page 6.
2U MAS Cabinet Mount
The 2U MAS can be fixed in a two pole rack or mounted on sliders in a four pole cabinet.
Two Post Rackmount
The MAS is attached to a two post rack using four screws through the brackets on the front of the
cabinet.
Four Post Rackmount
1. Secure the inner rails to the MAS chassis as shown in Figure 1 - 5.

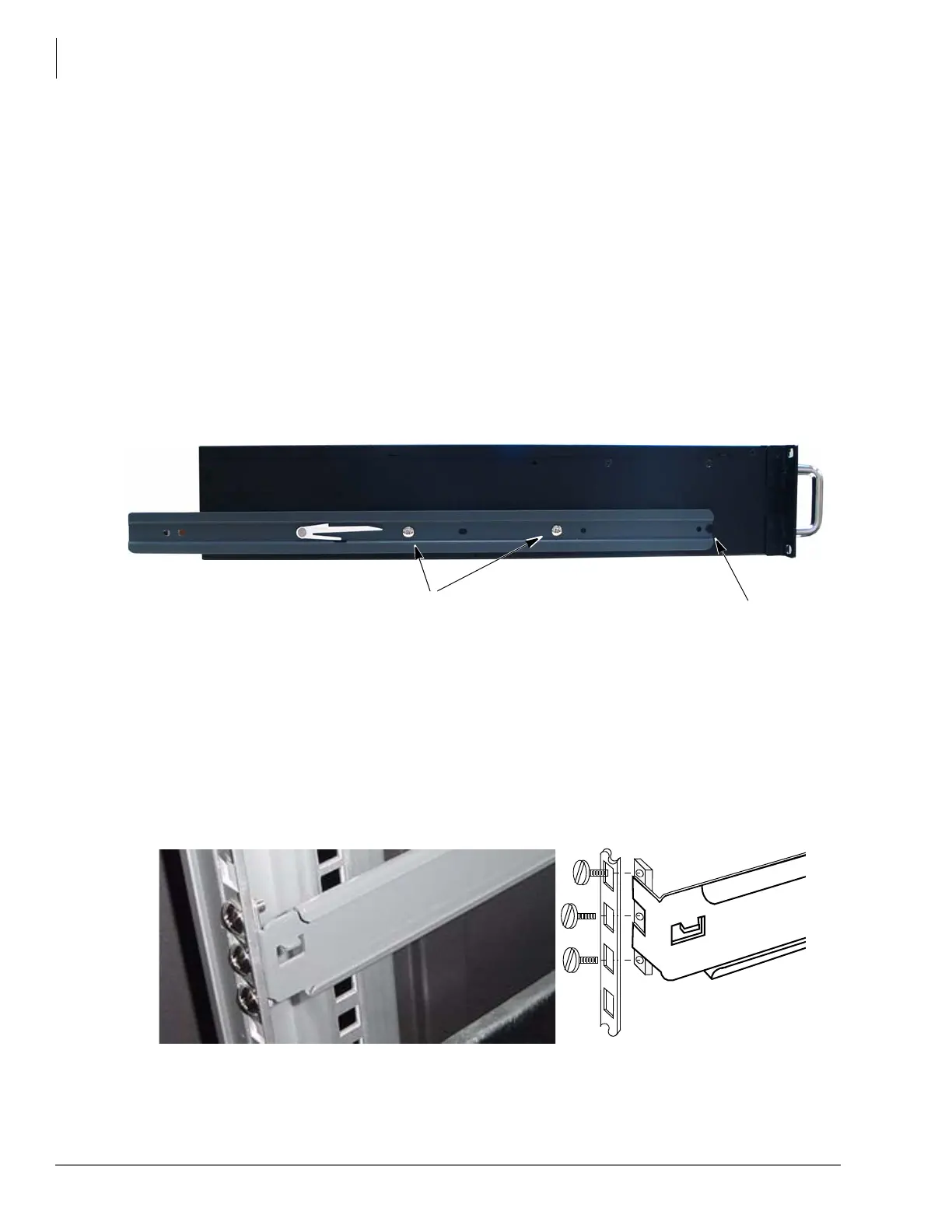

Figure 1 - 5 MAS with Rail Attached
2. Attach the outer rails to the front posts of the rack. Refer to Figure 1 - 6 and Figure 1 - 7.
• If the post has non-threaded holes use the M5 screws and M5 nut plates. The nut plate
must go behind the post. The rail flange goes between the nut plate and the post.
• If the post has threaded M5 holes use the M4 screws and M4 nut plates. The screws will not
engage the threads in the post. The nut plate must go behind the post. The rail flange goes
between the nut plate and the post.
Figure 1 - 6 Outer Rail Attachments
0006-MAS
Use the M4x4 (small) screws provided Notch in the rail
to attach the inner rail to the MAS chassis engages chassis tab.
Front Post
Rack Post
Nut Plate
Outer Rail
