Media Application Server Installation
2U MAS Physical Installation
Strata CIX MAS Installation 06/09 1-5

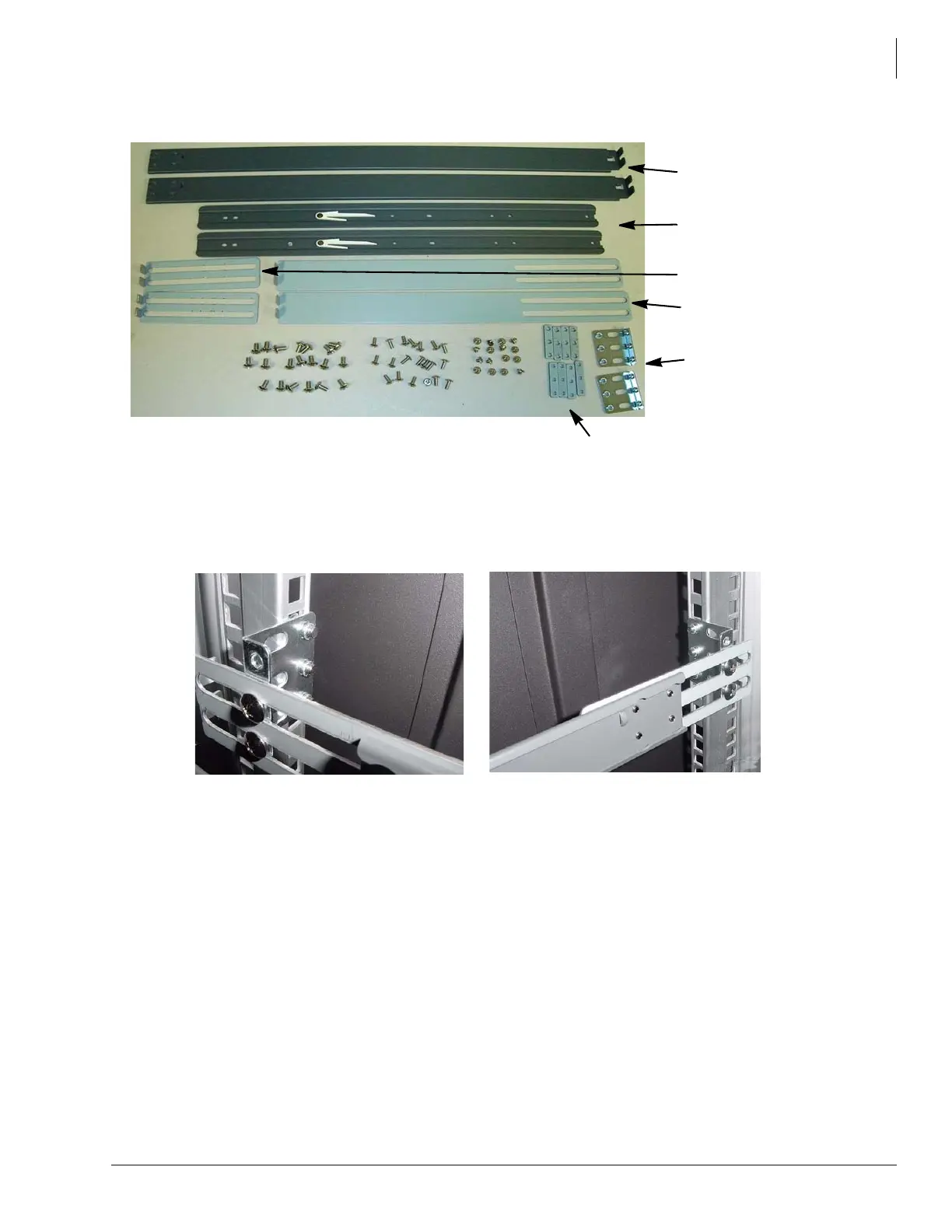

Figure 1 - 7 Rail Kit
3. Attach the rails to the rear posts of the rack. Use the five or 15 inch extensions as needed. If
needed use the L-brackets to attach the extension to the rear post. Refer to Figure 1 - 7 and
Figure 1 - 8.
Figure 1 - 8 L-Bracket to Attach Extension to Rear Post
4. Slide the MAS rails into the rails attached to the rack. Ensure that both side locks “click” into
place.
Note The cooling air flow through the MAS is front to back. Ensure that the front and rear grills
are not obstructed.
5. Connect IP cable from the 1 Gbit connector to the Network Switch. Refer to Figure 1 - 3. This
is the only IP connection to the MAS. Do not use the 10/100 Mbit connector.
6. Connect AC power cord. Refer to Figure 1 - 4.
Outer Rails
Inner Rails
Five inch Extension
15 inch Extension
L Brackets
M4 and M5 Nut Plates
Rear Post using Extension and L-Bracket
