Toshiba TOSVERT-130G2+ User Manual

4.5 Control/Driver Board for G2+4015 through G2+4220

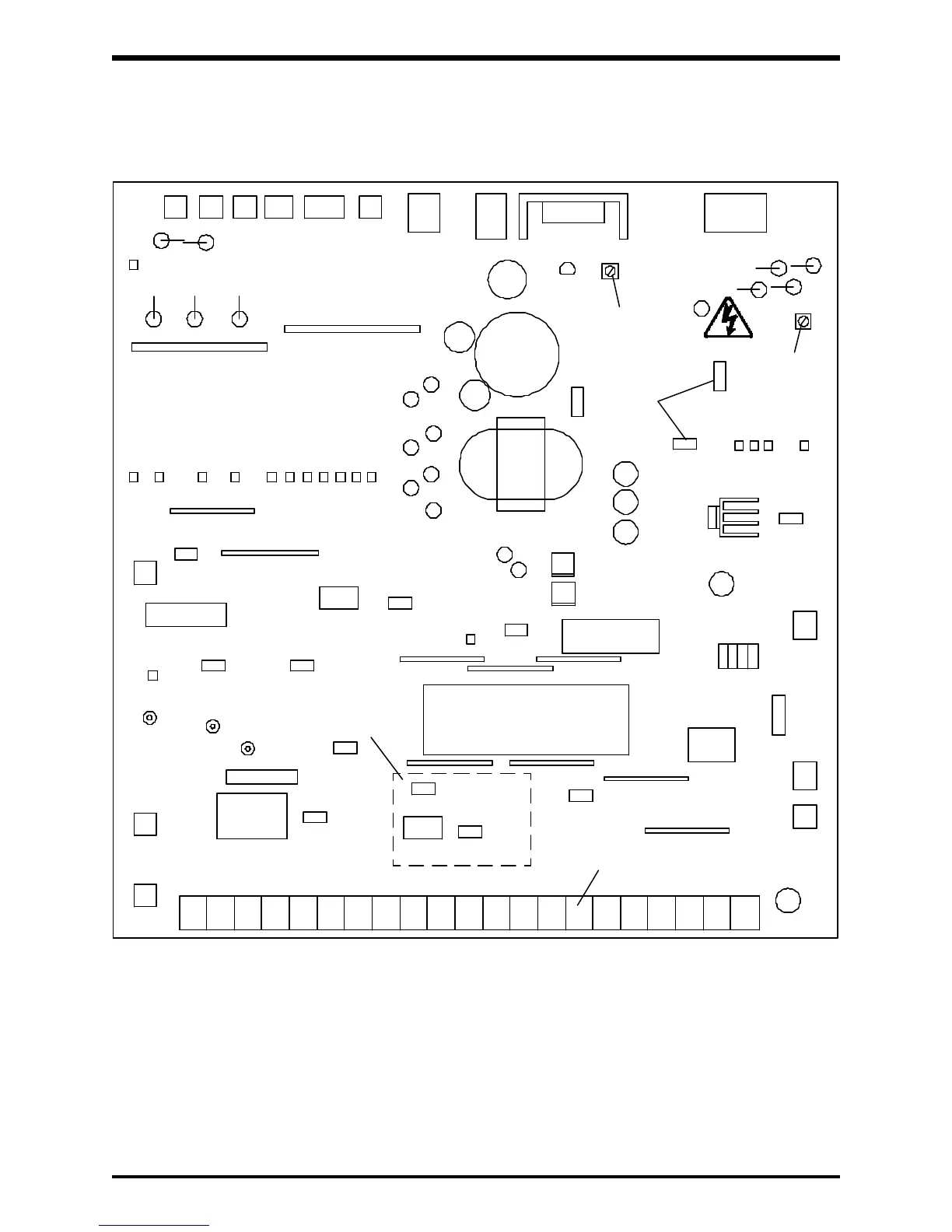

The following pictorial shows a layout of the major components located on the
control/driver board VF3B-0101.
4 - 8
TOSHIBA
CN14
See Detail 1
Page 4-11
JP2
JP1
FL-RY
CN16
CN10
CP1
CP2
CP3
CN12
CN11
CN15
See Terminal Block Detail
Page 4-11
JP3
CN6
Charge
LED
CN19
CN13
CN8
CN7
CN5
CN4
CN20CN3CN2CN1
RH1
RH2
JP10
Do Not
Adjust
Do Not
Adjust
Note:
1) Potentiometer RH1 is used for control power supply stabilization. This adjustment is
factory set and any ADJUSTMENT BY THE USER SHOULD NOT BE ATTEMPTED.
2) Potentiometer RH2 is used for voltage detection level bias. This adjustment is factory
set and any ADJUSTMENT BY THE USER SHOULD NOT BE ATTEMPTED.
3) CP1, CP2, and CP3 are service testpoints.
4) Do not adjust JP3 and JP10.
5) Charge LED indicates charged capacitors. DO NOT TOUCH internal parts if lighted.
Do Not
Adjust
