Toshiba TOSVERT-130G2+ - Layout Dimensions for Installation in NEMA 12 Enclosures

TOSHIBA
10 - 2
C
L
C
L
.28(7) DIA. (TYP 4)
Cabinet Back
Minimum .5(13) air space
between
heatsink fins and nearest
obstacle
E
E
C
L
F
J DIA. (TYP 4)
C
L
A
F
C
L
A
C
L
2010 - 2055
4015 - 4080
2080 - 2330
4110 - 415K

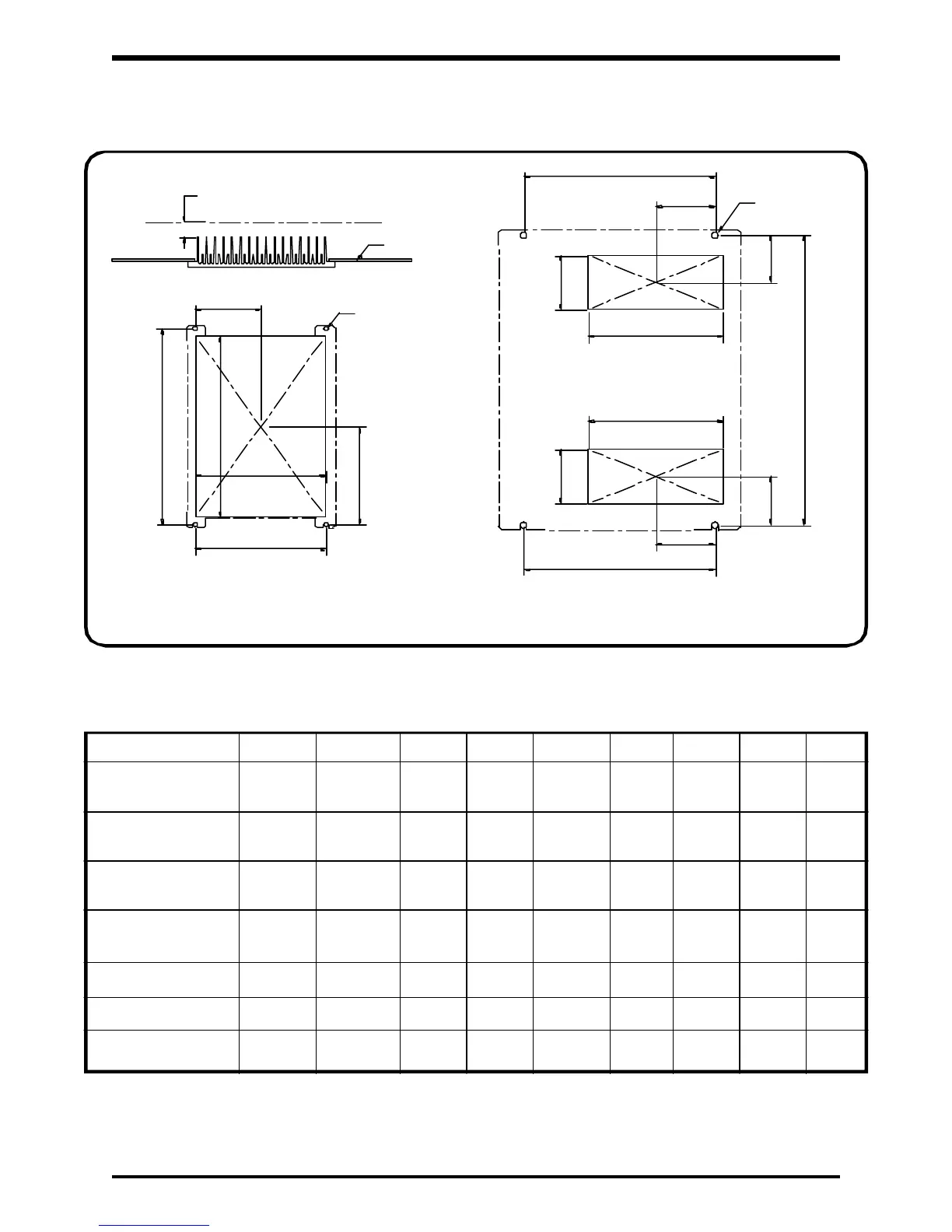

10.2 Layout Dimensions for Installation in NEMA 12 Enclosures with
optional kits.
3.84(98)
6.13(156)
12.25(311)
11.31(287)
7.66(195)
7.69(196)
G
DC
H
B
Models A B C D E F G H J
G2+2080 - G2+2110 11.25(286) 18.09(459) 3.38(86) 3.38(86) 7.91(201) 3.48(88) 2.94(75) 3.03(77) 0.38(10)
G2+4110 - G2+4160
G2+2160 - G2+2220 11.25(286) 20.09(510) 3.38(86) 3.38(86) 7.91(201) 3.4888) 2.94(75) 3.03(77) 0.38(10)
G2+4220
G2+2270 14.25(362) 22.75(578) 3.38(86) 3.38(86) 9.50(241) 4.31(109) 3.06(78) 3.06(78) 0.50(13)
G2+4270 - G2+4400
G2+2330 12.63(321) 35.34(898) 5.13(130) 5.13(130) 11.45(291) 3.51(89) 4.09(104) 4.13(105) 0.63(16)
G2+4500 - G2+4750
G2+410K - G2+412K 12.63(321) 55.81(1418) 5.13(130) 5.13(130) 11.45(291) 3.51(89) 5.31(135) 5.13(130) 0.69(18)
G2+415K 12.63(321) 55.81(1418) 5.13(130) 5.13(130) 11.45(291) 3.51(89) 5.31(135) 5.13(130) 0.69(18)
* G2+420K - G2+430K - - - - - - - - -
DIMENSIONS in inches(millimeters)
* Not applicable in this model.
