TOSHIBA
7 - 9

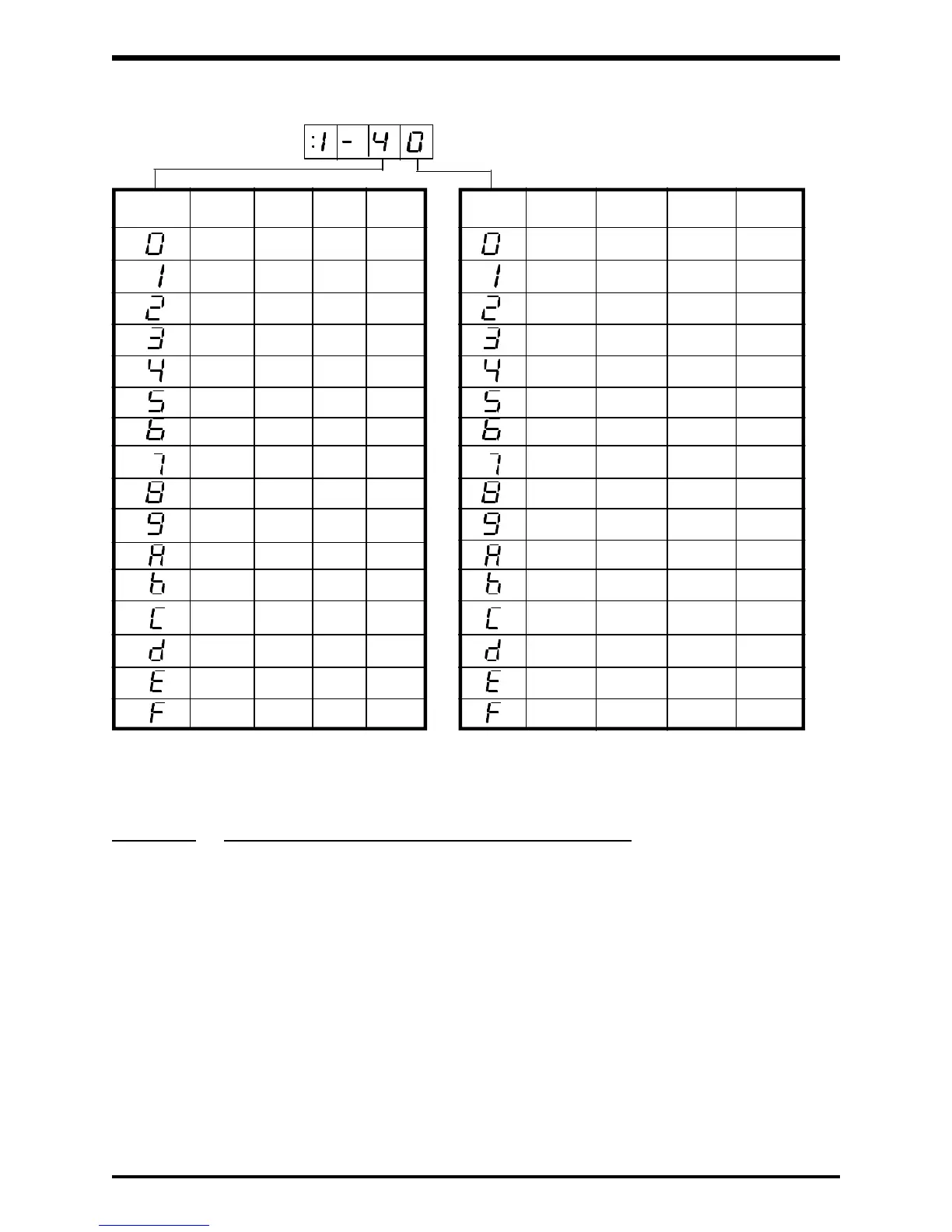

7.5.3 Input Terminal Status Code
Display RR-CC ST-CC F-CC R-CC Display SS1-CC JOG-CC AD2-CC RST-CC
(SS2) (SS3)
OFF OFF OFF OFF OFF OFF OFF OFF
OFF OFF OFF ON OFF OFF OFF ON
OFF OFF ON OFF OFF OFF ON OFF
OFF OFF ON ON OFF OFF ON ON
OFF ON OFF OFF OFF ON OFF OFF
OFF ON OFF ON OFF ON OFF ON
OFF ON ON OFF OFF ON ON OFF
OFF ON ON ON OFF ON ON ON
ON OFF OFF OFF ON OFF OFF OFF
ON OFF ON ON ON OFF ON ON
ON ON OFF OFF ON ON OFF OFF
ON ON OFF ON ON ON OFF ON
ON ON ON OFF ON ON ON OFF
ON ON ON ON ON ON ON ON
ON OFF ON OFF ON OFF ON OFF
ON OFF OFF ON ON OFF OFF ON
ON: Implies a closed contact or short between terminals.
OFF: Implies an open contact or no connection between terminals.
Terminal
Connections Inverter's Status when terminal connections are closed (ON).
RR-CC Connect terminals PP-CC (see terminal connections page 8 -12).
ST-CC RUN ENABLED
F-CC FORWARD RUN ENABLED
R-CC REVERSE RUN ENABLED
SS1-CCMULTI-SPEED RUN ENABLED
SS2-CCMULTI-SPEED RUN OR JOG RUN ENABLED (Dependent upon SS2's usage)
SS3-CCMULTI-SPEED RUN OR ACC/DEC 2 ENABLED (Dependent upon SS3's usage)
RST-CCRESET MODE ENABLED (Reset occurs after momentary contact closure)
Note:
If both F-CC and R-CC are on then a reverse run is enabled.
