7.5.2 Tripped Status Monitoring (Cont'd)
In the event of a trip, the following statuses could be observed provided
monitoring is done prior to resetting the inverter. These statuses reflect the
conditions which existed at the time the inverter tripped.
Additional Tripped Status Monitoring
7 - 8

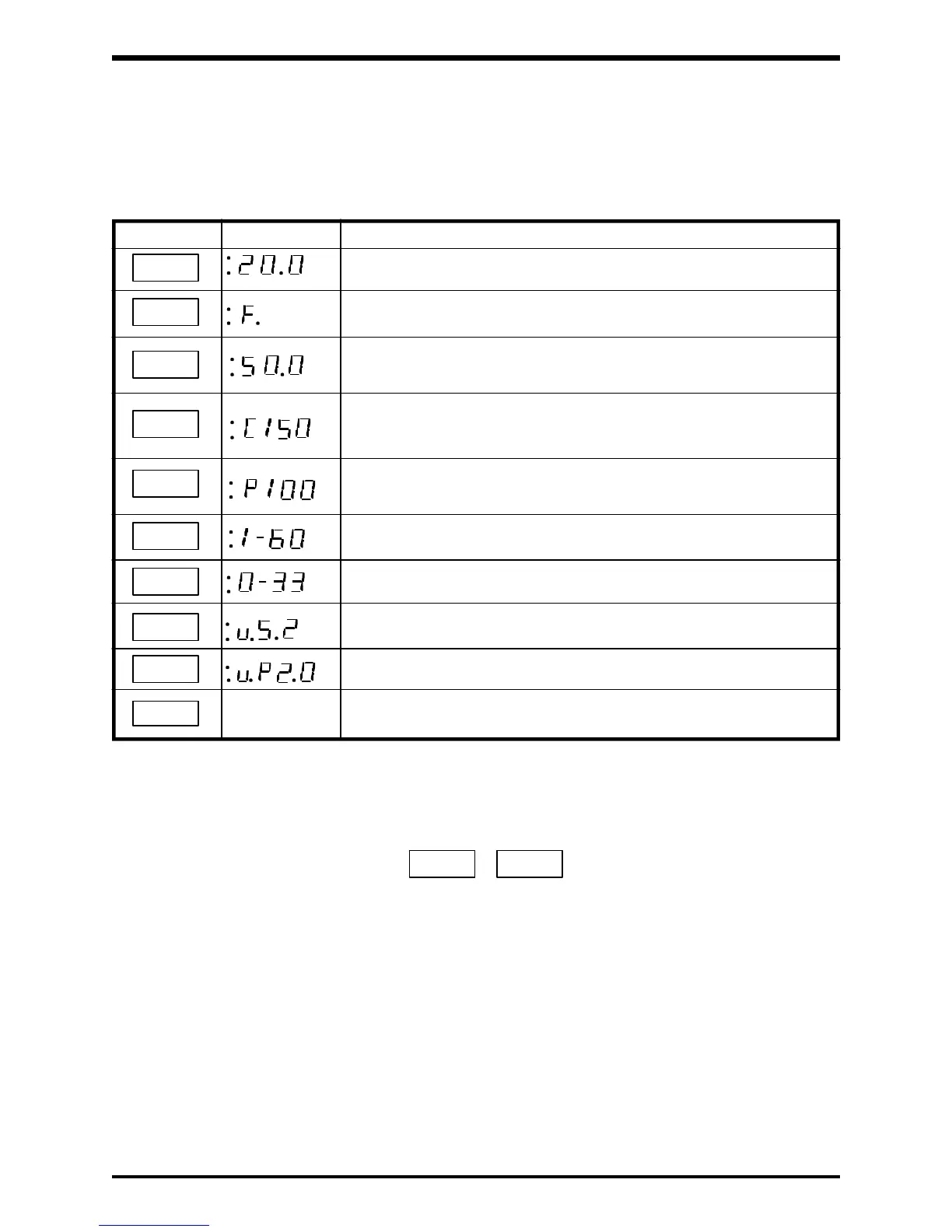

Key Display Status
Output terminal status code at trip. See section 7.5.4
Keypad's software version
Original fault Returns to the original display.
display
Operating frequency at trip was 20.0Hz.
The set value of operating frequency at trip was 50.0Hz.
The output current at trip was 150% (150% of the inverter's rated
output current).
The output voltage at trip was 100% (100% of the inverter's rated
voltage).
Input terminal status code at trip. See section 7.5.3
Rotating direction at trip was in the forward direction.NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
NEXT
Note:
Resetting the drive after a trip can be accomplished either of two ways:
1) Reset from panel - press
2) Reset from remote - momentary contact closure between terminals RST and CC.
CLR WRT
