7 Jump frequency point #2 0 to Max. frequency Hz 0 8-23
Jump frequency point #1 0 to Max. frequency Hz 0 8-23
Multi-function input 0: SS2, SS3
terminal selection 1: JOG, SS3 2 8-24
2: SS2, AD2
3: JOG, AD2
8 Mult-function output 0: LL, UL
terminal selection 1: LOW, UL 3 8-24
2: LL, RCH
3: LOW, RCH
Jump frequency band #3 0 to Max. frequency Hz 0 8-23

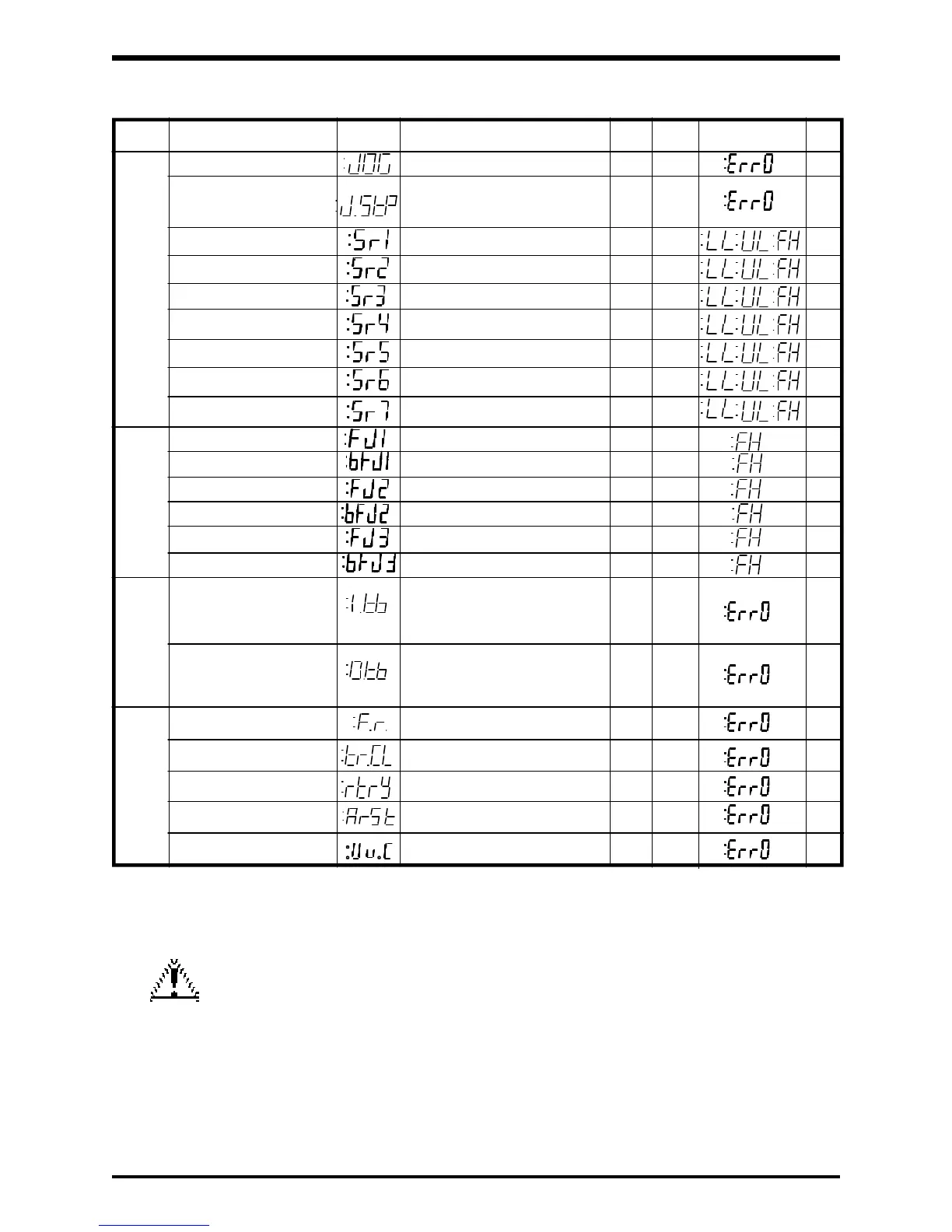

6.7 First Function Parameters (Cont'd)
Function Function Adjustment Factory Error Ref.
No. Name Display Range Unit Set Message Page
6 - 9
Jog run frequency 0 to 20 Hz 5 8-23
Jog stop control pattern 0: Deceleration stop
1: Coast stop 0 8-23
2: DC injection stop
Multi-speed frequency #1 LL to UL setting value Hz 0 8-23
Multi-speed frequency #2 LL to UL setting value Hz 0 8-23
6 Multi-speed frequency #3 LL to UL setting value Hz 0 8-23
Multi-speed frequency #4 LL to UL setting value Hz 0 8-23
Multi-speed frequency #6 LL to UL setting value Hz 0 8-23
Multi-speed frequency #7 LL to UL setting value Hz 0 8-23
Multi-speed frequency #5 LL to UL setting value Hz 0 8-23
Jump frequency band #1 0 to Max. frequency Hz 0 8-23
Jump frequency band #2 0 to Max. frequency Hz 0 8-23
Jump frequency point #3 0 to Max. frequency Hz 0 8-23
Forward/Reverse run 0: Reverse 1 8-24
selection 1: Forward
9 Fault trip saving 0: Cleared when powered off 0 8-24
selection 1: Data retained when powered off
Retry (Auto-reset) 0: Off 0 8-24
1: On
Auto-restart 0: Off 0 8-25
1: On
Regeneration power ride 0: Off 0 8-25
through control 1: On *
CAUTION
* Approximately 100 mS
The acceleration and deceleration times should not be
set below 3 seconds in the 75-300 horsepower units.
