Inverter number 0 to 31 0 8-28
2ND
7
0: 150 0: 1200
1: 300 1: 2400
Baud rate RS232 2: 600 RS485 2: 4800 0 8-28
3: 1200 3: 9600
4: 2400 4: 19200
RS232C data bits 0: 7 bits 0 8-28
1: 8 bits
Parity check and stop bit 0 to 5 (SEE TABLE #2 PG. 6-12) 0 8-28
Inverter to AC line transfer 0: Off 0 8-28
operation signal 1: On
Pattern run activation 0: Off 0 8-28
mode 1: Terminal operation
2: Touch pad operation
3: Computer communication
Time unit 0: Seconds 0 8-28
1: Minutes
Cycle times 0 to 255 0 8-28
(255: Infinity operating)
2ND
8
Pattern drive time 0 to 8000 secs/ 0 8-28
#1 to 7 to mins
Command mode selection 0: Disables all inputs
1: Terminal input only
2: Touch pad only
3: Enable changing of terminal
& touch pad
4: Host input only
5: Enable changing of terminal 7 8-28
& host input
6: Enable changing of touch
pad & host input
7: Enable changing of all
input modes
2ND Frequency reference setting 0: Disable all input
9 mode selection 1: Terminal input only
2: Touch pad only
3: Enable changing of terminal
& touch pad
4: Host input only
5: Enable changing of terminal 7 8-28
& host input
6: Enable changing of touch
pad & host input
7: Enable changing of all
input modes
Parameter setting 0: Disable all input
mode selection 1: Touch pad only
2: Host input only 3 8-28
3: Enable changing of touch
pad & host input
6 - 11

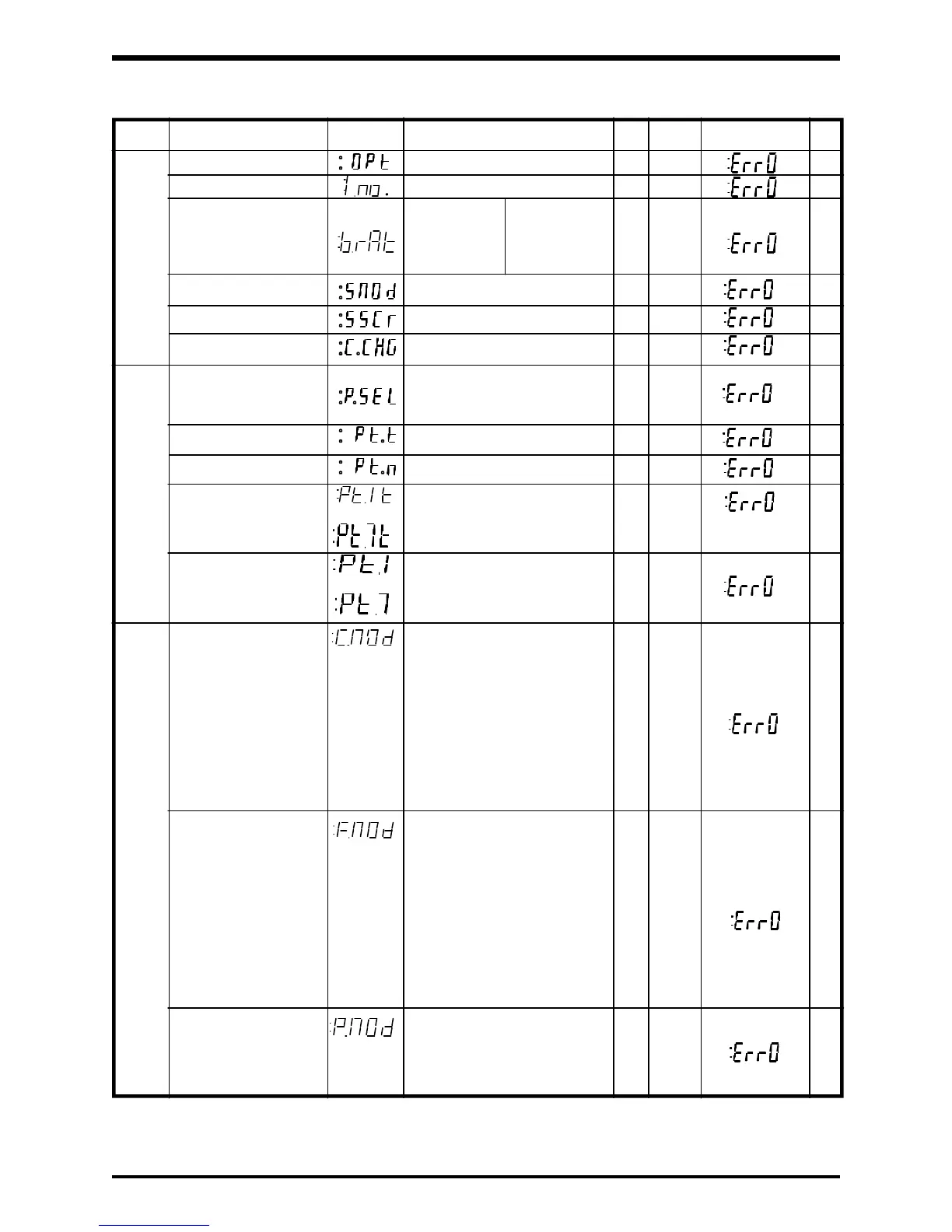

6.8 Second Function Parameters (Cont'd)
Function Function Adjustment Factory Error Ref.
No. Name Display Range Unit Set Message Page
Option selection 0 to 12 (SEE TABLE #1 PG. 6-12) 0 8-28
Pattern drive characteristics 0: Forward run, #1 ACC/DEC
#1 to 7 to 1: Forward run, #2 ACC/DEC 0 8-28
F/R, ACC/DEC 2: Reverse run, #1 ACC/DEC
3: Reverse run, #2 ACC/DEC
