INTERFACE MANUAL
Designation CYC_END (Cycle end)
Output terminal CN6–12 pin
Signal name 258
Signal logic
Signal judgment
Output terminal
ON OFF
High O
Low
O
Function This signal turns on after the stop of 1-cycle automatic
operation only when the CYCLE signal is made valid in the
program execution (RUN) mode and an automatic operation is
executed.
This signal can always be used, irrespective of the master
mode selected by means of the MODE switch.

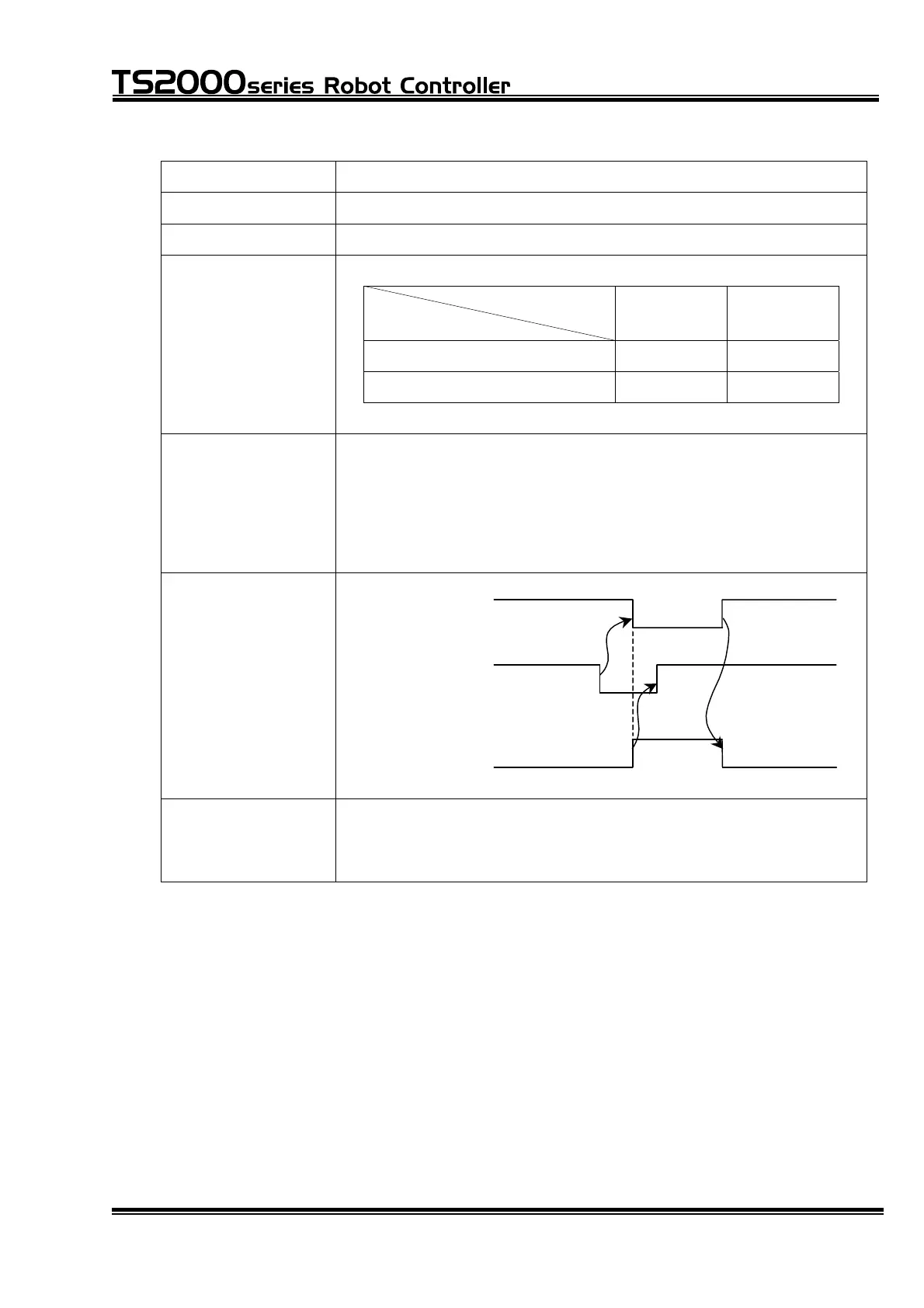

Signal timing
AUTORUN (O)
CYCLE (I)
CYC_END (O)
Cautions
1. This signal turns off when the RUN mode takes effect.
2. This signal turns on also when the cycle operation has
been stopped by the STOP, BREAK or ALARM signal.
STE 71367
– 75 –
