5.12 MOUNTING INSTRUCTIONS FOR LOCK 100
QUICK INSTALLATION TO DIN RAIL
The bottom of the Lock has integrated hooks that allow a quick
installation to DIN rail with the LAN/WAN ports facing upwards.
SECURE INSTALLATION TO DIN RAIL
For environment where a more robust installation method is
needed or another installation orientation is wanted, the Lock
can be installed to DIN rail with the clip and screws included in
the sales package. There are M4 threaded mounting holes on the
bottom of the equipment. The screws shall be placed through the
bottom sticker which has the hole locations indicated. Use only the

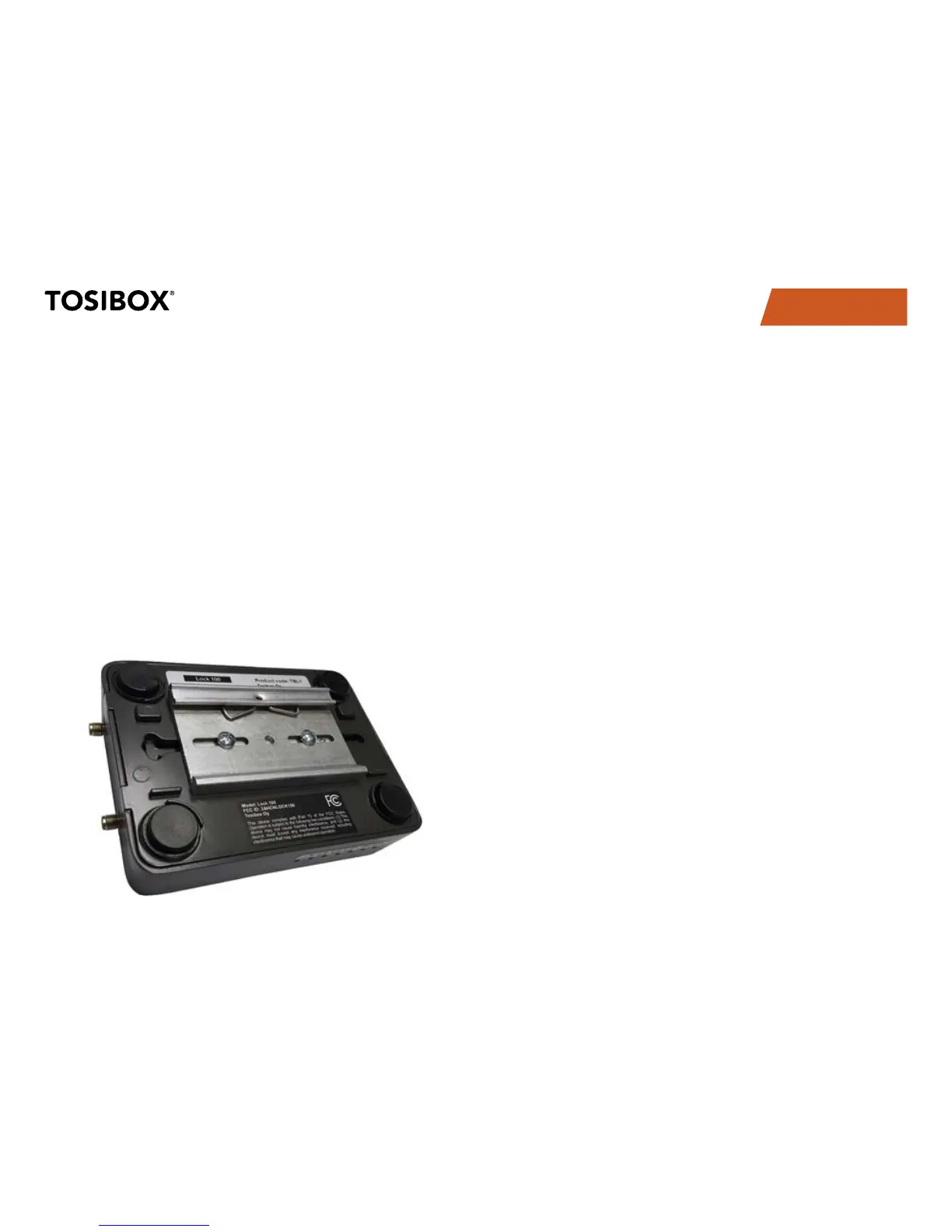

Lock 100 with DIN clip
screws included in the sales package. Using longer screws pose
a risk of damaging the device internal electronics. More versatile
installation options to DIN rail, such as angle brackets are available
from an authorized TOSIBOX
®
reseller as an accessory.
WALL MOUNTING
The bottom of the Lock has two keyhole shaped openings that allow
the Lock to be installed on the wall with countersunk screws.
5.13 MOUNTING INSTRUCTIONS FOR LOCK 200
INSTALLATION TO DIN RAIL
The Lock can be installed to DIN rail with the clip and screws
included in the sales package. There are M3 threaded mounting
holes on three sides of the equipment. For attachment on either of
the narrow sides, the screws with length of 10 mm shall be used.
For attachment on the bottom of the Lock, the screws with length
of 6mm shall be used. The screws shall be placed through the
bottom sticker which has the hole locations indicated.
Please see pictures 1 - 4 for the mounting options.
