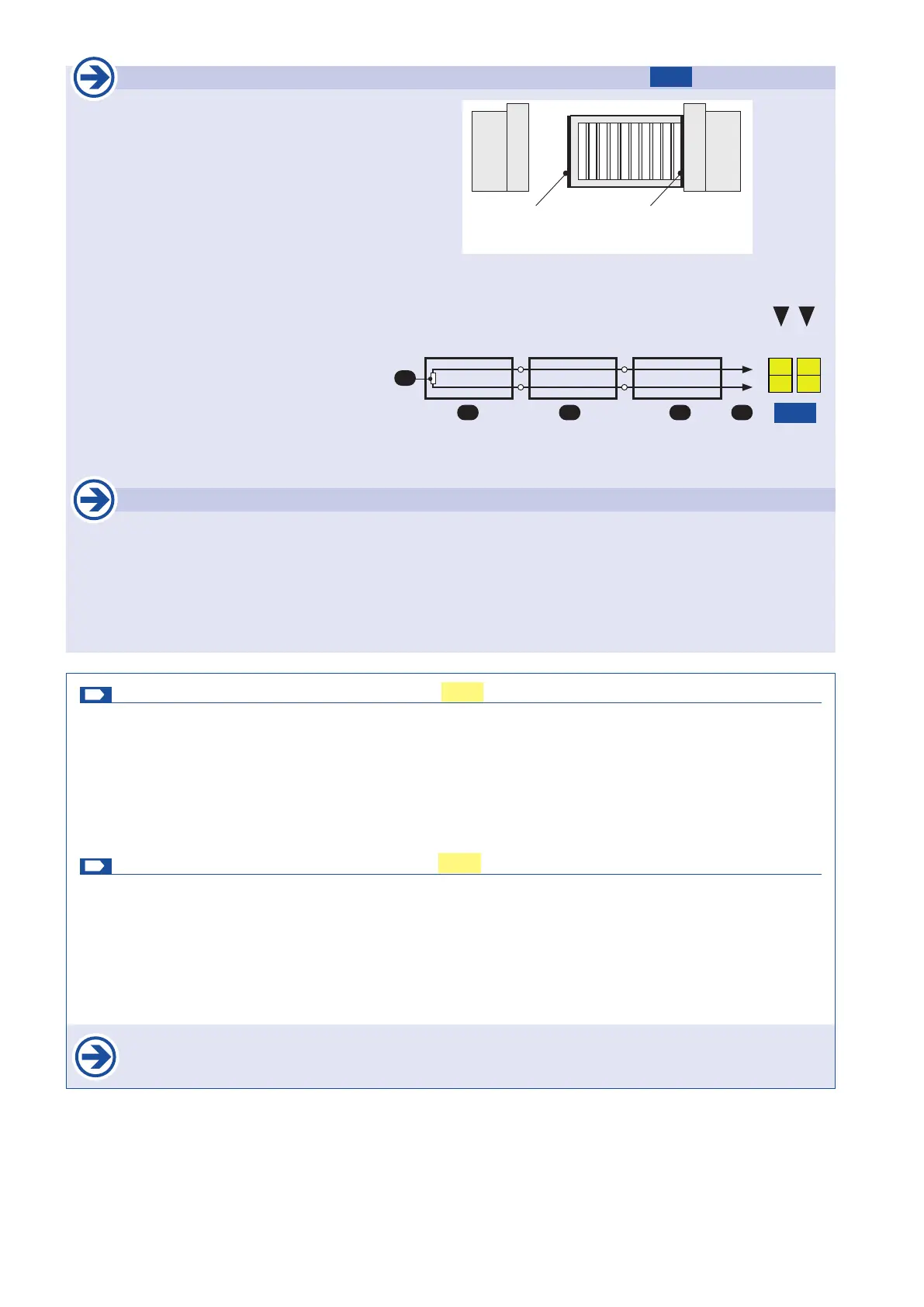

Safety sensing edges (main and side edge)
M/S
• OBSTACLE DETECTION: when a contact strip/safety
edge is triggered/activated then a change of direction is
e󰀨ected for 1 second. Then the gate stops.
Hence if safety edges have to react on obstacles in closing movement have to be serially connected
to the terminals of the main safety edge.
Safety edges that have to react on obstacles in opening movement have to be serially connected
to the terminals of the side safety edge.
Example: W 8,2kΩ nal resistance
1 Final edge
2+3 passage edge
S to control board
When connecting one safety edge a nal edge (1) has to be used.
Side safety sensing edge
Function:
safety during opening
Main safety sensing edge
Fuction:
Safety during closing
1
W
2 3 S
50
52
50
51
main safety sensing edge Side safety sensing edge
M/S
• Connection and detailed information of radio transmission system TX 310 see according manual.
• C onnection and detailed information of inductive system TX 400i see according manual.
G
Main safety sensing edge (terminal 50/52)
M/S
Safety
 activ: to be selected if the contact strip (8,2kOhm) of the main safety sensing edge should be evaluated.
 not activ: to be selected if the contact strip of the main safety sensing edge should NOT be evaluated.
 Radio transmission TX: to be selected if safety sensing edge (8,2kΩ) of main entrance edge should be evaluated
with the radio transmission system TX 310.
 TX 400: to be selected if safety sensing edge (8,2kΩ) of main entrance edge should be evaluated with the system
TX 400i.
G
Side safety sensing edge (terminal 50/51)
M/S
Safety
 activ: to be selected if the contact strip (8,2kOhm) of the side safety sensing edge should be evaluated.
 not active: to be selected if the contact strip of the side safety sensing edge should NOT be evaluated.
 Radio transmission TX: to be selected if safety sensing edge (8,2kΩ) of side entrance edge should be evaluated
with the radio transmission system TX 310.
 TX 400: to be selected if safety sensing edge (8,2kΩ) of side entrance edge should be evaluated with the system
TX 400i.
Important
• After giving the impulse to program the end positions, no other impulse must be given. Also the safety devices
mustn´t be triggered. This would lead to an interruption of the programming process.
• Therefore, the mechanical stops must be set so that the existing contact strips cannot be triggered.
