tousek PULL T8 - Control Board Operations; Control Board Component Identification

- 8 - tousek / EN_PULL-T8-T10-T15-M-S_02 / 25. 03. 2020
Ringkabelschuh für
Erdungsanschluss
Grounding
The grounding connection is made
on the operator housing with the
designated grounding screw!
Elements of control board
(K) Terminal blocks
(KM) Motor clamps
(C) Condenser plug
(S) Sensor plug
(D) Display plug
(B) System connector (for connection
Master/Slave)
(N) Connection emergency release cable
(FE) Slot for optional radio receiver
(see page 26 for connection)
(ZM) Connection slot for optional modulel
(see page 23 for connection)
(F) Safety fuse T 3,15A
3. Control board Sliding gate operator PULL T8, -T10, -T15 / Master-Slave
Attention
During connection, adjustment and
maintenance works please take care,
that the electronic circuit board won´t
be damaged by moisture (rain).
Important
The optional „tousek-connect“ or the
„tousek service interface“ must
be connected with socket (D)!

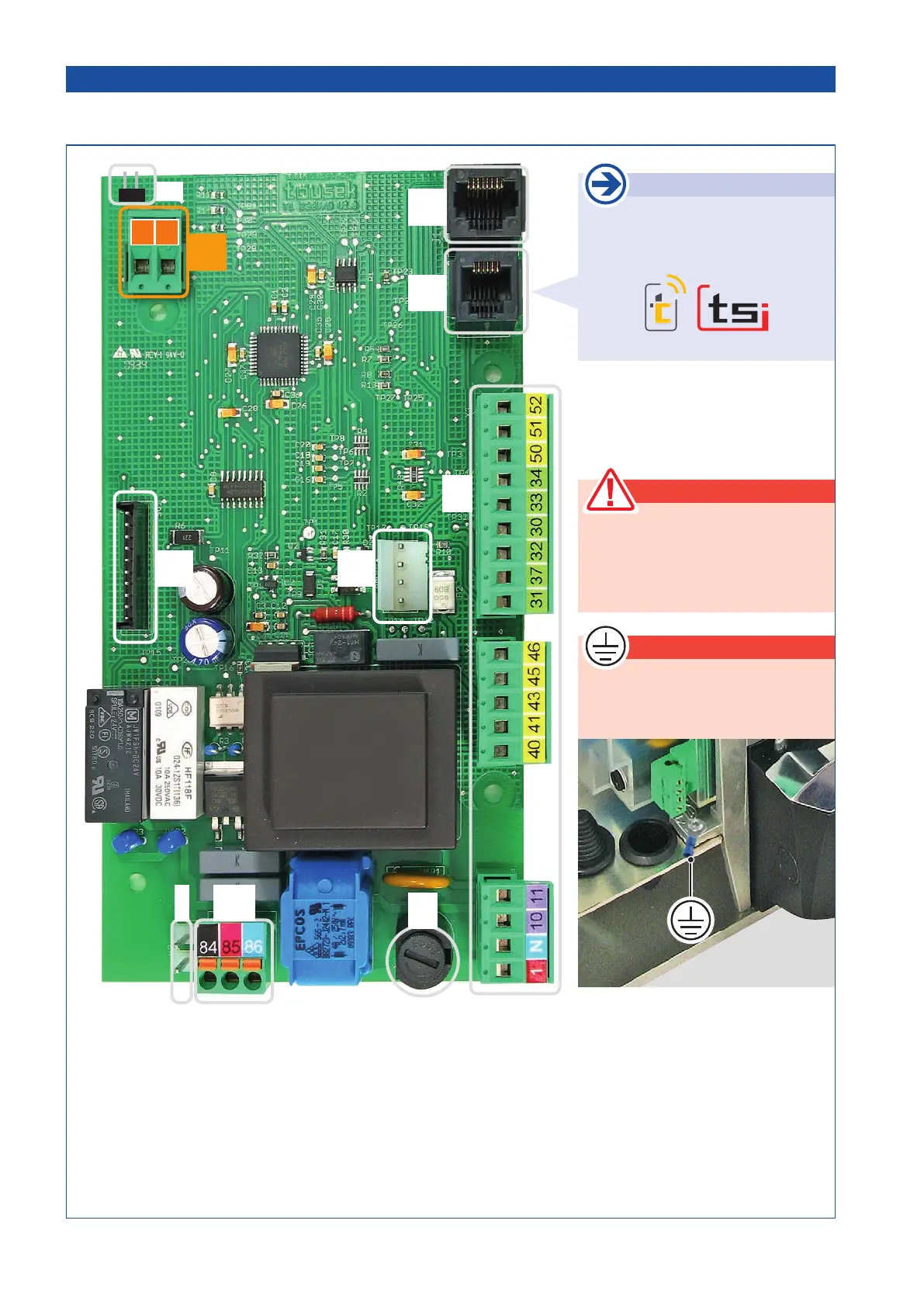

Overview of the control board
K
KM
F
FE ZM
S
D
C
N
88 89
B
