tousek PULL T8 - Radio Receiver Connection

- 26 - tousek / EN_PULL-T8-T10-T15-M-S_02 / 25. 03. 2020
6a
s
s
A
D
D
E
FE
Important
• With the use of the 2-channel-receiver the second
channel takes over the function of the pedestrian
entry mode switch.
• For programming of receiver please see manual for
radio receiver.
• Disconnect the power supply.

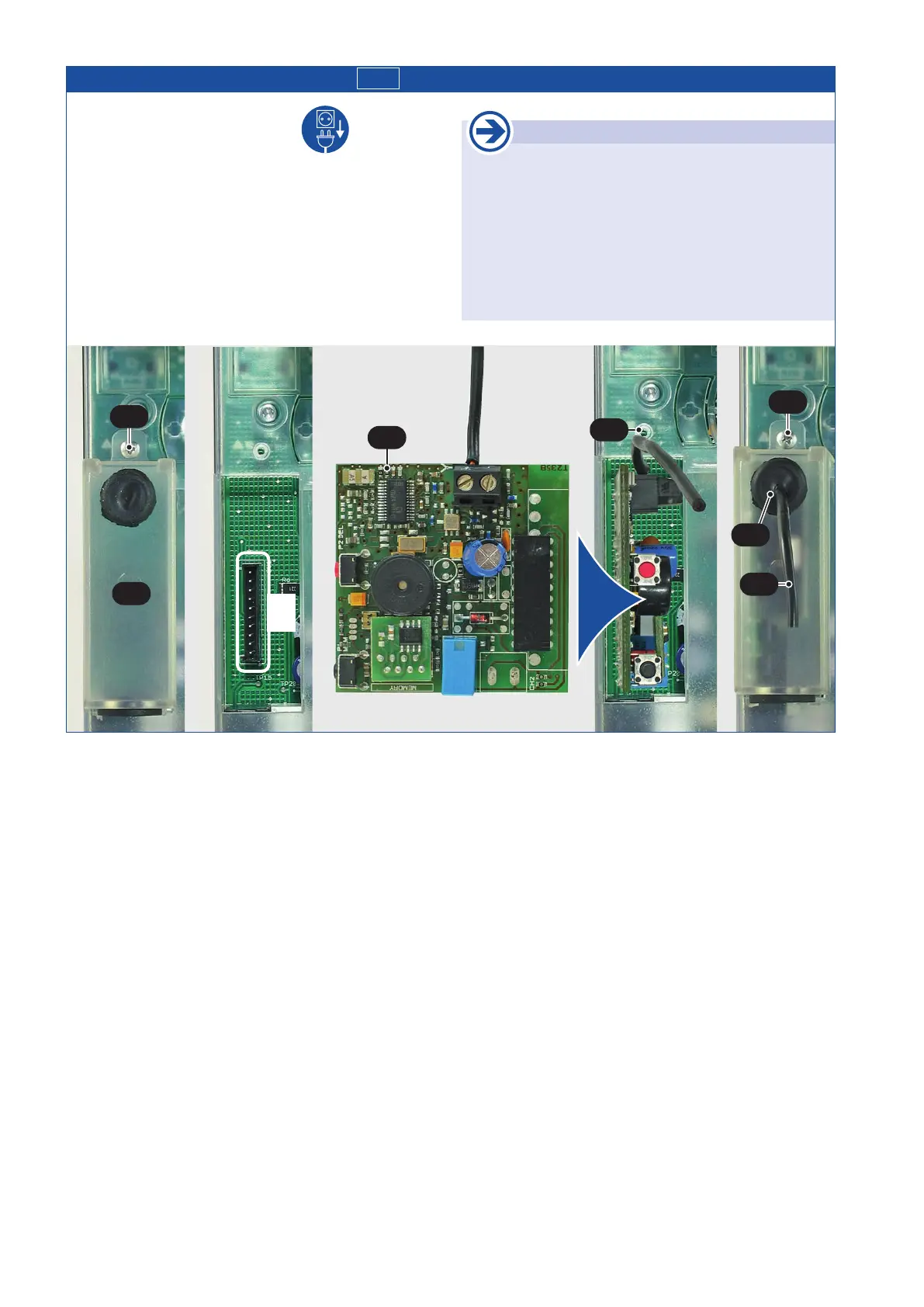

• Remove radio cover (6a) after loosening the bolt (s).
• Plug-in the receiver printed circuit board (E) RS433/868-
STN1 (1 channel) or RS433/868-STN2 (2 channels) into
the corresponding slot (FE) as shown in the picture.
• Slide the antenna cable (D) through the output connection
(A).
• Place the radio cover (6a) back and x it with bolt (s).
• To increase the range an external antenna FK433 or FK868
can be connected.
6. Connecting the receiver
M
Sliding gate operator PULL T8, -T10, -T15 / Master-Slave
