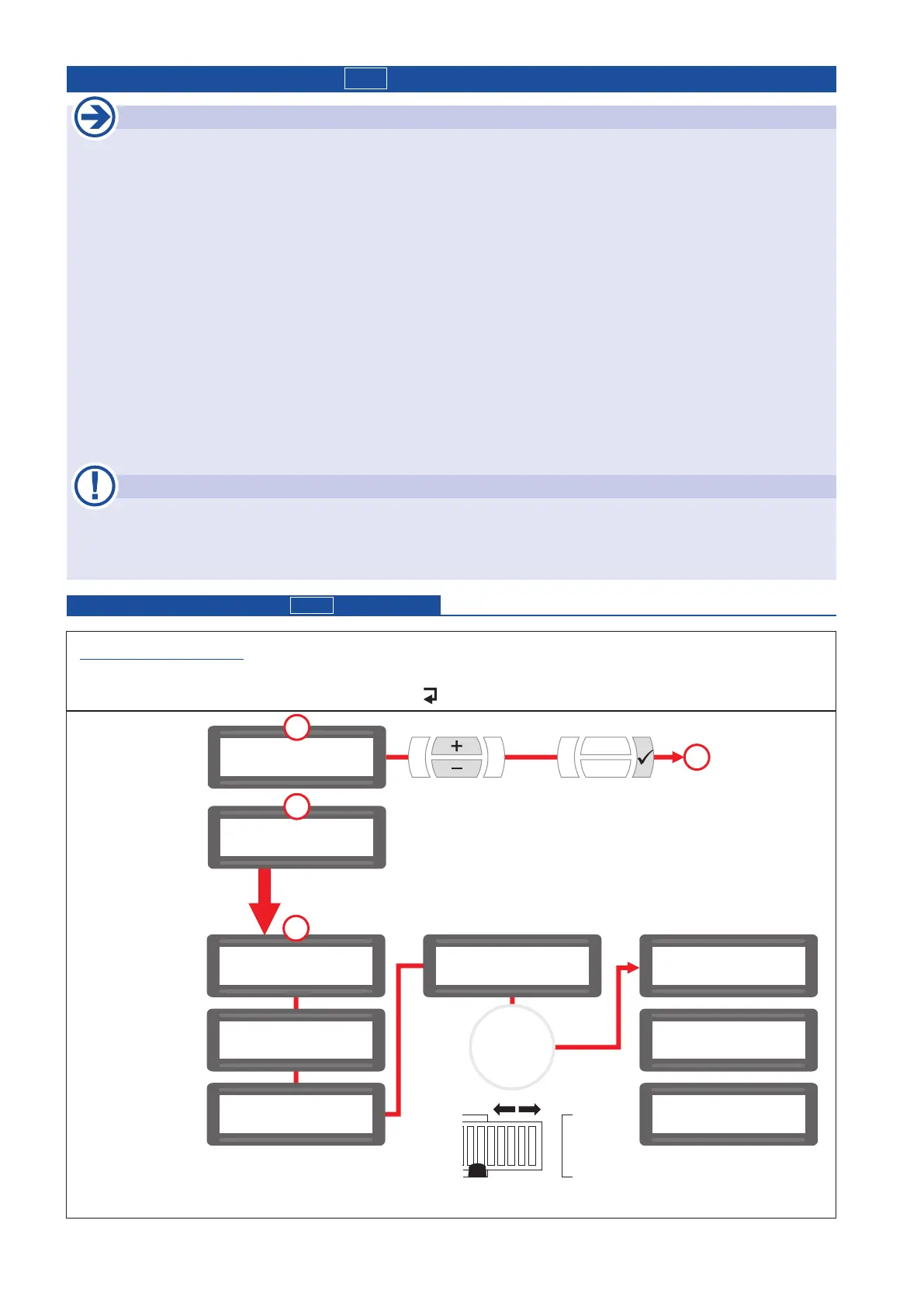

8. Putting into operation
M/S
PULL T8, -T10, -T15 / Master-Slave
Important: preparation works
• Connect command devices of the master operator, safety equipment and motors following the safety regulations.
Attention: if no stop button connected at the master/slave control unit, terminals 31/37 of the corresponding
control (master and / or slave) must be bridged
• Set the mechanical end stops so that the contact strips don´t get triggered, because this would lead to an er-
ror message.
•
Release the operators ( emergency release) and bring both wings manually in half-open position – then lock the motors
again.
• Switch on the system (assuming proper connection).
• Important: Putting into operation in Impulse mode (standard setting) and not in dead man mode.
• For the initial commissioning rst select the display language (in Master and Slave), then select the main operating
parameters in Master /basic settings. Then a system check will be carried out.
•
After a successful system check the end positions get detected automatically (after giving an impulse to the Master).
• Important: After giving the impulse to program the end positions, no other impulse must be given. Also the safety devices
mustn´t be triggered. This would lead to an interruption of the programming process.
Note: During operation, if the basic setting for the end positions OPEN /CLOSE (= -5), the mechanical stops
don´t get reached completely (this will happen only by changing this value to 0).
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
Language:
English
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
Tousek Digital
2
1
2
scroll conrm
LANGUAGE SELECTION
• Can be selected during initial operation (hence after reset to factory settings).
• Can be also chosen by pressing the ESC button
( ) for 5s, from any position in menu.
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
System test
Photocell
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
System test
Main safety edge
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
System test
Side safety edge
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
End positions
being detected
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
Open position
being detected
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
Close position
being detected
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
Ready for use
3
Impulse from
Master
Slave-control board
S
Putting into operation
Important (in case of replacement of the control)
• If for any reason one of the two controls has to be replaced, please select the menu point “delete positions” in
“Diagnosis”, because otherwise a fatal system crash may happen!
