tousek / EN_PULL-T8-T10-T15-M-S_02 / 25. 03. 2020 - 25 -

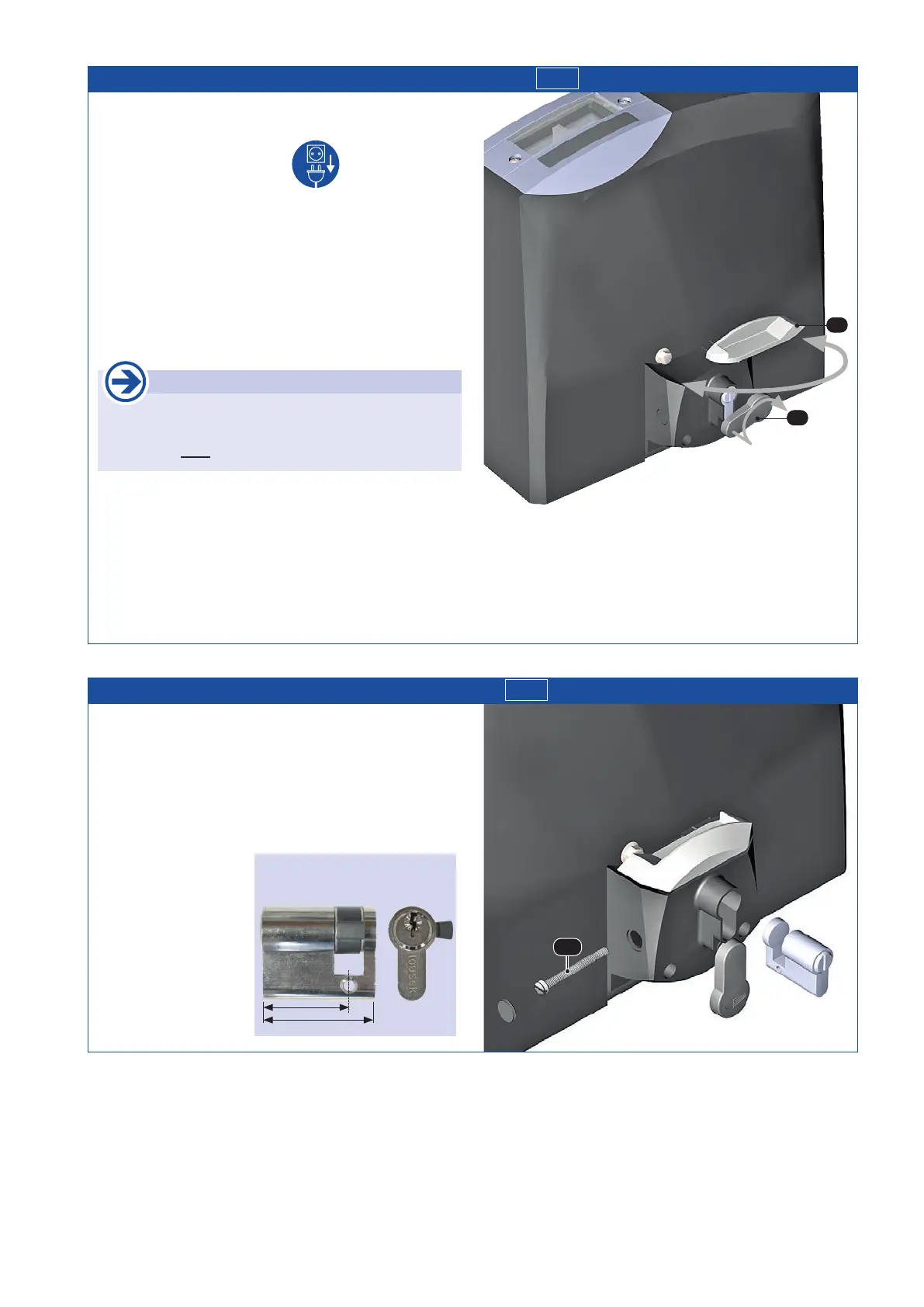

Handle in picture shows unlocked position
In case of a power failure or other defect the drive pinion
can be disengaged from the gearmotor as follows:
• Switch o power supply
• Slide key-cover (A) slightly to the front and turn it away.
Insert the key and turn it clockwise to its limit stop (the
emergency release mechanism can be key-locked both
in the engaged and in the disengaged position).
• Turn the handle 180° counter-clockwise (viewed from
above). The gate can now be manually opened or closed.
Re-engaging the emergency release mechanism:
To return to normal motor operation please turn the handle
back to its original position (i.e. 180° clockwise)
Important
• after the handle is back in normal position, slowly
move the gate manually in its travel direction until
you can hear that the gearing has re-engaged!
Then lock it again and remove the key.
With next command the motor searches the open position
(a new learning of end positions is not necessary).
4.
Emergency release in case of power failure (note for the user)
M/S
PULL T8, -T10, -T15 / Master-Slave
H
A
S
• Remove the screw protection cap and turn out the
screw (S).
• Turn the cylinder protection cap down, insert the key,
turn it approx. 90° clockwise, and pull out the cylinder.
• To re-insert the cylinder please carry out the above
steps in the reverse order
5. Exchanging the lock half cylinder PHZ
M/S
PULL T8, -T10, -T15 / Master-Slave
40
30
optionalhalf cylinder (PHZ)
with 3 keys (Art.code13300220)
