NOTE concerning cable layout
• The electric cables have to be laid in insulating sleeves which are suitable for underground usage. The insulat-
ing sleeves have to be lead into the inner of the operator housing (see picture).
• 230V cables and control lines have to be laid in separate sleeves.
• Only double-insulated cables, which are suitable for underground usage (e.g. E-YY-J) may be used.
• In case that special regulations require another type of cable, cables according to these regulations have to be
used.
2.1 Installation of the motor In Installation
(1) lockable emergency release (PHZ)
(2) gear wheel
(3) cable
(4) ground plate
(4a) slotted holes (4x) for connection on
the ground
(Z) steel gear rack

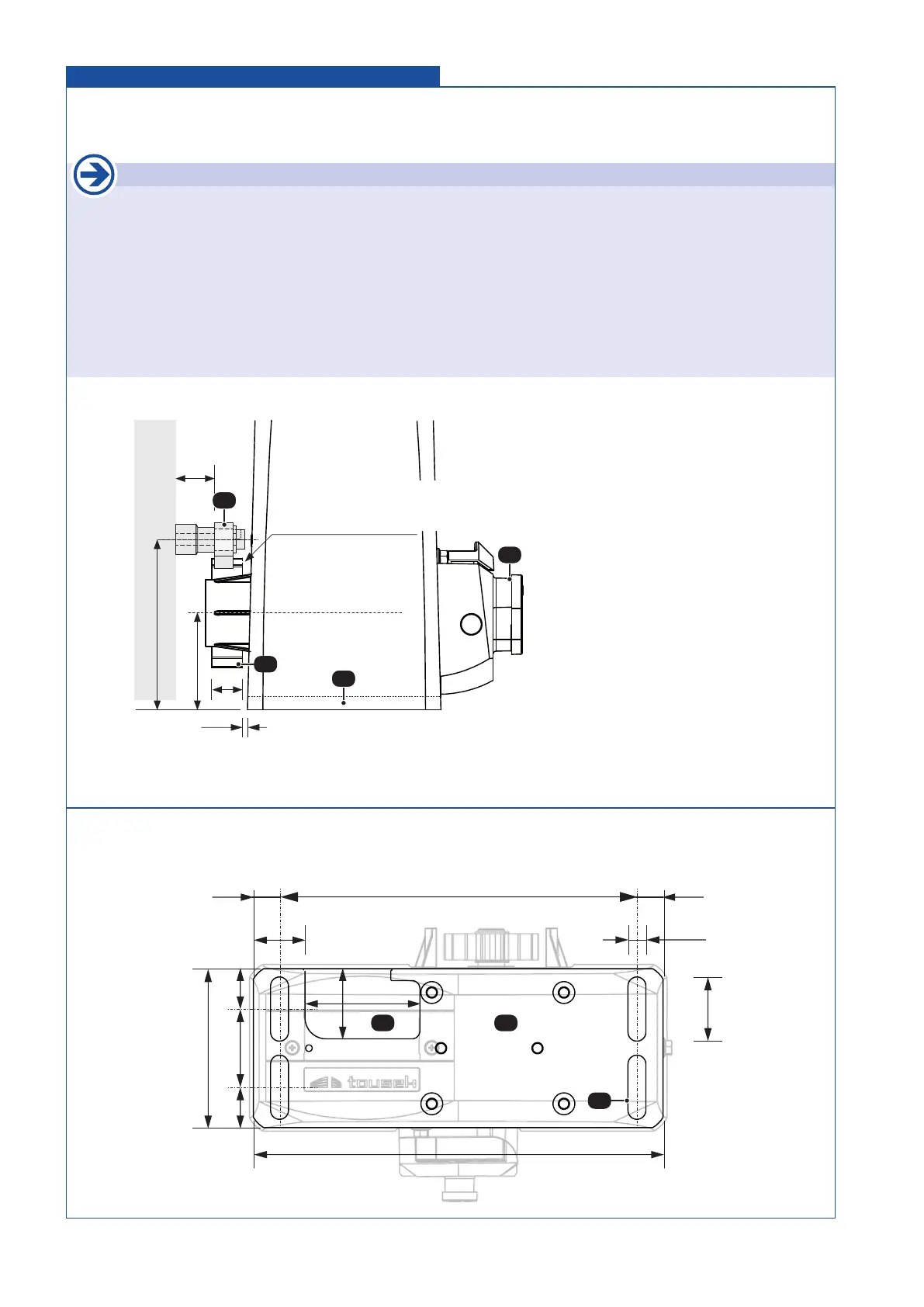

After installing the protection tubes (check cable exit of operator (3)) and having nished the concrete foundation, the
motor has to be bolted through the 4 slotted holes (4a) to the concrete foundation. It is particularly important that the
operator is mounted parallel to the gate panel, and that the measurements given in the drawing are kept.
22
121 (PULL T8)
113 (PULL T10)
117 (PULL T15)
25
2
Z
4
1
3,4
Gear wheel:
PULL T8: Z20M4, r44
PULL T10
, -T15
: Z16M4, r36
63
67 (PULL T15)
Ground plate PULL T8, -T10 Installation of the motor
• Dimensions in mm
• depth of ground plate: 8mm
43
4a
85
52
272
48,5
58,5
40
13,5
119,5
309
30,530,5
18,5 18,5
