- 82 -
Description - Here displays the description of the host and this description is unique.
Address Info - Here displays the information about the host. It can be IP or MAC.
Edit - To modify or delete an existing entry.
Click the Delete Selected button to delete the selected entries in the table.
To add a new entry, please follow the steps below.
1. Click the Add New button.
2. In the Mode field, select IP Address or MAC Address.

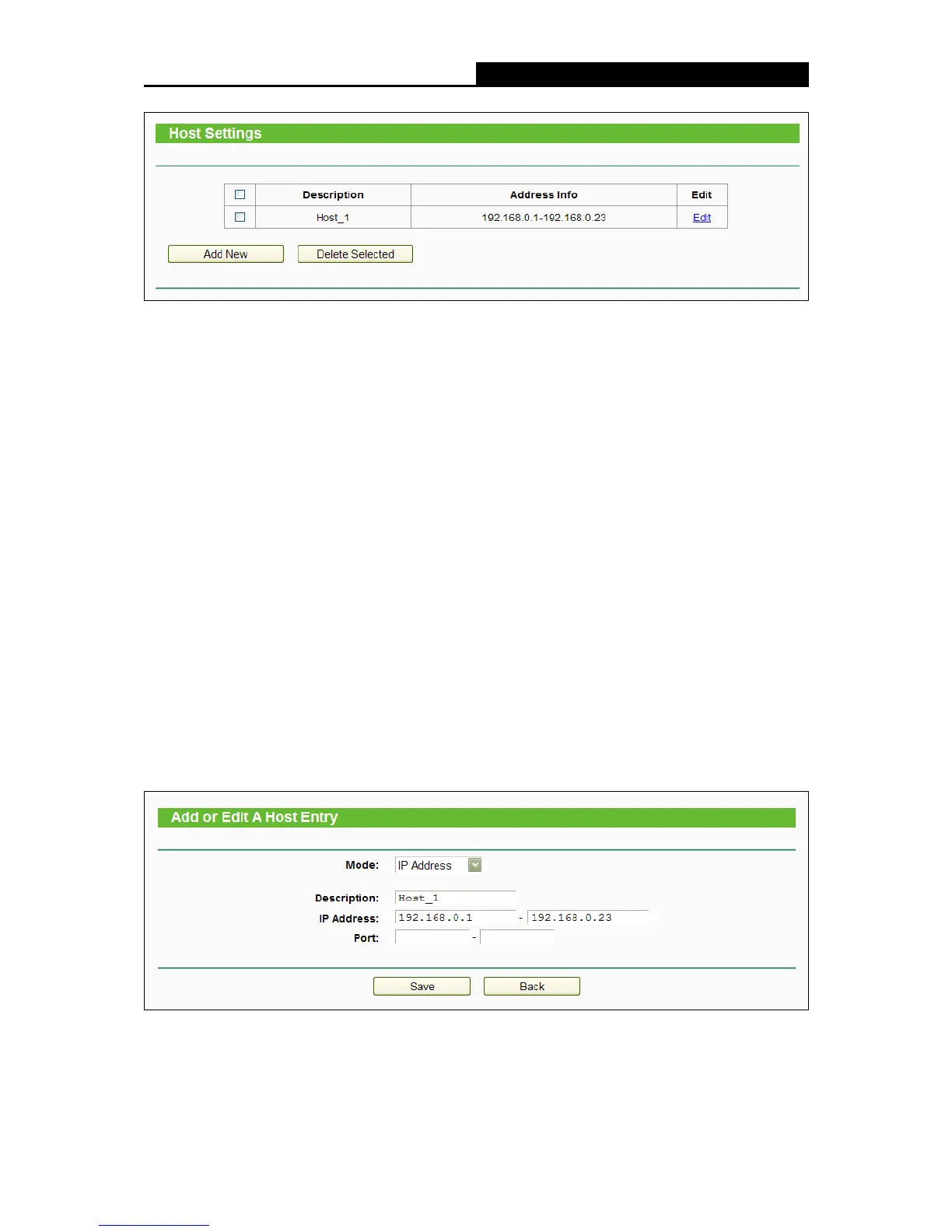

1) If you select IP Address, the screen shown is Figure 4-79.
In Description field, create a unique description for the host (e.g. Host_1).
In IP Address field, enter the IP address.
2) If you select MAC Address, the screen shown is Figure 4-80.
In Description field, create a unique description for the host (e.g. Host_1).
In MAC Address field, enter the MAC address.
3. Click the Save button to complete the settings.
