- 90 -
2. Enter the information like the screen shown below.
3. Click the Save button.
4.17 IP & MAC Binding
There are two submenus under the IP &MAC Binding menu: Binding Settings and ARP List.
Click any of them, and you will be able to scan or configure the corresponding function. The
detailed explanations for each submenu are provided below.

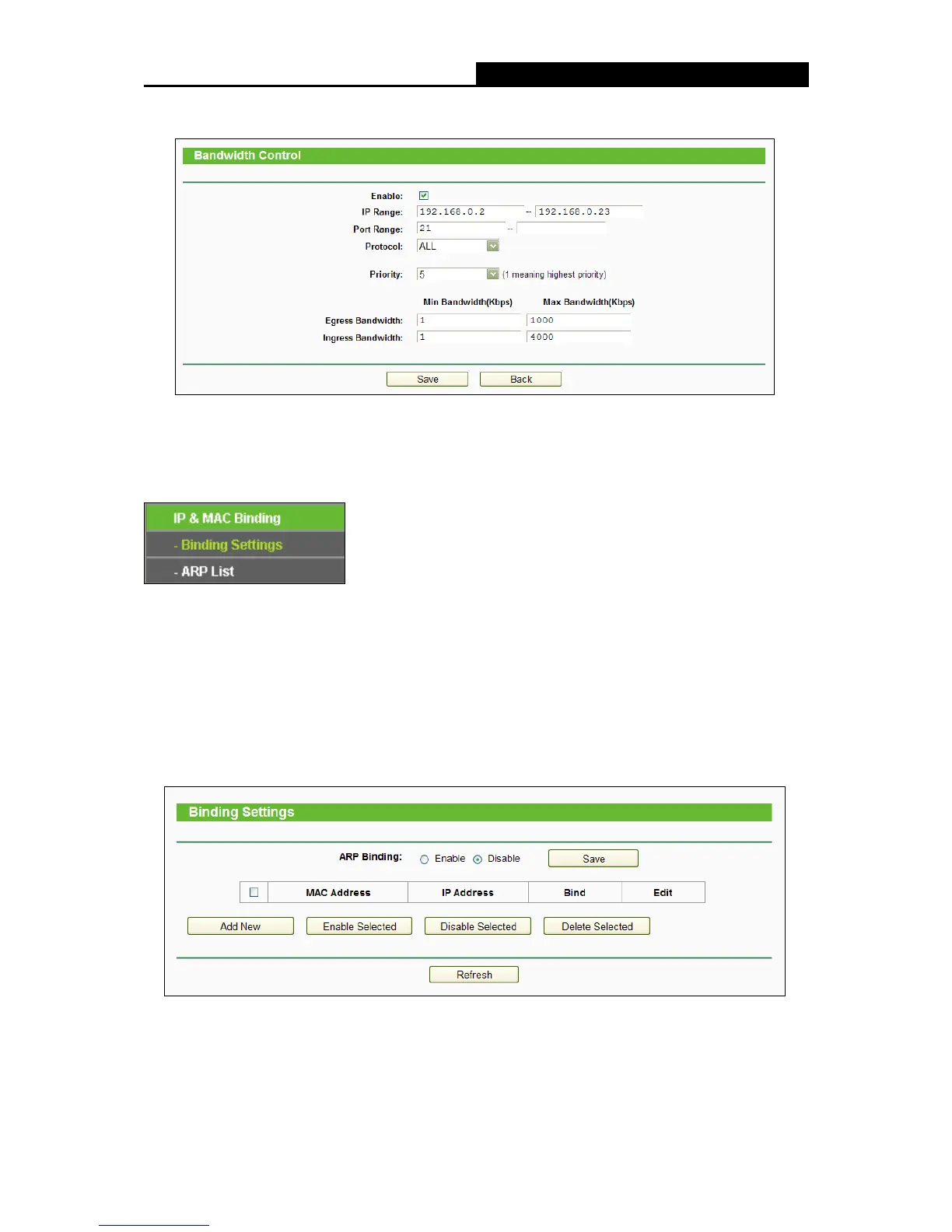

4.17.1 Binding Settings
This page displays the IP & MAC Binding Setting table; you can operate it in accord with your
desire (shown in
the following figure).
MAC Address - The MAC address of the controlled computer in the LAN.
IP Address - The assigned IP address of the controlled computer in the LAN.
Bind - Check this option to enable ARP binding for a specific device.
