Chapter 1
Get to Know Your Modem Router
1. 2. 2. Ports and Antennas

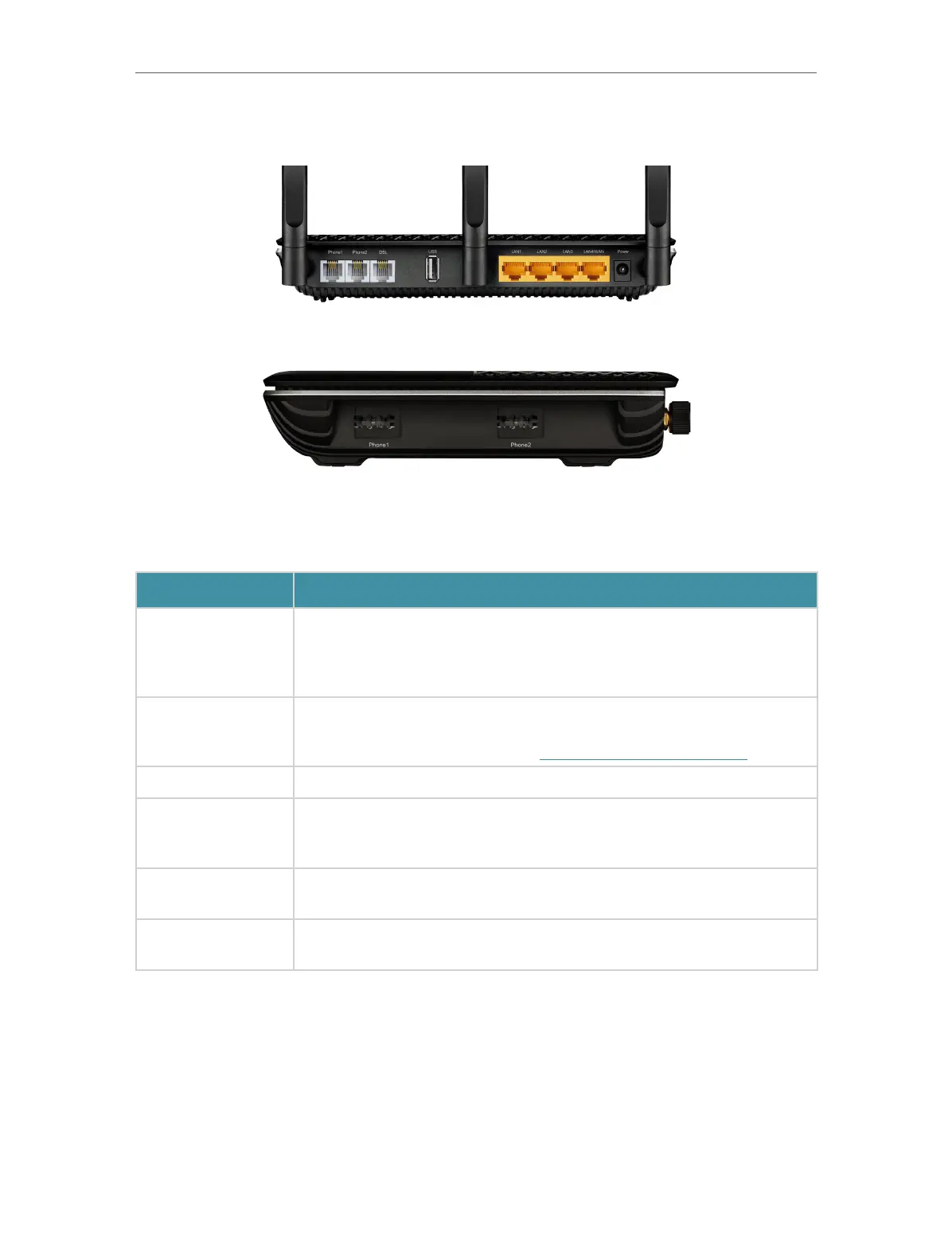

The modem router’s back panel shows the connection ports and antennas. Refer to the
following for detailed instructions.
Item
Description
Phone1/Phone2
For connecting your analog phone to the modem router. Connect your
analog phones to the TAE ports on the side panel or RJ11 ports on
the back panel. Note that you can only connect to two ports (one to a
Phone1 and the other to a Phone2) at most.
DSL
For connecting the modem router to the internet. Connect the port to
the splitter or directly connect the port to the phone jack via a phone
cable. For details, please refer to Connect Your Modem Router.
USB For connecting to a USB storage device or a USB printer.
LAN1, LAN2, LAN3,
LAN4/WAN
For connecting the modem router to your PC or other Ethernet network
devices. In wireless router mode, the LAN4/WAN port is used for
connecting to a Cable/FTTH/VDSL/ADSL device.
Power
For connecting the modem router to power socket via the provided
power adapter.
Antennas
Used for wireless operation and data transmit. Upright them for the
best Wi-Fi performance.
