Connect the Hardware
USB 3.0
LAN1
LAN2
LAN3
LAN4/WAN
PHONE1
PHONE2
1
2
DSL
POWER
POWER
ON/OFF
RESET
RJ45
N F N
RJ11
RJ11-auf-RJ45-Kabel
TAE-RJ45-
Adapter
TAE-Dose

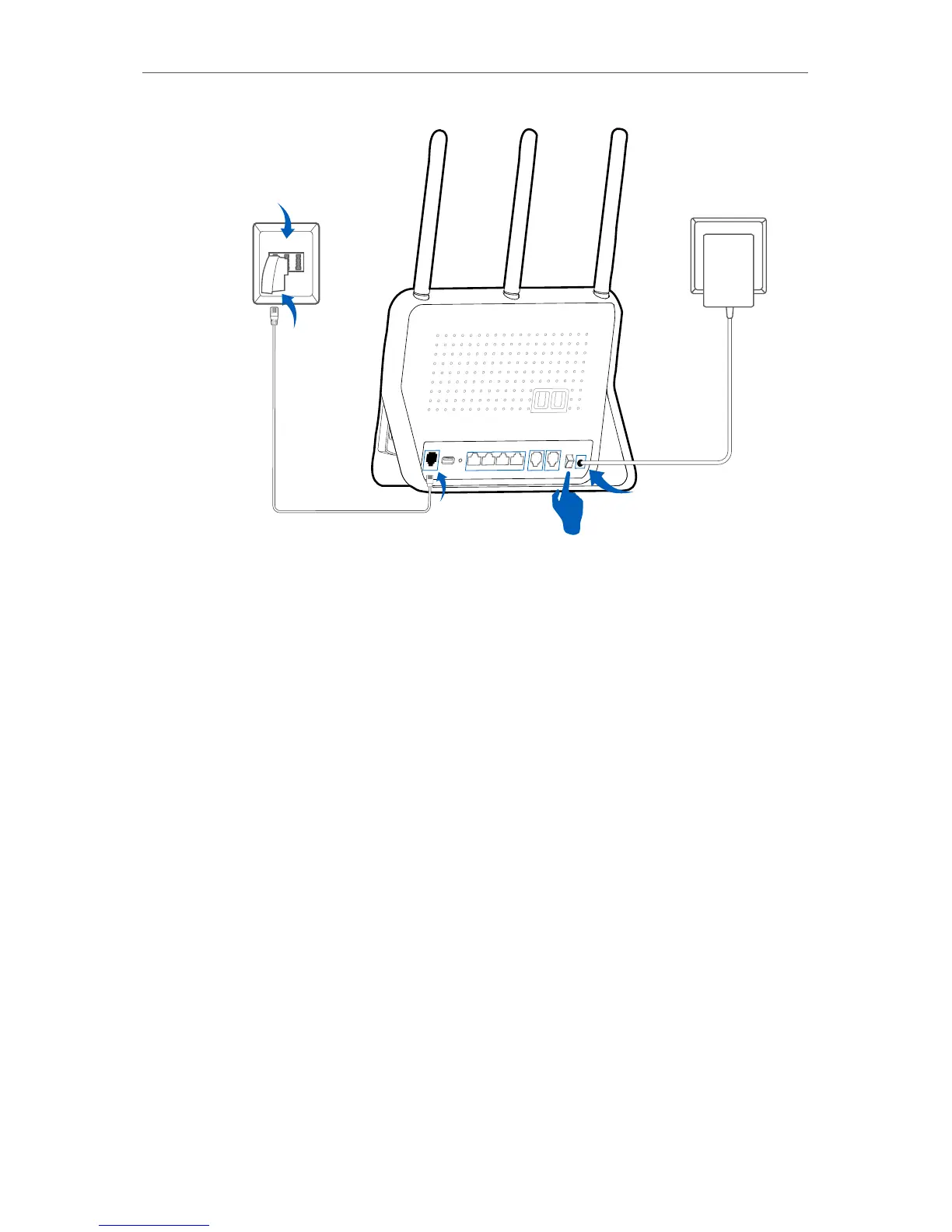

Step 1: Connect the TAE-RJ45 adapter to the modem router using an RJ11-to-RJ45
cable, and then connect the TAE-RJ45 adapter to the telephone socket.
Step 2: Plug in the power adapter supplied with the low voltage cable to the back
of your modem router. Plug the other end into a working power outlet.
2 ) DSL connection with Splitter (Standard und Universal):
