2.3 Appearance Description
2.3.1 Front Panel

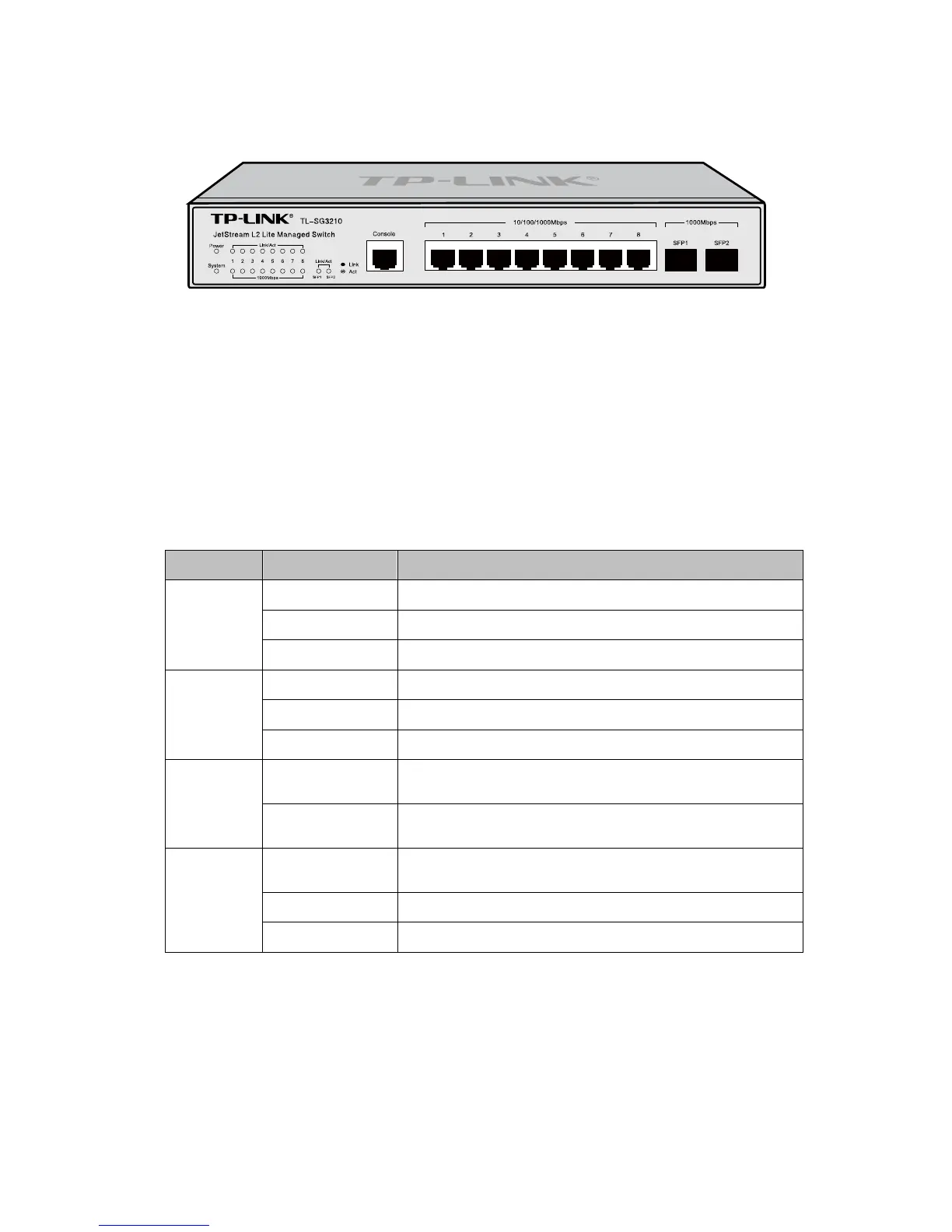

Figure 2-1 Front Panel
The following parts are located on the front panel of the Switch:
¾ 10/100/1000Mbps Ports: Designed to connect to the device with a bandwidth of 10Mbps,
100Mbps or 1000Mbps. Each has a corresponding 1000Mbps LED.
¾ SFP Ports: Designed to install the SFP module.
¾ Console Port: Designed to connect with the serial port of a computer or terminal for monitoring
and configuring the Switch.
¾ LEDs
Name Status Indication
On Power is on.
Flashing Power supply is abnormal.
Power
Off Power is off or power supply is abnormal.
On The Switch is working abnormally.
Flashing The Switch is working normally.
System
Off The Switch is working abnormally.
On
A 1000Mbps device is connected to the corresponding
port.
1000Mbps
Off
A 10/100Mbps device or no device is connected to the
corresponding port.
On
A device is connected to the corresponding port, but not
activity.
Flashing Data is being transmitted or received.
Link/Act
Off No device is connected to the corresponding port.
7
