TP-Link JetStream L2 Lite TL-SG3210 User Manual

The following entries are displayed on this screen:
¾ Global Config
NTDP: Displays the NTDP status (enabled or disabled) of the switch
globally.
NTDP Interval Time: Displays the interval to collect topology information.
NTDP Hops: Displays the hop count the switch topology collects.
NTDP Hop Delay: Displays the time between the switch receiving NTDP request
packets and the switch forwarding NTDP request packets for the
first time.
NTDP Port Delay: Displays the time between the port forwarding NTDP request
packets and its adjacent port forwarding NTDP request packets
over.
¾ Port Status
Port: Displays the port number of the switch.
NTDP: Displays NTDP status (enabled or disabled) of the current port.
13.2.3 NTDP Config
On this page you can configure NTDP globally.
Choose the menu Cluster→NTDP→NTDP Config to load the following page.

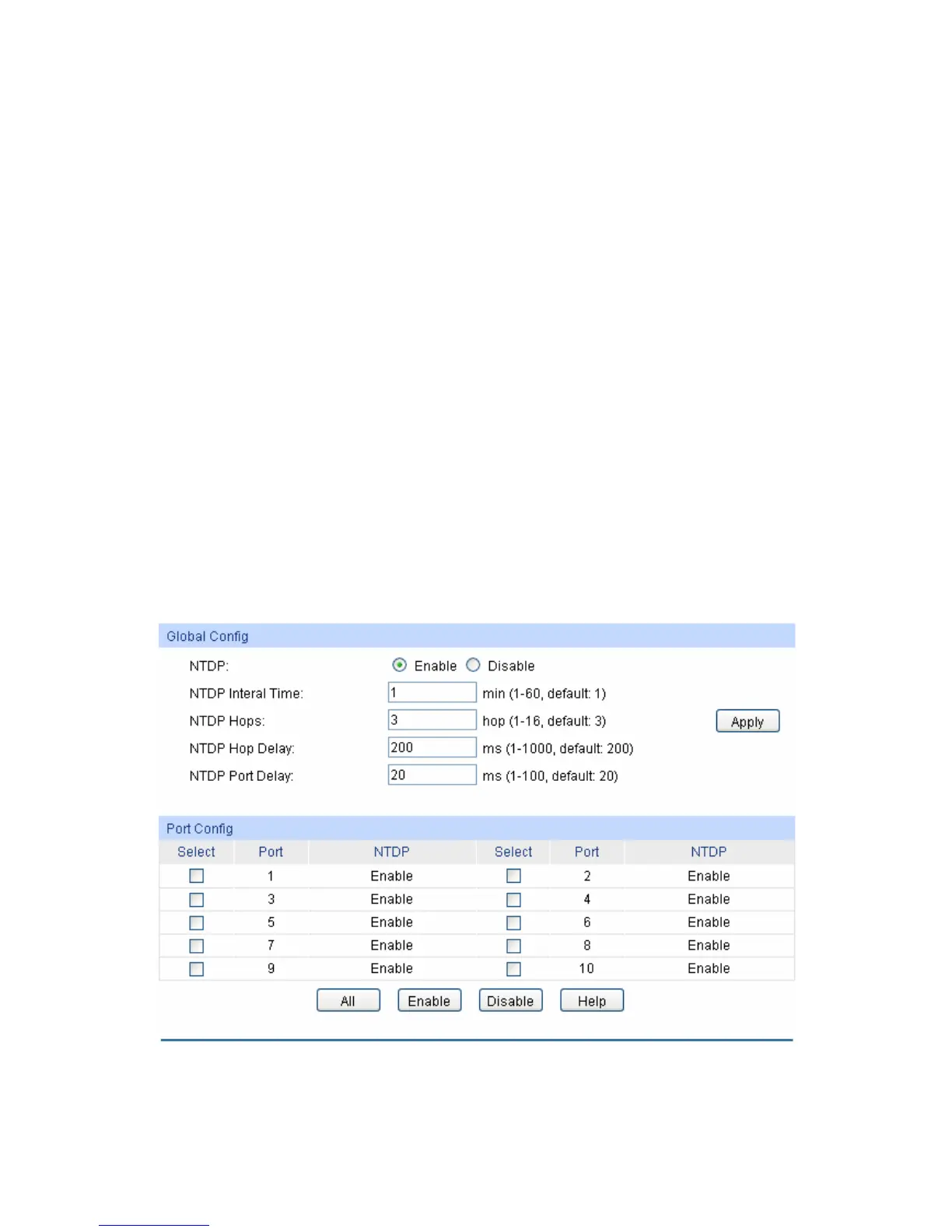

Figure 13-8 NTDP Config
The following entries are displayed on this screen:
¾ Global Config
187

TP-Link JetStream L2 Lite TL-SG3210 Specifications

General

Model	TL-SG3210
Category	Switch
Type	Managed
Switching Capacity	20Gbps
Forwarding Rate	14.88 Mpps
MAC Address Table	8K
Jumbo Frame	9KB
Certifications	CE, FCC, RoHS
Ports	8 x 10/100/1000Mbps RJ45 ports, 2 x 1G SFP slots
Standards and Protocols	IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s
VLAN	4K VLAN IDs
Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	-40°C~70°C (-40°F~158°F)
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
