TP-Link JetStream L2 Lite TL-SG3210 User Manual

failed to the 802.1X Authentication, then the switch will not
respond to the authentication request from the same
supplicant during the Quiet Period.
Retry Times: Specify the maximum transfer times of the repeated
authentication request.
Supplicant Timeout: Specify the maximum time for the switch to wait for the
response from supplicant before resending a request to
the supplicant.
Server Timeout: Specify the maximum time for the switch to wait for the
response from authentication server before resending a
request to the authentication server.
11.4.2 Port Config
On this page, you can configure the 802.1X features for the ports based on the actual network.
Choose the menu Network Security→802.1X→Port Config to load the following page.

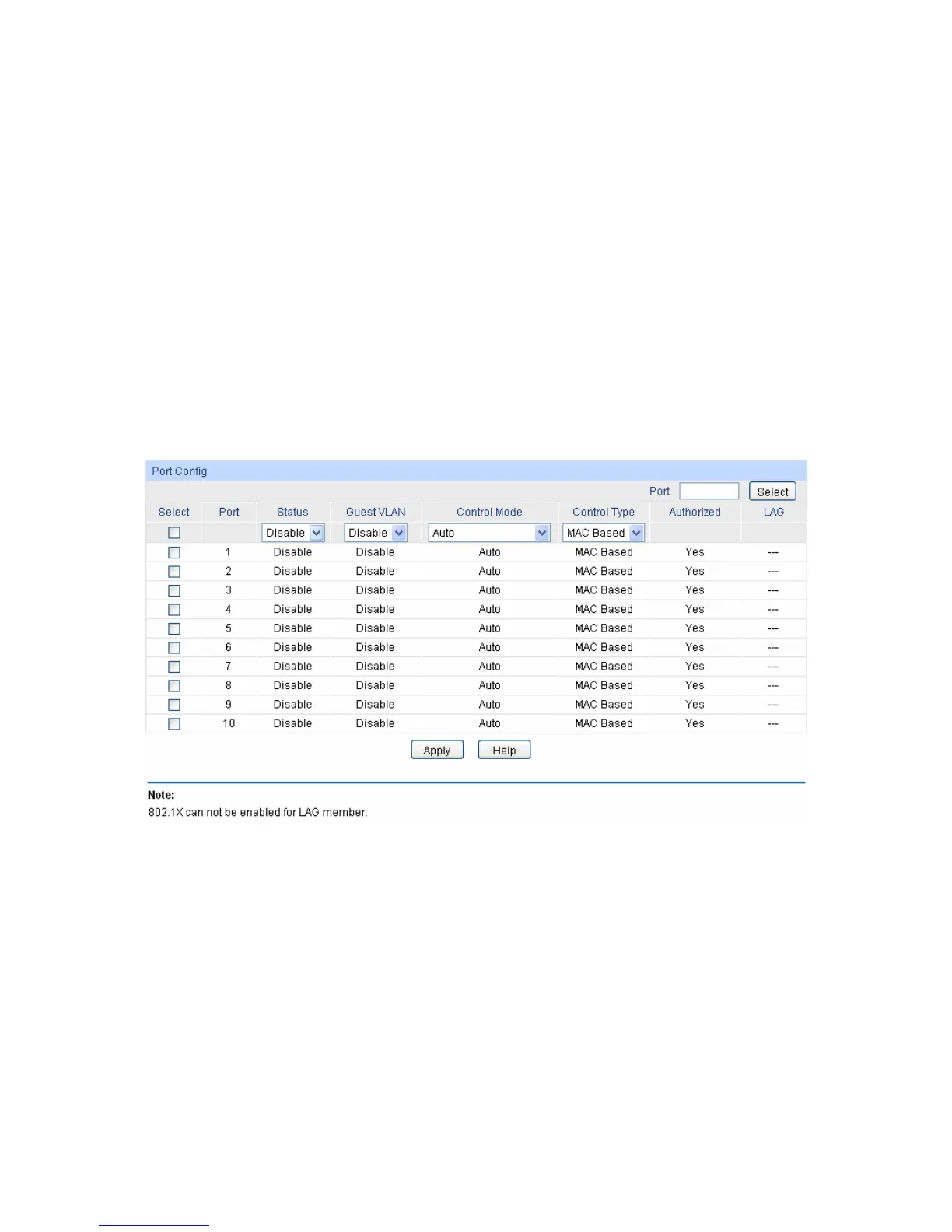

Figure 11-21 Port Config
The following entries are displayed on this screen:
¾ Port Config
Port Select: Click the Select button to quick-select the corresponding port
based on the port number you entered.
Select: Select your desired port for configuration. It is multi-optional.
Port: Displays the port number.
Status: Select Enable/Disable the 802.1X authentication feature for the
port.
Guest VLAN: Select Enable/Disable the Guest VLAN feature for the port.
161

TP-Link JetStream L2 Lite TL-SG3210 Specifications

General

Model	TL-SG3210
Category	Switch
Type	Managed
Switching Capacity	20Gbps
Forwarding Rate	14.88 Mpps
MAC Address Table	8K
Jumbo Frame	9KB
Certifications	CE, FCC, RoHS
Ports	8 x 10/100/1000Mbps RJ45 ports, 2 x 1G SFP slots
Standards and Protocols	IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s
VLAN	4K VLAN IDs
Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	-40°C~70°C (-40°F~158°F)
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
